X-NA-SV1 Series

Low vacuum micro linear actuators with built-in controllers

Series Specifications

Download Datasheet
Built-in Controller Yes
Travel Range 25.4 – 50.8 mm
Axes of Motion 1
Weight 0.156 – 0.176 kg
Accuracy (unidirectional) 40 – 55 µm
Repeatability < 1 µm (< 0.000039")
Backlash < 15 µm (< 0.000591")
Microstep Size (Default Resolution) 0.047625 µm
Default Resolution 1/64 of a step
Peak Thrust 25 N (5.6 lb)
Maximum Continuous Thrust 25 N (5.6 lb)
Maximum Speed 25 mm/s (0.984"/s)
Minimum Speed 0.000029 mm/s (0.000001"/s)
Speed Resolution 0.000029 mm/s (0.000001"/s)
Encoder Type No
Limit or Home Sensing Magnetic hall sensor
Motor Steps Per Rev 200
Motor Type Stepper (2 phase)
Motor Winding Inductance 1.5 mH/phase
Communication Interface RS-232
Communication Protocol Zaber ASCII (Default), Zaber Binary
Data Cable Connection Teflon flying leads with 4-pin M8 M/F
Power Supply 24-48 VDC
Power Plug None, use X-PIB
Maximum Current Draw 180 mA
Mechanical Drive System Precision lead screw
Mounting Interface 3/8-32 nut, 3/8" shank, or M3 screws
Operating Temperature Range 0 to 50 °C
CE Compliant Yes
Vacuum Compatible Low vacuum (10-3 Torr)

Filter By Feature

Choose one or more options below to filter the parts table.

Motor Size

08
NEMA 08

Lead Screw Options

A
Fine pitch

Travel

Options

-SV1
Low-vacuum compatible: 10-3 Torr

Part Specifications Comparison

Part NumberTravel RangeWeightAccuracy (unidirectional)
X-NA08A25-SV125.4 mm (1")0.156 kg (0.344 lb)40 µm (0.001575")
X-NA08A50-SV150.8 mm (2")0.176 kg (0.388 lb)55 µm (0.002165")

Specification Charts & Notes

Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

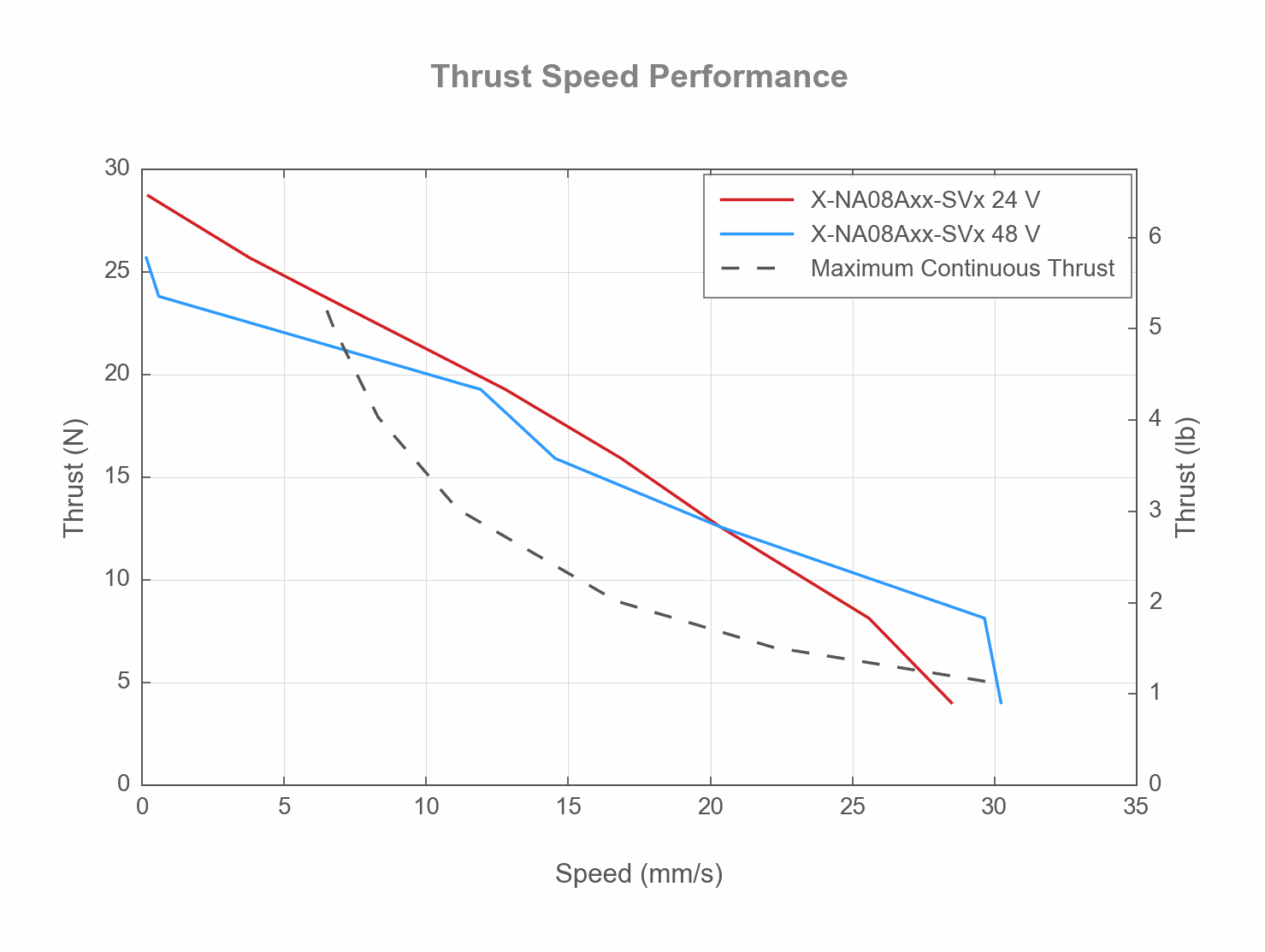

Thrust Speed Performance

Photo of the X-NA-SV Thrust Speed Performance

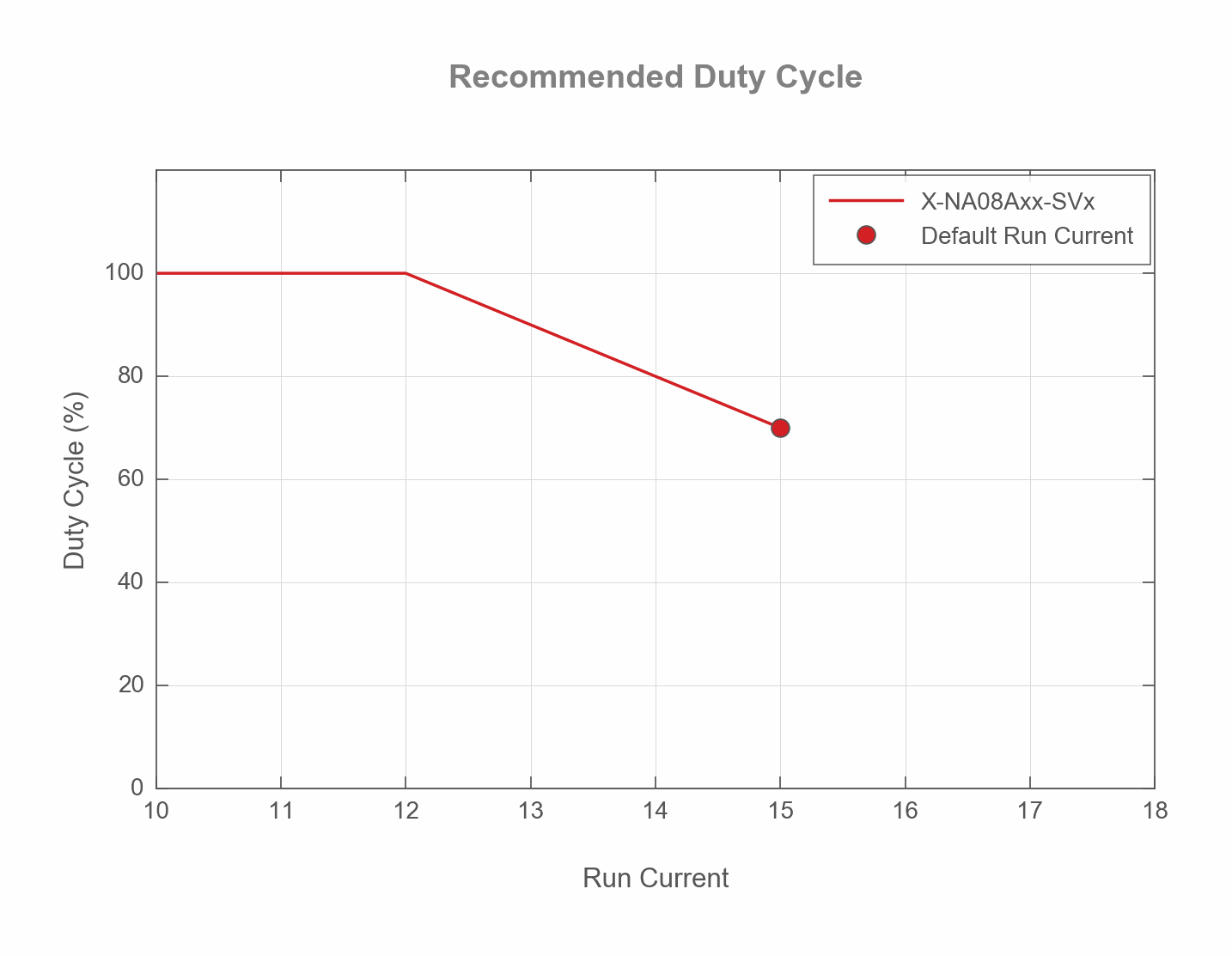

Duty Cycle

Photo of the X-NA08xx-SVx_duty_cycle_vs_run_current
