VSR-V1 Series
Low vacuum vertical stages
About This Series
For more information about the basics of a vacuum system and considerations to keep in mind when gathering requirements for your application, read our technical article, "Motion Device Design Considerations for Vacuum Applications".

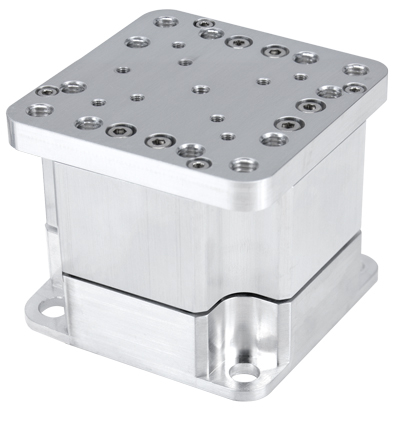

Zaber's VSR-V1 Series devices are low-vacuum compatible, computer-controlled, motorized vertical lift stages capable of moving 10 kg loads.
Like all of Zaber's products, the VSR-V1 Series is designed to be very easy to set up and operate. If you are considering a multi-axis system, with Z-axis, these lift stages make an excellent platform.
These stages are wired with a male D-sub 15 connector for plug-and-play use with our X-MCC Series stepper motor controllers. Simply cut the connector off for flying leads in vacuum and match the wire connections outside of the vacuum for an easy connection. Our handy kits include free software, and all of the accessories that you will need to get the stage running right out of the box.
- Only 7 feedthrough wires required to control these units.
- 200 step per revolution stepper motor, microstepped up to 256x to provide smooth and precise motion.
- Low vacuum compatible stepper motors rated to 10-3 Torr.
- Stage top supports metric M3 and M6 threaded holes.
- 55 mm tall (VSR20) or 85 mm tall (VSR40) when closed.
