LSM-V2 Series

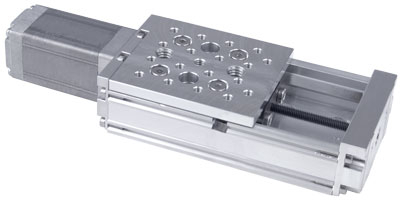

Name: LSM-V2 Miniature, High Vacuum, Motorized Linear Stages
Brand: Zaber
SKU: LSM-V2
Availability: InStock

High vacuum miniature motorized linear stages

Vacuum compatible to 10^-6 Torr
25, 50, 100, 150, 200 mm travel
Up to 100 mm/s speed and up to 35 N thrust
10 kg load capacity
Designed for use with MCC Family controllers or any 2-phase stepper motor controller
Only 7 feedthrough wires required to control these units
Custom versions available

Have a Question?

Response time promise: 1 business day

Have a Question?

Filter By Feature

Choose one or more options below to filter the parts table.

Travel

Lead Screw Options

Options

-V2: High-vacuum compatible: 10-6 Torr

Connector

T4: D-sub 15 inline connector

Part Number	Description	Lead Time	Starting Prices (USD) *
LSM025A-V2T4	25 mm Travel \| Fine Resolution \| Low Speed	7-10 Days	$5,379
LSM025B-V2T4	25 mm Travel \| Medium Resolution \| Medium Speed	7-10 Days	$5,379
LSM050A-V2T4	50 mm Travel \| Fine Resolution \| Low Speed	7-10 Days	$5,551
LSM050B-V2T4	50 mm Travel \| Medium Resolution \| Medium Speed	7-10 Days	$5,551
LSM100A-V2T4	100 mm Travel \| Fine Resolution \| Low Speed	7-10 Days	$5,891
LSM100B-V2T4	100 mm Travel \| Medium Resolution \| Medium Speed	7-10 Days	$5,891
LSM150A-V2T4	150 mm Travel \| Fine Resolution \| Low Speed	7-10 Days	$6,061
LSM150B-V2T4	150 mm Travel \| Medium Resolution \| Medium Speed	7-10 Days	$6,061
LSM200A-V2T4	200 mm Travel \| Fine Resolution \| Low Speed	7-10 Days	$6,231
LSM200B-V2T4	200 mm Travel \| Medium Resolution \| Medium Speed	7-10 Days	$6,231

Compatible Accessories

Accessory	Description	Lead Time	Price (USD) *
MC03	Motor Extension Cable, 1.5 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$27
MC03L060	Motor Extension Cable, 0.6 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$45
MC03L300	Motor Extension Cable, 3.0 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$49
MC10T3	Motor Conversion Cable, 1.5 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$33
MC10T3L060	Motor Conversion Cable, 0.6 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$39
MC10T3L300	Motor Conversion Cable, 3.0 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$51
MC10T3L450	Motor Conversion Cable, 4.5 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$59

Accessory	Description	Lead Time	Price (USD) *	Add to Cart
AB103-V	Miniature Angle Bracket, 90 Degrees, Vacuum Compatible	1-5 Days	$94
AP101-V	LSM-SV Bottom Adaptor Plate, Vacuum Compatible	1-5 Days	$83

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
