M-LSM Series
Motorized micromanipulators

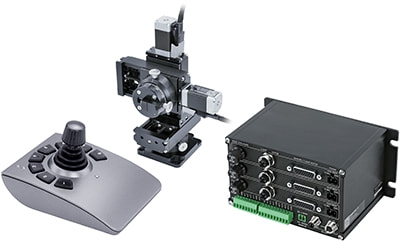

Image is representative of the M-LSM Series and may not match the selected variant.
M-LSM025A025A025ALHF-T4A
Left Hand | Base Mount
Starting Price: $9,647 *
Standard Lead Time: 5-7 Days
M-LSM025A025A025ALHF-T4A Specifications
Download Datasheet| Recommended Controller | MCC (48 V) Recommended |
| AutoDetect |  |
| Travel Range | 25.4 mm (1") |
| Axes of Motion | 3 |
| Joystick Control | Velocity Mode |
| Weight | 1.032 kg (2.275 lb) |
| Accuracy (unidirectional) | 15 µm (0.000591") |
| Repeatability | < 3 µm (< 0.000118") |
| Backlash | < 12 µm (< 0.000472") |
| Flatness of Travel | < 8 µm (< 0.000315") |
| Straightness of Travel | < 12 µm (< 0.000472") |
| Pitch Error | 0.02° (0.349 mrad) |
| Roll Error | 0.02° (0.349 mrad) |
| Yaw Error | 0.03° (0.523 mrad) |
| Microstep Size (Default Resolution) | 0.047625 µm |
| Default Resolution | 1/64 of a step |
| Stage Parallelism | < 25 µm (< 0.000984") |
| Peak Thrust | 55 N (12.3 lb) |
| Maximum Speed | 26 mm/s (1.024"/s) |
| Minimum Speed | 0.000029 mm/s (0.000001"/s) |
| Speed Resolution | 0.000029 mm/s (0.000001"/s) |
| Encoder Type |  |
| Limit or Home Sensing | Magnetic hall sensor |
| Linear Motion Per Motor Rev | 0.6096 mm (0.024") |
| Motor Steps Per Rev | 200 |
| Motor Type | Stepper (2 phase) |
| Motor Rated Current | 600 mA/phase |
| Motor Winding Resistance | 6.5 ohms/phase |
| Motor Winding Inductance | 3.5 mH/phase |
| Motor Rated Power | 6.9 watts |
| Motor Connection | D-sub 15 |
| Communication Interface | RS-232, USB 2.0 |
| Communication Protocol | Zaber ASCII (Default), Zaber Binary |
| Probe Diameter Range | 2-13 mm (0.079") |
| Probe Angle Range | 360° (6.283 rad) |
| Guide Type | Recirculating ball bearing |
| Mechanical Drive System | Precision lead screw |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Specification Charts & Notes
Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).
Thrust Speed Performance
Bearing Lifetime
