LSM Series
Miniature motorized linear stages
- 25, 50, 100, 150 and 200 mm travel
- Up to 104 mm/s speed

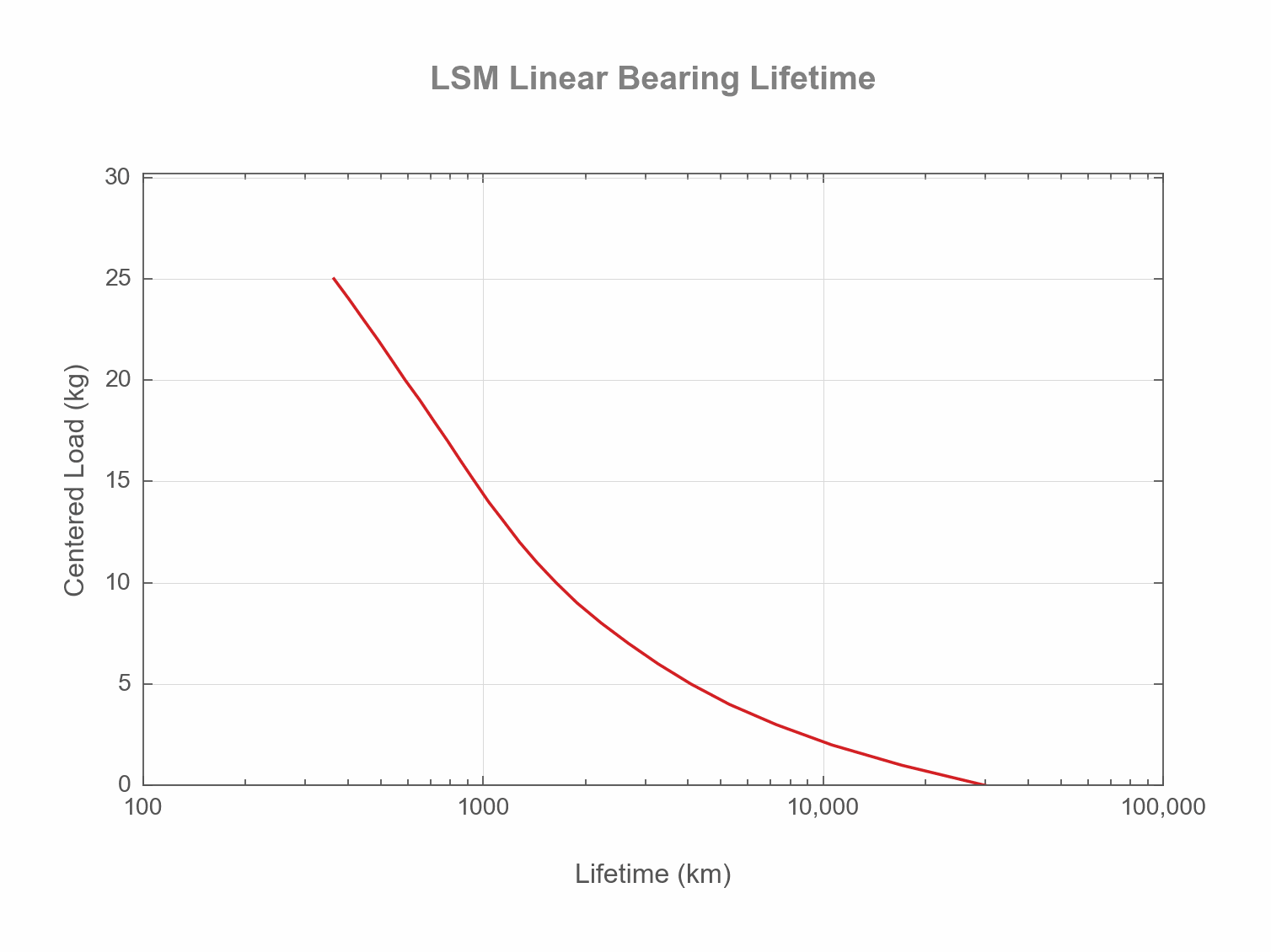

- Recirculating ball bearing design for high load (25 kg) and long lifetime
- Very low profile at only 21 mm stage height
- Can be mounted in XY and XYZ configurations
- Designed for use with MCC Family controllers or any 2-phase stepper motor controller
- With AutoDetect, Zaber controllers automatically configure settings for the connected peripheral
- Custom versions available
Part Numbering & Options
Compatible Accessories
