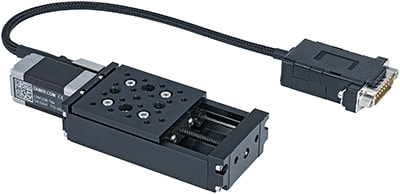

Name: LSM Miniature, Motorized Linear Stages
Brand: Zaber
SKU: LSM
Availability: InStock

Miniature motorized linear stages

25, 50, 100, 150 and 200 mm travel
Up to 104 mm/s speed
Recirculating ball bearing design for high load (25 kg) and long lifetime
Very low profile at only 21 mm stage height
Can be mounted in XY and XYZ configurations
Designed for use with MCC Family controllers or any 2-phase stepper motor controller
With AutoDetect, Zaber controllers automatically configure settings for the connected peripheral
Custom versions available

Have a Question?

Response time promise: 1 business day

Have a Question?

Filter By Feature

Choose one or more options below to filter the parts table.

Travel

Lead Screw Options

Connector

T4A: D-sub 15 inline connector with Auto Detect

Part Number	Description	Lead Time	Starting Prices (USD) *
LSM025A-T4A	25 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$1,662
LSM025B-T4A	25 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$1,662
LSM050A-T4A	50 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$1,784
LSM050B-T4A	50 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$1,784
LSM100A-T4A	100 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,025
LSM100B-T4A	100 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,025
LSM150A-T4A	150 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,147
LSM150B-T4A	150 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,147
LSM200A-T4A	200 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,268
LSM200B-T4A	200 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,268

Compatible Accessories

Accessory	Description	Lead Time	Price (USD) *
MC03	Motor Extension Cable, 1.5 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$27
MC03L060	Motor Extension Cable, 0.6 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$45
MC03L300	Motor Extension Cable, 3.0 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$49
MC10T3	Motor Conversion Cable, 1.5 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$33
MC10T3L060	Motor Conversion Cable, 0.6 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$39
MC10T3L300	Motor Conversion Cable, 3.0 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$51
MC10T3L450	Motor Conversion Cable, 4.5 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$59

Accessory	Description	Lead Time	Price (USD) *
AB103	Miniature Angle Bracket, 90 Degrees	1-5 Days	$87
AP101	LSM Bottom Adapter Plate	1-5 Days	$75
AP102C	LRM and LSM Metric Top Adapter Plate	1-5 Days	$97

* These are our direct prices in USD to customers in North America. If you are in Canada, select CAD from the currency menu at the top right of the page. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
