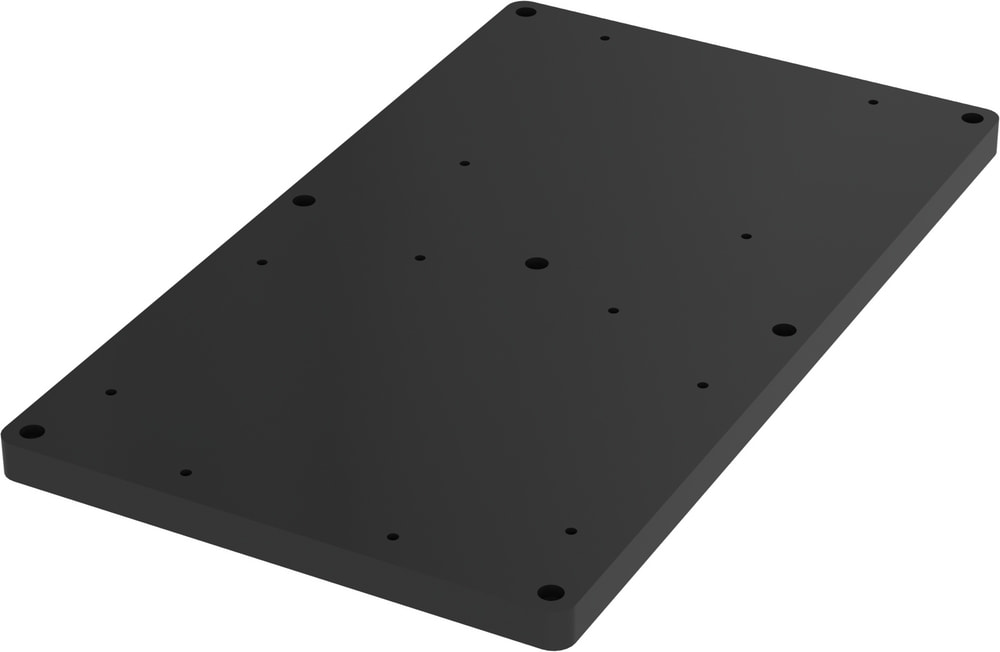

Microscope Baseplate, for MSR
This baseplate can be used with the MTR300A and any of the following XY stages: X-ASR100B120B-SE03D12, X-ADR130B100B-SAE53D12, X-ADR250B100B-SAE53D12.

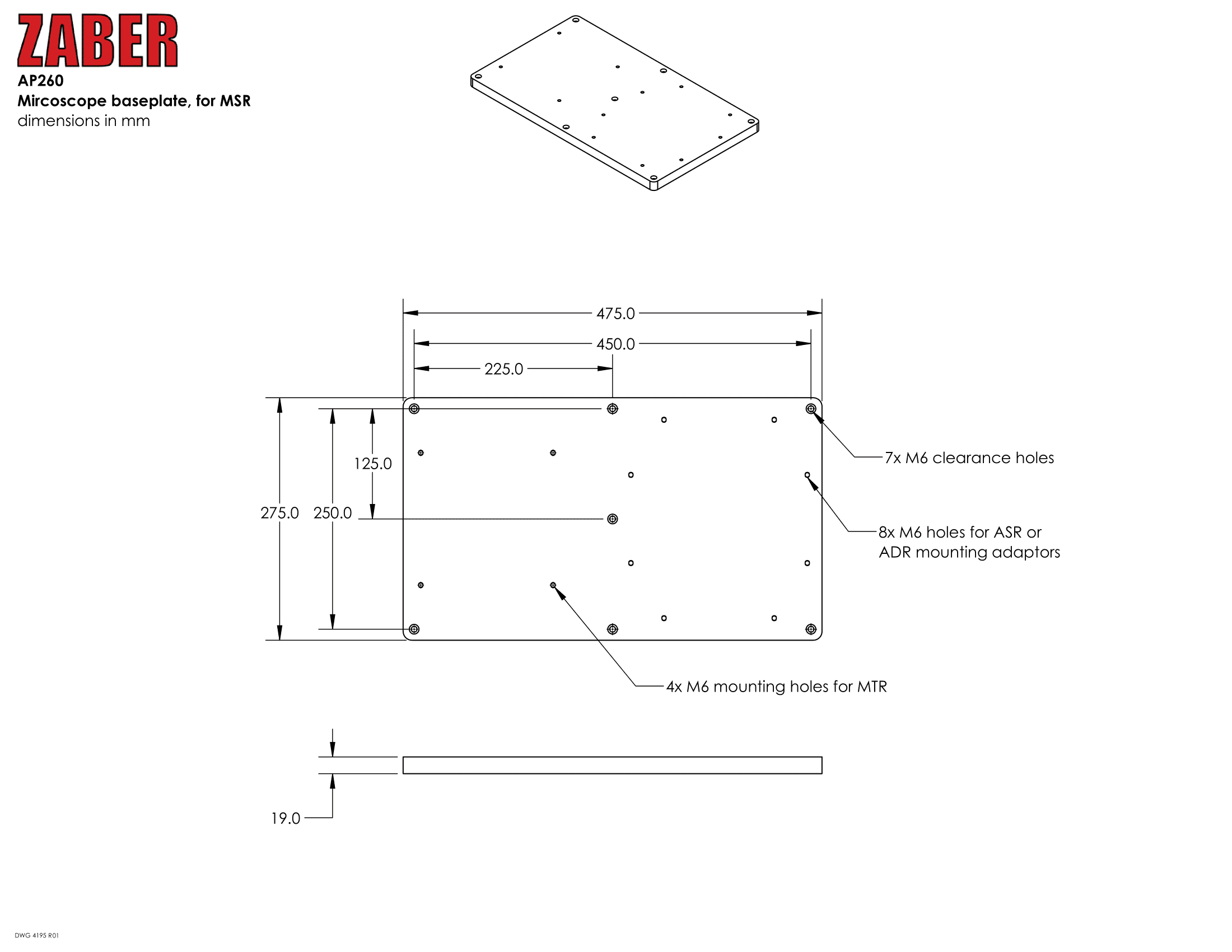

It has tapped mounting holes for these XY stages (appropriate mounting adaptors are required) and the MTR300A upright microscope tower. The baseplate also has M6 clearance holes that allow it to be mounted to a larger optical table for additional rigidity and vibration isolation. MSR upright microscopes can be configured using our online configurator tool.
