X-ADR-AE Series
Linear motor XY microscope stages with built-in controllers and linear encoders

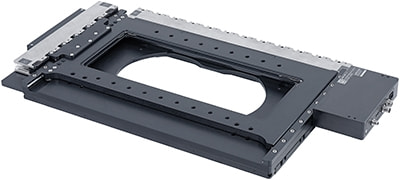

Image is representative of the X-ADR-AE Series and may not match the selected variant.
X-ADR250B100B-SAE53D12
250 mm X 100 mm Travel
Starting Price: $12,917 *
Lead Time: 4-7 Days?
X-ADR250B100B-SAE53D12 Specifications
Download Datasheet| Built-in Controller |  |
| Lower Travel Range | 250 mm (9.843") |
| Upper Travel Range | 100 mm (3.937") |
| Axes of Motion | 2 |
| LED Indicators | |
| Weight | 6.2 kg (13.669 lb) |
| Accuracy (unidirectional) | 5 µm (0.000197") |
| Repeatability | < 0.5 µm (< 0.00002") |
| Minimum Incremental Move | 50 nm |
| Pitch Error | 0.025° (0.436 mrad) |
| Roll Error | 0.01° (0.174 mrad) |
| Yaw Error | 0.01° (0.174 mrad) |
| Peak Thrust | 35 N (7.8 lb) |
| Maximum Continuous Thrust | 13 N (2.9 lb) |
| Maximum Centered Load | 30 N (6.7 lb) |
| Maximum Moment (Pitch) | 5 N⋅m (3.7 lb⋅ft) |
| Maximum Moment (Roll) | 5 N⋅m (3.69 lb⋅ft) |
| Maximum Moment (Yaw) | 5 N⋅m (3.69 lb⋅ft) |
| Maximum Speed | 750 mm/s (29.528"/s) |
| Minimum Speed | 0.61 nm/s |
| Speed Resolution | 0.61 nm/s |
| Typical Velocity Stability | ± 0.12% at 100 mm/s with a 0.55 kg payload |
| Encoder Type | Linear analog encoder |
| Encoder Count Size | 1 nm |
| Limit or Home Sensing | Optical Index Mark |
| Motor Type | Moving Magnet Track Linear Motor |
| Force Constant | 5.5 N/A (1.2 lbs/A) |
| Communication Interface | RS-232 |
| Communication Protocol | Zaber ASCII (Default) |
| Data Cable Connection | Locking 4-pin M8 |
| Power Supply | 24-48 VDC |
| Maximum Current Draw | 2300 mA |
| Guide Type | Crossed-Roller Bearing |
| Mounting Interface | Separate mounting adaptors available |
| Lower Moving Mass | 3.9 kg (8.58 lbs) |
| Upper Moving Mass | 1.5 kg (3.3 lbs) |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Specification Charts & Notes
Typical Accuracy
Minimum Incremental Move
Error
