DMA - XY Stage Configurator
Representative Image
Accessories
$361XY stage mounting plate
1 x AP279$96
Power supply
1 x PS15S-48V65$200
Inter-axis data cable
1 x X-DC01-F45-M45$19
Stage to PC data cable
1 x X-USBDC$46
Total Price$8,161

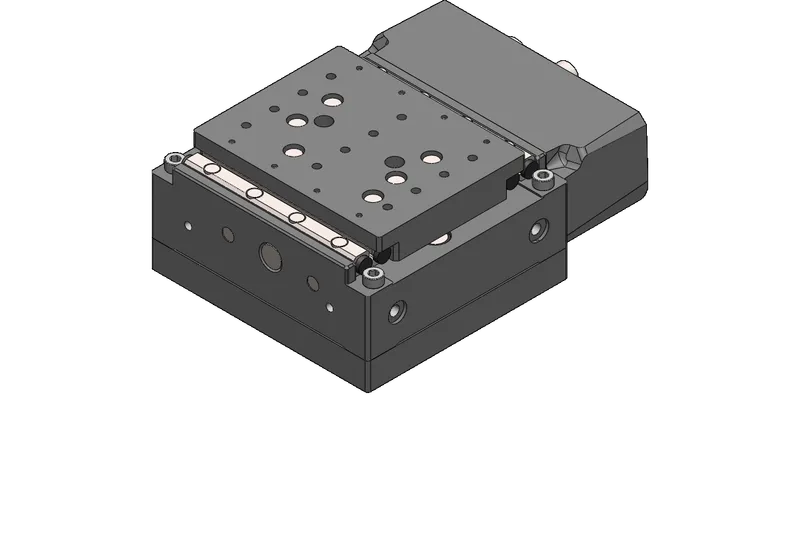

The DMA XY Stage is a 2-axis motion system built from two DMA linear stages. The system can be driven with independent controllers built-in to each motor, or coordinated with a MCC controller. Stages are packaged individually and basic assembly is required.
If Integrated Controller is selected, the XY stage will use X-DMA-AE stages with built-in controllers. These can be controlled independently for applications where the final XY position matters but the path taken does not. Switching to an X-MCC controller will keep the same motor power, but allow you to command smooth, synchronized movements with tools such as PVT path planning. The X-MCC is also wired for E-stop compatibility and has digital and analog I/O for interfacing with external hardware.
The minimum number of axes required for coordinated motion is 2. Select an X-MCC3 or X-MCC4 if you need to control additional axes or want to coordinate motion between the stages and additional devices.
Add interpolated RS-422 encoder outputs to provide precise, real-time position feedback that can be used to synchronize motion devices with external systems like cameras, lasers, or data acquisition hardware. See our article for details
Add an AP279 adaptor plate to mount the stages to a standard M6 or 1/4"-20 breadboard
X-JOY3 controls up to three axes, each with programmable sensitivity and velocity profile, and it has 8 programmable keys for functions like storing and recalling positions.
