DMA - XYZ Stage Configurator

Name: DMA - XYZ Stage Configurator
Brand: Zaber
SKU: XYZ-DMA
Availability: InStock

Total: $12,960

Representative Image

Repeatability

< 0.15 µm

Maximum Speed

365 mm/s

Maximum Continuous Thrust

5 N

Load Capacity

1.0 kg

Lead time

1-5 Days

XYZ Components

$12,300

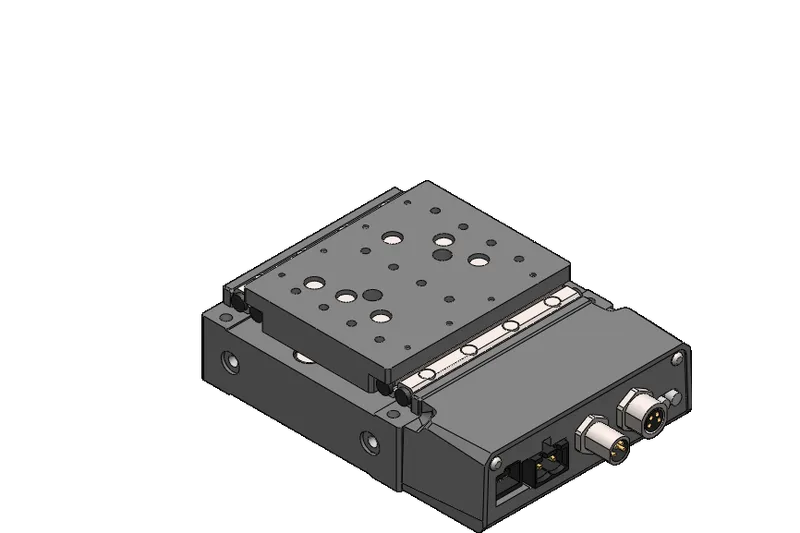

X-axis

1 x X-DMA10A-AE55T17$3,900

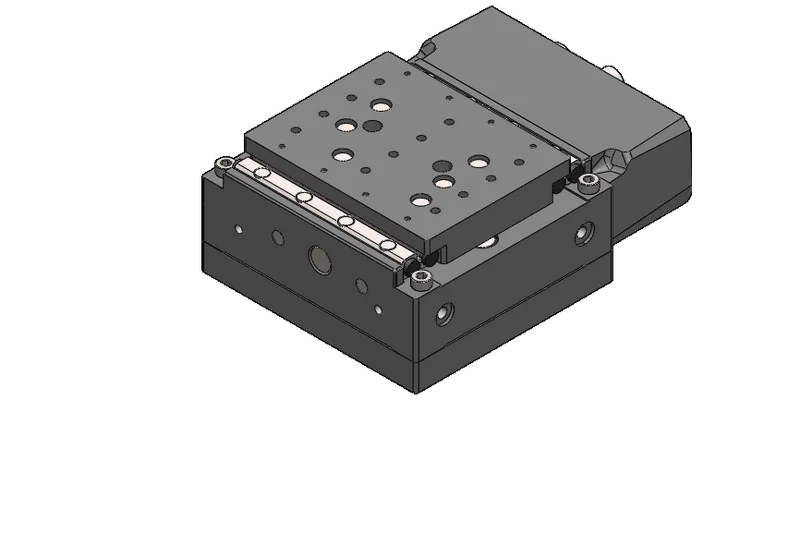

Y-axis

1 x X-DMA10A-AE55T17$3,900

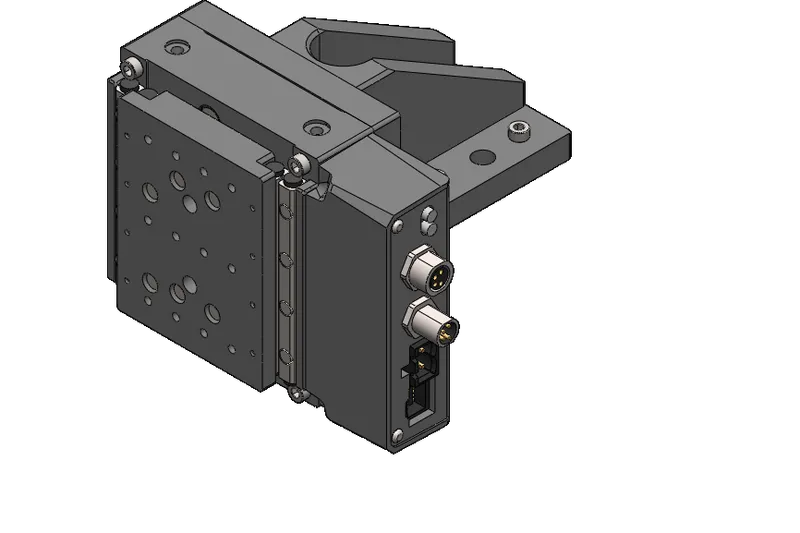

Z-axis

1 x X-DMA10A-AE55ZJ2T17$4,500

Accessories

$660

Z-axis angle bracket

1 x AB280$280

XY stage mounting plate

1 x AP279$96

Power supply

1 x PS15S-48V65$200

Inter-axis data cable

2 x X-DC01-F45-M45$38

Stage to PC data cable

1 x X-USBDC$46

Total Price$12,960

The DMA XYZ Stage is a 3-axis motion system built from three DMA linear stages. The vertical axis features a user adjustable magnetic counterbalance to compensate for the weight of the payload. The system can be driven with independent controllers built-in to each motor, or coordinated with a MCC controller. Stages are packaged individually and basic assembly is required.

Motion controller type

If Integrated Controller is selected, the XYZ stage will use X-DMA-AE stages with built-in controllers. These can be controlled independently for applications where the final XYZ position matters but the path taken does not. Switching to an X-MCC controller will keep the same motor power, but allow you to command smooth, synchronized movements with tools such as PVT path planning. The X-MCC is also wired for E-stop compatibility and has digital and analog I/O for interfacing with external hardware.

The minimum number of axes required for coordinated motion is 3. Select an X-MCC4 if you need to control additional axes or want to coordinate motion between the stages and additional devices.

Add encoder outputs

Add interpolated RS-422 encoder outputs to provide precise, real-time position feedback that can be used to synchronize motion devices with external systems like cameras, lasers, or data acquisition hardware. See our article for details

Add breadboard adaptor

Add an AP279 adaptor plate to mount the stages to a standard M6 or 1/4"-20 breadboard

Add an E-Stop

ES01 provides a push-button stop to all axes connected to the X-MCC controller simultaneously, without removing power from the controller.

Add a programmable joystick

X-JOY3 controls up to three axes, each with programmable sensitivity and velocity profile, and it has 8 programmable keys for functions like storing and recalling positions.

Have a Question? Need a Customization?

Response time promise: 1 business day

Have a Question? Need a Customization?

Learn with Zaber

DMA - XYZ Stage Configurator Articles All Articles

Built-in Controller
Travel Range	10 mm (0.394")
Manual Control
Axes of Motion	1
LED Indicators
Weight	0.49 kg (1.08 lb)
Accuracy (unidirectional)	8 µm (0.000315")
Repeatability	< 0.05 µm (< 0.000002")
Minimum Incremental Move	10 nm
Flatness of Travel	< 3 µm (< 0.000118")
Straightness of Travel	< 3 µm (< 0.000118")
Pitch Error	0.01° (0.174 mrad)
Roll Error	0.005° (0.087 mrad)
Yaw Error	0.005° (0.087 mrad)
Peak Thrust	15 N (3.4 lb)
Maximum Continuous Thrust	5 N (1.1 lb)
Maximum Centered Load	50 N (11.2 lb)
Maximum Moment (Pitch)	3 N⋅m (2.2 lb⋅ft)
Maximum Moment (Roll)	10 N⋅m (7.38 lb⋅ft)
Maximum Moment (Yaw)	3 N⋅m (2.214 lb⋅ft)
Stiffness (Pitch)	180 N⋅m/° (97 µrad/N⋅m)
Stiffness (Roll)	320 N⋅m/° (55 µrad/N⋅m)
Stiffness (Yaw)	135 N⋅m/° (129 µrad/N⋅m)
Maximum Acceleration	20 m/s² (2.04 g)
Maximum Speed	365 mm/s (14.37"/s)
Minimum Speed	0.61 nm/s
Speed Resolution	0.61 nm/s
Typical Move and Settle Time (100 nm move, < 15 nm, 250 g load)	< 15 ms
Typical Move and Settle Time (250 nm move, < 15 nm, 250 g load)	< 15 ms
Encoder Type	Linear analog encoder
Encoder Count Size	1 nm
Limit or Home Sensing	Optical Index Mark
Encoder Output Type
Motor Type	Moving Magnet Voice Coil
Force Constant	2.26 N/A (0.5 lbs/A)
Communication Interface	RS-232
Communication Protocol	Zaber ASCII (Default)
Data Cable Connection	Locking 4-pin M8
Power Supply	48 VDC
Power Plug	2-pin screw terminal
Maximum Current Draw	3750 mA
Digital Input	2
Digital Output	1
Analog Input	1
Guide Type	Anti-Creep Crossed-Roller Bearing
Mounting Interface	M3 and M6 threaded holes
Moving Mass	0.17 kg (0.374 lbs)
Operating Temperature Range	0-50 °C
CE Compliant
Vacuum Compatible

Built-in Controller
Travel Range	10 mm (0.394")
Manual Control
Axes of Motion	1
LED Indicators
Weight	0.53 kg (1.168 lb)
Accuracy (unidirectional)	8 µm (0.000315")
Repeatability	< 0.05 µm (< 0.000002")
Minimum Incremental Move	10 nm
Flatness of Travel	< 3 µm (< 0.000118")
Straightness of Travel	< 3 µm (< 0.000118")
Pitch Error	0.01° (0.174 mrad)
Roll Error	0.005° (0.087 mrad)
Yaw Error	0.005° (0.087 mrad)
Peak Thrust	15 N (3.4 lb)
Maximum Continuous Thrust	5 N (1.1 lb)
Maximum Moment (Pitch)	3 N⋅m (2.2 lb⋅ft)
Maximum Moment (Roll)	10 N⋅m (7.38 lb⋅ft)
Maximum Moment (Yaw)	3 N⋅m (2.214 lb⋅ft)
Stiffness (Pitch)	180 N⋅m/° (97 µrad/N⋅m)
Stiffness (Roll)	320 N⋅m/° (55 µrad/N⋅m)
Stiffness (Yaw)	135 N⋅m/° (129 µrad/N⋅m)
Counterbalance Payload Range	2.5-10 N (0.6-2.2 lb)
Maximum Acceleration	20 m/s² (2.04 g)
Maximum Speed	365 mm/s (14.37"/s)
Minimum Speed	0.61 nm/s
Speed Resolution	0.61 nm/s
Typical Move and Settle Time (100 nm move, < 15 nm, 250 g load)	< 15 ms
Typical Move and Settle Time (250 nm move, < 15 nm, 250 g load)	< 15 ms
Encoder Type	Linear analog encoder
Encoder Count Size	1 nm
Limit or Home Sensing	Optical Index Mark
Encoder Output Type
Motor Type	Moving Magnet Voice Coil
Force Constant	2.26 N/A (0.5 lbs/A)
Communication Interface	RS-232
Communication Protocol	Zaber ASCII (Default)
Data Cable Connection	Locking 4-pin M8
Power Supply	48 VDC
Power Plug	2-pin screw terminal
Maximum Current Draw	3750 mA
Digital Input	2
Digital Output	1
Analog Input	1
Counterbalance Type	Adjustable Magnetic
Guide Type	Anti-Creep Crossed-Roller Bearing
Mounting Interface	M3 and M6 threaded holes
Moving Mass	0.175 kg (0.385 lbs)
Operating Temperature Range	0-50 °C
CE Compliant
Vacuum Compatible
