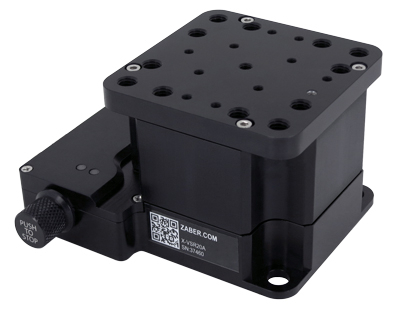

X-VSR Series
Vertical lift stages with built-in controllers
- 20 mm or 40 mm travel
- Up to 48 mm/s speed and up to 200 N thrust
- 10 kg load capacity
- 55 or 85 mm retracted height
- Built-in controller; daisy-chains with other Zaber products
Have a Question?
Part Numbering & Options
| Part Number | Description | Lead Time | Starting Prices (USD) * | Add to Cart | Add To Compare |
|---|---|---|---|---|---|
| X-VSR20A | 20 mm Travel | 1-5 Days | $2,692 | ||
| X-VSR40A | 40 mm Travel | 1-5 Days | $3,015 |
Compatible Accessories
- All VSRs share mounting patterns and can be screwed together directly.
- Mounting options for stacking XY, theta, or tilt systems with Zaber stages are available here VSR Adaptor Plates.
- Mounting options using angle bracket for L-shaped configurations with Zaber stages are available here VSR Angle Brackets.
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| AB104 | Angle Bracket, 90 Degrees, Large, Metric | 1-5 Days | $194 | |
| AP102C | LRM and LSM Metric Top Adaptor Plate | 1-5 Days | $97 | |
| AP257 | Adaptor Plate, M6 Grid to Metric Mounting | 1-5 days | $162 |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
