DMA-AEZ Series

High precision vertical stages

OVERVIEWFEATURESSPECIFICATIONSSUPPORT & DRAWINGS (PNG, STEP, CAD)
Photo of the DMA-AEZ

Image is representative of the DMA-AEZ Series and may not match the selected variant.

DMA10A-AE55ZJ2T10A

Direct Drive Vertical Stage | 10 mm Travel | Medium Force Adjustable Counterbalance

Starting Price: $3,759

Standard Lead Time: 1-5 Days

Purchase Options

Add MC10 accessory  (+ $59)

Controller: MCC (48 V) Recommended

  • 1 x MC10: Motor Extension Cable, 1.5 m, MCC Family Controllers and T10A Peripherals

Total Price

$3,759 (USD) *

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.

Download Datasheet

DMA10A-AE55ZJ2T10A Specifications

Built-in ControllerNo Icon
Recommended Controller MCC (48 V) Recommended
AutoDetectYes Icon
Travel Range 10 mm (0.394")
Accuracy (unidirectional) 8 µm (0.000315")
Repeatability < 0.05 µm (< 0.000002")
Minimum Incremental Move 10 nm
Maximum Acceleration 20 m/s2 (2.04 g)
Maximum Speed 365 mm/s (14.370"/s)
Minimum Speed 0.61 nm/s
Speed Resolution 0.61 nm/s
Encoder Type Linear analog encoder
Encoder Count Size 1 nm
Peak Thrust 15 N (3.4 lb)
Maximum Continuous Thrust 5 N (1.1 lb)
Maximum Moment (Pitch) 300 N⋅cm (424.8 oz⋅in)
Maximum Moment (Roll) 1000 N⋅cm (1416.1 oz⋅in)
Maximum Moment (Yaw) 300 N⋅cm (424.8 oz⋅in)
Vertical Runout < 3 µm (< 0.000118")
Horizontal Runout < 3 µm (< 0.000118")
Pitch 0.01° (0.174 mrad)
Roll 0.005° (0.087 mrad)
Yaw 0.005° (0.087 mrad)
Stiffness in Pitch 180 N⋅m/° (97 µrad/N⋅m)
Stiffness in Roll 320 N⋅m/° (55 µrad/N⋅m)
Stiffness in Yaw 135 N⋅m/° (129 µrad/N⋅m)
Counterbalance Type Adjustable Magnetic
Counterbalance Payload Range 2.5-10 N (0.6-2.2 lb)
Motor Type Moving Magnet Voice Coil
Motor Rated Current 2800 mA/phase

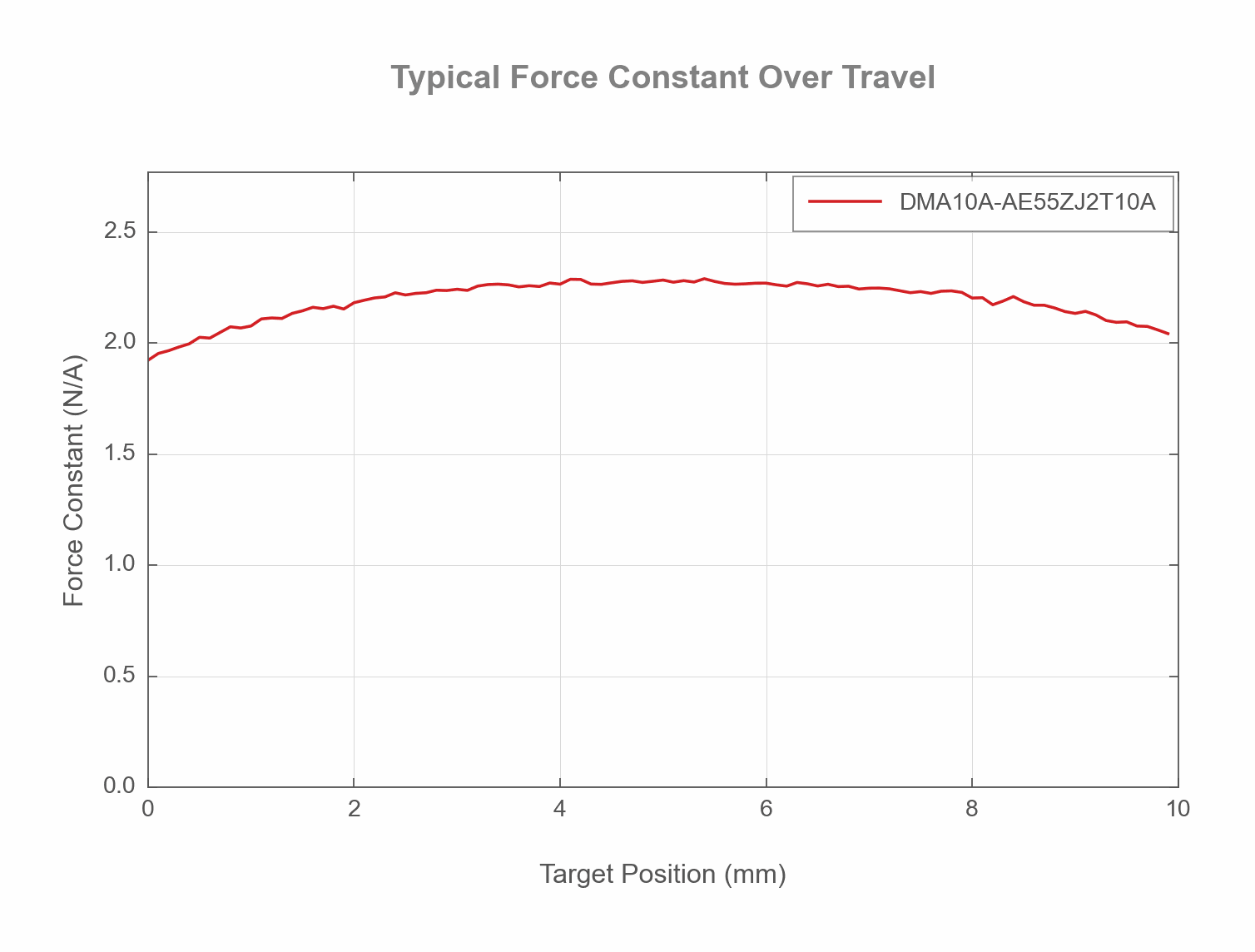

Force Constant 2.26 N/A (0.5 lbs/A)
Motor Winding Resistance 1.67 ohms/phase
Inductance 0.28 mH/phase
Motor Connection D-sub 26
Guide Type Anti-Creep Crossed-Roller Bearing
Limit or Home Sensing Optical Index Mark
Axes of Motion 1
Mounting Interface M3 and M6 threaded holes
Moving Mass 0.175 kg (0.385 lbs)
Operating Temperature Range 0-50 °C
CE CompliantYes Icon
Vacuum CompatibleNo Icon
Typical Move and Settle Time (100 nm move, < 15 nm, 250 g load) < 15 ms
Typical Move and Settle Time (250 nm move, < 15 nm, 250 g load) < 15 ms
Weight 0.52 kg (1.146 lb)

Specification Charts & Notes

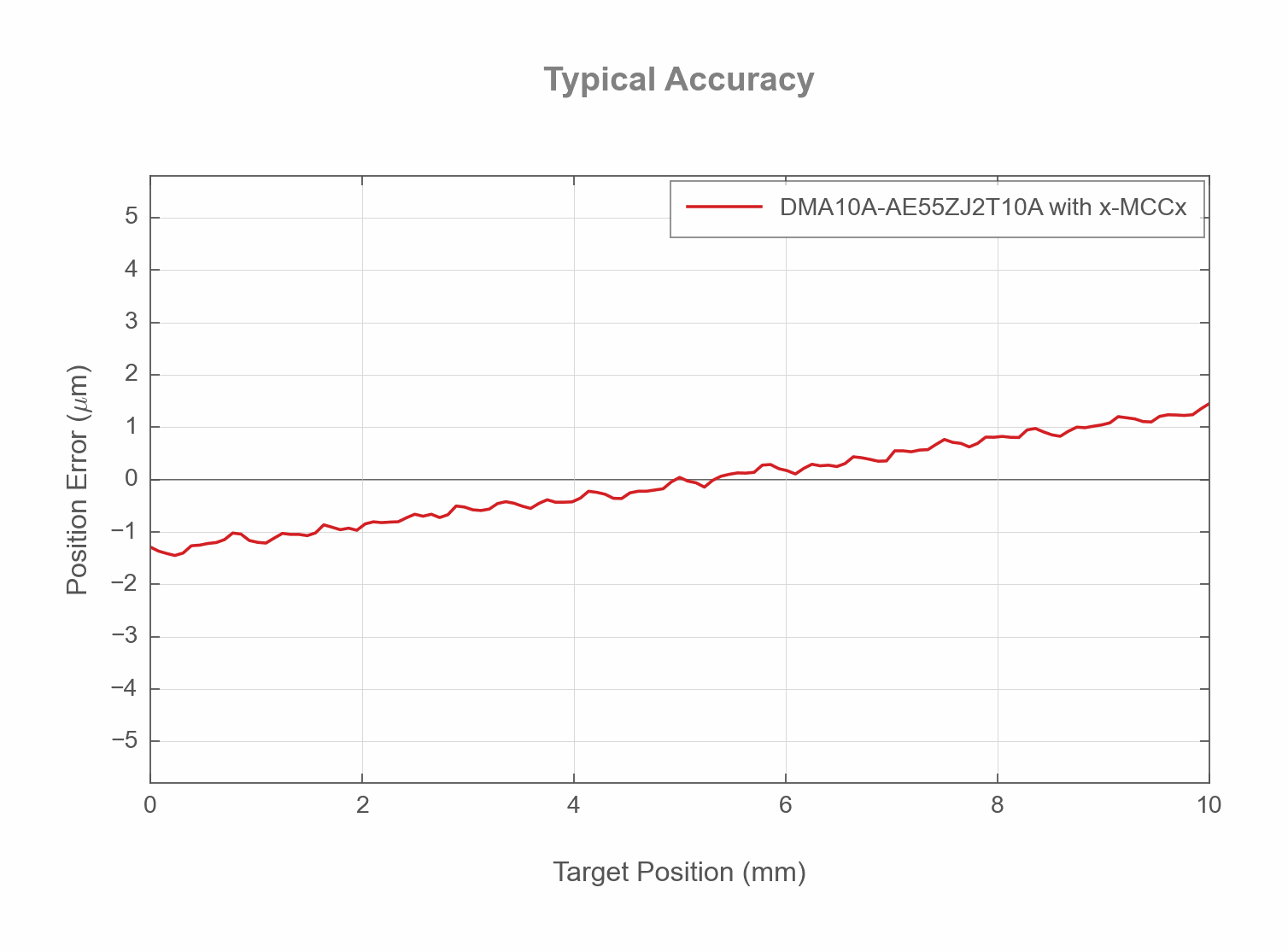

Typical Accuracy

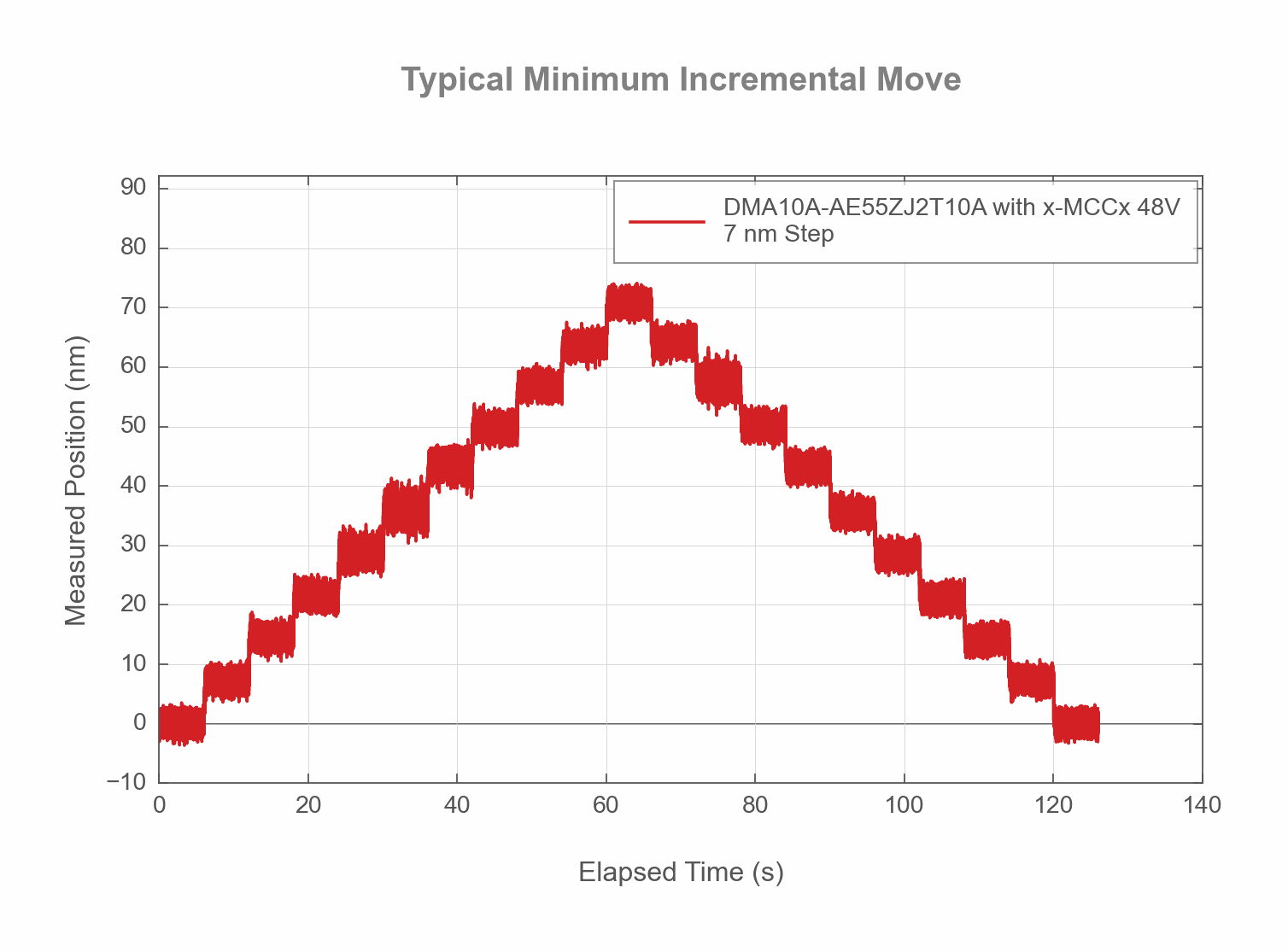

Minimum Incremental Move
