DMA-AEZ Series
High precision vertical stages
About This Series

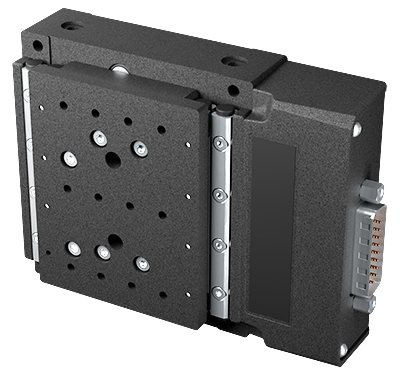

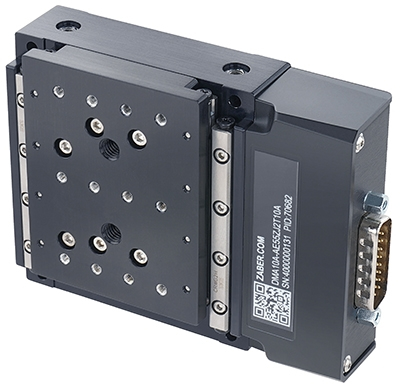

Zaber's X-DMA-AEZ Series devices are direct-drive linear stages delivering high speed, precision, and reliability of the DMA-AE stages with an integrated magnetic counterbalance specifically designed for vertical applications. A high resolution linear encoder results in repeatability less than 50 nm and consistent movement steps down to 10 nm. Low-friction high-rigidity crossed roller bearings allow for fast step and settle times and anti-creep bearing cages eliminate cage creep during vertical or high acceleration operation. Both the drive and encoder are non-contact, and have no moving cables, resulting in an extremely robust system.
A passive frictionless magnetic counterbalance integrated directly into the stage compensates for payloads up to 1 kg, preventing unwanted motion during power loss. The counterbalance’s force can be finely adjusted in seconds with a single screw.
The stages are designed to connect directly to our X-MCC using a single cable. Set-up is easy with AutoDetect. Once connected, the X-MCC controller will automatically detect and configure the DMA-AEZ.
- Panel Mount DB26 with AutoDetect allows the DMA-AEZ to be easily connected to an X-MCC Series controller and ready to use without additional user input.
- A passive magnetic counterbalance compensates for payloads up to 1 kg. The counterbalance force can be finely adjusted in seconds.
- Servo tuning parameters can automatically be optimized for any payload mass with our free software, when paired with the X-MCC controller family. Parameters can be adjusted on the fly.
- DMA-AEZ stages are designed for extreme reliability. Zero moving cables, combined with a non-contact drive and encoder result in an exceptionally robust system.
- Ultra-smooth crossed roller bearings with anti-creep bearing cages provide long life and high rigidity.
- Direct-drive voice coil motor provides excellent dynamic performance and is maintenance free.
Easy Set-Up
With AutoDetect, the X-MCC controller will automatically detect and configure the peripheral. Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the X-MCC controller to your computer.
- Connect the controller to the peripheral and plug in the power supply.
- Send instructions or automate your set-up using the Zaber Launcher.
For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
