X-LRQ-SV1 Series

Low vacuum motorized linear stages with built-in controllers

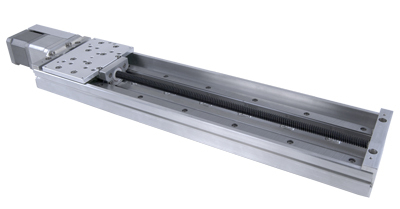

X-LRQ-SV1 low vacuum motorized linear stage with built-in controllers
  • Vacuum compatible to 10-3 Torr
  • 75, 150, 300, 450, 600 mm travel
  • Up to 205 mm/s speed and up to 100 N thrust
  • 100 kg load capacity
  • Built-in controller; daisy-chains with other Zaber products
  • Only 4 feedthrough wires required to control all units in the daisy-chain via serial port (with an X-PIB adapter)
  • Custom versions available
Application Engineer
Have a Question?

Contact us for device selection, troubleshooting & more!

Response time promise: 1 business day

Application Engineer
Have a Question?

Filter By Feature

Choose one or more options below to filter the parts table.

X-LRQTravel: 075, not selectedLead Screw Options: A, not selectedDrive Configuration: LOptions: -SV1
Showing 10 of 10 parts.

Travel

Lead Screw Options

Drive Configuration

L
Inline

Options

-SV1
Low-vacuum compatible: 10-3 Torr
Part NumberDescriptionLead Time Starting
Prices (USD) *
Add to Cart Add To
Compare
X-LRQ075AL-SV175 mm Travel | Fine Resolution | Low Speed5-10 Days$6,437
X-LRQ075BL-SV175 mm Travel | Medium Resolution | Medium Speed5-10 Days$6,437
X-LRQ150AL-SV1150 mm Travel | Fine Resolution | Low Speed5-10 Days$6,853
X-LRQ150BL-SV1150 mm Travel | Medium Resolution | Medium Speed5-10 Days$6,853
X-LRQ300AL-SV1300 mm Travel | Fine Resolution | Low Speed5-10 Days$7,682
X-LRQ300BL-SV1300 mm Travel | Medium Resolution | Medium Speed5-10 Days$7,682
X-LRQ450AL-SV1450 mm Travel | Fine Resolution | Low Speed5-10 Days$8,529
X-LRQ450BL-SV1450 mm Travel | Medium Resolution | Medium Speed5-10 Days$8,529
X-LRQ600AL-SV1600 mm Travel | Fine Resolution | Low Speed5-10 Days$9,281
X-LRQ600BL-SV1600 mm Travel | Medium Resolution | Medium Speed5-10 Days$9,281

Compatible Accessories

* These are our direct prices in USD to customers in North America. If you are in Canada, select CAD from the currency menu at the top right of the page. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
