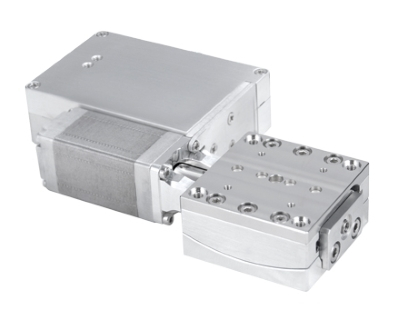

X-GSM-SV1 Series

Low vacuum motorized goniometers with built-in controllers

Default image for https://www.zaber.com/products/vacuum-compatible-stages/X-GSM-SV1
  • Vacuum compatible to 10-3 Torr
  • 40 mm and 60 mm centre of rotation options allow for two axes of motion about a common centre of rotation
  • Crossed roller bearings for smooth motion and high stiffness
  • Built-in controller; daisy-chains with other Zaber products
  • Only 4 feedthrough wires required to control all units in the daisy-chain via serial port (with an X-PIB adaptor)

Part Numbering & Options

Part Numbering Scheme of the X-GSM-SV1
Part NumberDescriptionLead TimeStarting
Prices (USD) *
Add to Cart
X-GSM40-SV140 mm Centre Of Rotation4-7 Days$5,185
X-GSM60-SV160 mm Centre Of Rotation4-7 Days$5,185

Compatible Accessories

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
