TSB-V Series

Low vacuum translation stages

OVERVIEWFEATURESSPECIFICATIONSSUPPORT & DRAWINGS (PNG, STEP, CAD)

About This Series

Zaber's TSB-V Series of translation stages are ball bearing linear stages with 28 mm or 60 mm of travel. They are compatible with our low vacuum T-NA-SV1 series miniature linear actuators and can be used in x-y stage configuration.

These vacuum compatible translation stages use vacuum compatible greases and epoxies and non-anodized components. These translation stages have been used successfully in vacuum applications down to 10-6 Torr.

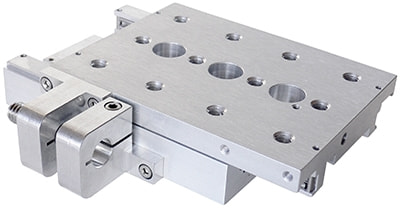

Photo of the TSB-V
1 2 3 4 5 6
  1. Reversible mounting bracket allows left-hand or right-hand operation.
  2. Adjustable home position.
  3. 9.5mm (3/8") quick release clamping mechanism fits T-NA-SV1 actuators. 14mm mounting brackets available.
  4. Precision machined, non-anodized aluminum stage.
  5. Metric M6 or Imperial 1/4"-20 mounting holes, on 25 mm or 1" spacing.
  6. Precision ground rails and ball bearings. Smooth and accurate motion.
