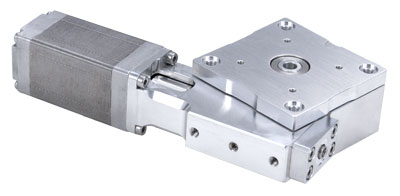

RSM-V1 Series
Low vacuum light load rotary stages
- Vacuum compatible to 10-3 Torr
- 0.02° repeatability
- 21 mm total height
- 4 mm aperture
- Worm gear driven for continuous rotation
- Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
- Only 7 feedthrough wires required to control these units
Have a Question?
Part Numbering & Options
| Part Number | Description | Lead Time | Starting Prices (USD) * | Add to Cart | Add To Compare |
|---|---|---|---|---|---|
| RSM40B-V1T4 | 40 mm Stage Top | Medium Resolution | 4-7 Days | $4,782 |
Compatible Accessories
- All RSMs share mounting patterns and can be screwed together directly.
- Mounting options for stacking XY, theta, or tilt systems with Zaber stages are available here RSM Adaptor Plates.
- Mounting options using angle bracket for L-shaped configurations with Zaber stages are available here RSM Angle Brackets.
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| AP135-V | Goniometer Adaptor Plate, Vacuum Compatible | 1-5 Days | $59 |
