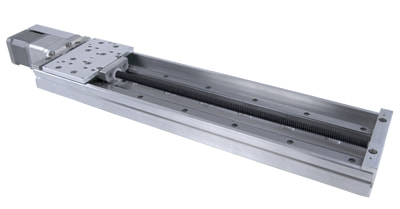

LRQ-V1 Series

Name: LRQ-V1 High Load, Low Vacuum, Motorized Linear Stages
Brand: Zaber
SKU: LRQ-V1
Availability: InStock

Low vacuum motorized linear stages

Vacuum compatible to 10^-3 Torr
75, 150, 300, 450, 600 mm travel
Up to 205 mm/s speed and up to 100 N thrust
100 kg load capacity
Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
Only 7 feedthrough wires required to control these units

Have a Question?

Response time promise: 1 business day

Have a Question?

Filter By Feature

Choose one or more options below to filter the parts table.

Travel

Lead Screw Options

Drive Configuration

L: Inline

Options

-V1: Low-vacuum compatible: 10-3 Torr

Connector

T4: D-sub 15 inline connector

Part Number	Description	Lead Time	Starting Prices (USD) *
LRQ075AL-V1T4	75 mm Travel \| Fine Resolution \| Low Speed	4-7 Days	$5,620
LRQ075BL-V1T4	75 mm Travel \| Medium Resolution \| Medium Speed	4-7 Days	$5,620
LRQ150AL-V1T4	150 mm Travel \| Fine Resolution \| Low Speed	4-7 Days	$6,005
LRQ150BL-V1T4	150 mm Travel \| Medium Resolution \| Medium Speed	4-7 Days	$6,005
LRQ300AL-V1T4	300 mm Travel \| Fine Resolution \| Low Speed	4-7 Days	$6,773
LRQ300BL-V1T4	300 mm Travel \| Medium Resolution \| Medium Speed	4-7 Days	$6,773
LRQ450AL-V1T4	450 mm Travel \| Fine Resolution \| Low Speed	4-7 Days	$7,558
LRQ450BL-V1T4	450 mm Travel \| Medium Resolution \| Medium Speed	4-7 Days	$7,558
LRQ600AL-V1T4	600 mm Travel \| Fine Resolution \| Low Speed	4-7 Days	$8,253
LRQ600BL-V1T4	600 mm Travel \| Medium Resolution \| Medium Speed	4-7 Days	$8,253

Compatible Accessories

Accessory	Description	Lead Time	Price (USD) *
MC03	Motor Extension Cable, 1.5 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$27
MC03L060	Motor Extension Cable, 0.6 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$45
MC03L300	Motor Extension Cable, 3.0 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$49
MC10T3	Motor Conversion Cable, 1.5 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$33
MC10T3L060	Motor Conversion Cable, 0.6 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$39
MC10T3L300	Motor Conversion Cable, 3.0 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$51
MC10T3L450	Motor Conversion Cable, 4.5 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$59

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
