NMS Series
Stepper Motors

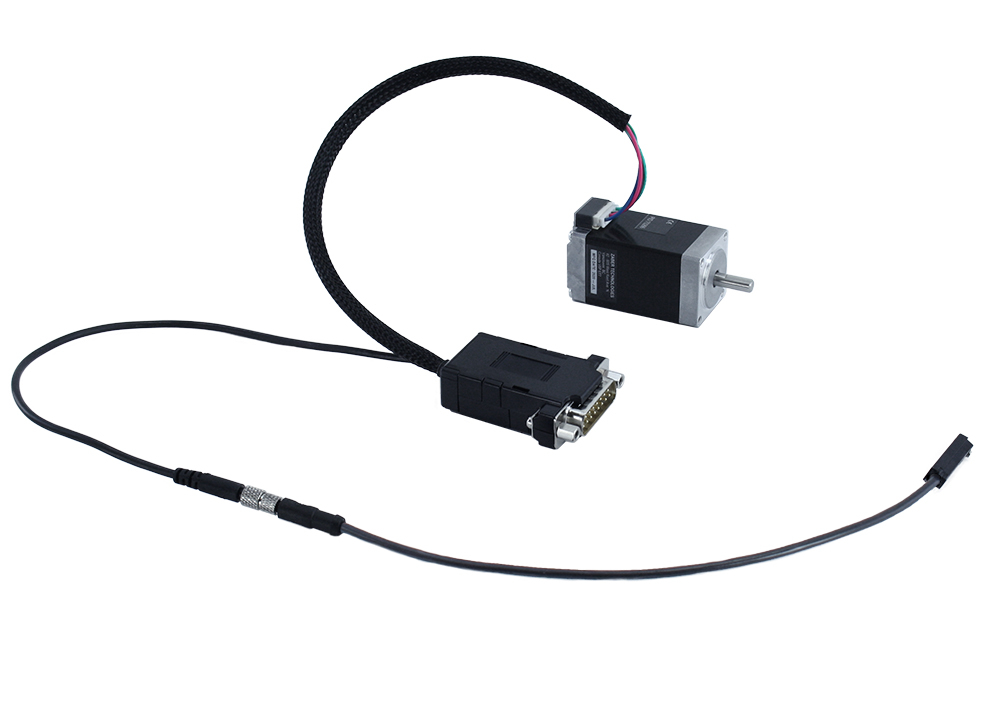

Image is representative of the NMS Series and may not match the selected variant.
NMS11-T4A
NEMA 11
Starting Price: $232 *
Standard Lead Time: 1-5 Days
NMS11-T4A Specifications
Download Datasheet| Microstep Size (Default Resolution) | 0.028125° (490.866 µrad) |
| Built-in Controller |  |
| Recommended Controller | MCC (48 V) Recommended |
| AutoDetect |  |
| Maximum Speed | 18000°/s (3000 rpm) |
| Minimum Speed | 0.017172°/s (299.703 µrad/s) |
| Speed Resolution | 0.017172°/s (299.703 µrad/s) |
| Maximum Torque | 0.17 Nâ‹…m (0.125 lbâ‹…ft) |
| Motor Steps Per Rev | 200 |
| Motor Type | Stepper (2 phase) |
| Motor Rated Current | 1500 mA/phase |
| Motor Winding Resistance | 2.05 ohms/phase |
| Motor Winding Inductance | 1 mH/phase |
| Motor Connection | D-sub 15 |
| Motor Frame Size | NEMA 11 |
| Limit or Home Sensing | Magnetic home sensor |
| Operating Temperature Range | 0 to 50 °C |
| CE Compliant | |
| Vacuum Compatible | |
| Weight | 0.21 kg (0.463 lb) |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Specification Charts & Notes
Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).
Torque Speed Performance
