Representative Image
NMS Family
Stepper Motors
- NEMA size 08 to 34 stepper motors offer a range of size and torque
- Optional away sensor
- Automatic detection and controller configruation
- Power-off brake option for load protection during power interrupts
- Built-in controller or motor-only models
- Motor encoder option for slip/stall detection and automatic recovery
- Detachable home sensor included
- Contact us for information and custom options for cleanroom use
| Best Accuracy | Best Repeatability | Highest Speed | Highest Torque |
|---|---|---|---|
0.25° (4.362500 mrad) | < 0.1° (< 1.745 mrad) | 18000°/s (3000 rpm) | 525 N⋅cm (743.5 oz⋅in) |
| Series Name | Optional Brake | Built-In Controller | Built-In Encoder | Built-In Motor | Price Range ( USD ) * | Current Lead Times | Add To Compare |
|---|---|---|---|---|---|---|---|

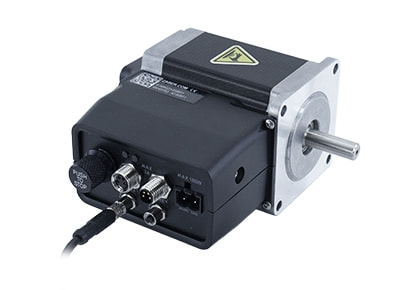

| X-NMS-E |  | | Motor/rotary | Stepper Motor | $833 – $1,896 | 1-5 Days | |
| X-NMS |  | | | Stepper Motor | $630 – $946 | 1-5 Days | |
| NMS-E | | | Motor/rotary | Stepper Motor | $409 – $1,634 | 1-5 Days | |
| NMS | | | | Stepper Motor | $232 – $265 | 1-5 Days |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
NMS Customization Examples
Whether you need modifications to standard products or have unique stage or system needs, our Product Customization team is dedicated to building tailored solutions.
Response Time Promise: 1 Business Day

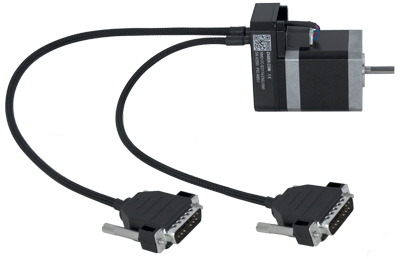

Stepper Motor with Additional Output Connector
This is a NEMA 17 size motor with a motor encoder. It features a DSUB15 motor connector and an additional DSUB9 encoder output connector.
