NMS-E Series
Stepper motors with encoders and optional brakes

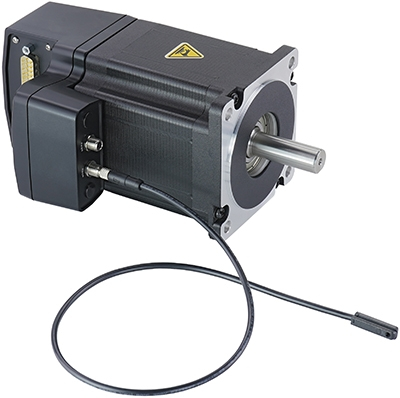

Image is representative of the NMS-E Series and may not match the selected variant.
NMS34-E01T11A
NEMA 34
Starting Price: $698
Standard Lead Time: 1-5 Days
Purchase Options
Add K0070 accessory kit (+ $140)
Controller: MCC (48 V) Recommended
- 1 x MC10T3L300: Motor Conversion Cable, 3.0 m, X-MCC Series Controllers and T3A/T4A/T11A Peripherals
- 1 x MC12L300: Motor Extension Cable, 3.0 m, X-MCC Series Controllers and T11A Peripherals
Total Price
$838 (USD) *
Stand-alone
Total Price
$698 (USD) *
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
NMS34-E01T11A Specifications
| Microstep Size (Default Resolution) | 0.028125° (490.866 µrad) |
| Built-in Controller |  |
| Recommended Controller | MCC (48 V) Recommended |
| AutoDetect |  |
| Maximum Speed | 18000°/s (3000 rpm) |
| Minimum Speed | 0.017172°/s (299.703 µrad/s) |
| Speed Resolution | 0.017172°/s (299.703 µrad/s) |
| Encoder Resolution | 500 CPR (2000 states/rev) |
| Encoder Type | Rotary quadrature encoder |
| Maximum Torque | 525 N⋅cm (743.5 oz⋅in) |
| Motor Steps Per Rev | 200 |
| Motor Type | Stepper (2 phase) |
| Motor Rated Current | 9470 mA/phase |
| Motor Winding Resistance | 0.23 ohms/phase |
| Inductance | 2.1 mH/phase |
| Motor Connection | M12 T-code (motor) and D-sub 15 (sensors) |
| Motor Frame Size | NEMA 34 |
| Limit or Home Sensing | Magnetic home sensor |
| Operating Temperature Range | 0 to 50 °C |
| CE Compliant | |
| Vacuum Compatible | |
| Weight | 3.10 kg (6.834 lb) |
Specification Charts & Notes
Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).
