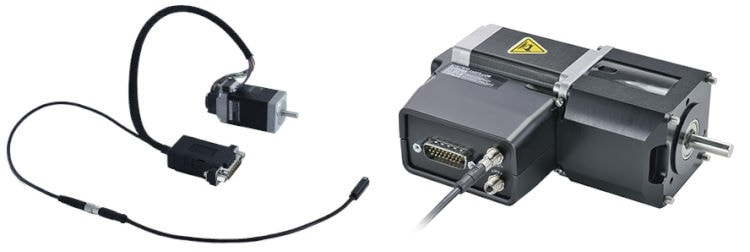

NMS-E Series
Stepper motors with encoders and optional brakes
About This Series
These NEMA stepper motors are designed to connect directly to our X-MCC. Set-up is easy with AutoDetect. Once connected, the X-MCC controller will automatically detect and configure the motor. The built-in encoder allows closed-loop operation and slip/stall recovery features. A detachable home sensor (HS02) and magnet are included. An optional power-off brake is available on NEMA 23 and NEMA 34 sized steppers to secure the payload across power cycles.
- AutoDetect allows the NMS-E to be easily connected to an X-MCC Series controller and ready to use without additional user input.
- Choose from a range of standard NEMA sized stepper motors.
- Locking M5 connector for secure connection to HS02 home sensor.
- Included home sensor (HS02) and magnet enable precision detection of home position.
- Equipped encoder provides slip/stall detection and recovery.
- An optional power-off brake is available on NEMA 23 and NEMA 34 sized steppers to secure payload across power cycles.
Easy Set-Up
With AutoDetect, the X-MCC controller will automatically detect and configure the peripheral. Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the X-MCC controller to your computer.
- Connect the controller to the peripheral and plug in the power supply.
- Send instructions or automate your set-up using the Zaber Launcher.
For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
