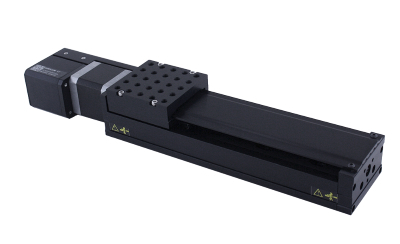

X-LSQ-C

X-LSQ-C Series

High-speed motorized linear stages with built-in controllers and covers

75, 150, 300, 450 and 600 mm travel
50 kg load capacity
Up to 1 m/s speed and up to 100 N thrust
Includes rigid cover
Integrated recirculating ball bearing guide provides exceptional lifetime
Built-in controller; daisy-chains with other Zaber products
Custom versions available

Part Numbering & Options

Part Number	Description	Lead Time	Starting Prices (USD) *
X-LSQ075A-C	75 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,891
X-LSQ075B-C	75 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,891
X-LSQ075D-C	75 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$2,891
X-LSQ150A-C	150 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$3,175
X-LSQ150B-C	150 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$3,175
X-LSQ150D-C	150 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$3,175
X-LSQ300A-C	300 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$3,754
X-LSQ300B-C	300 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$3,754
X-LSQ300D-C	300 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$3,754
X-LSQ450A-C	450 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$4,322
X-LSQ450B-C	450 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,322
X-LSQ450D-C	450 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$4,322
X-LSQ600A-C	600 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$4,837
X-LSQ600B-C	600 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,837
X-LSQ600D-C	600 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$4,837

Compatible Accessories

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
