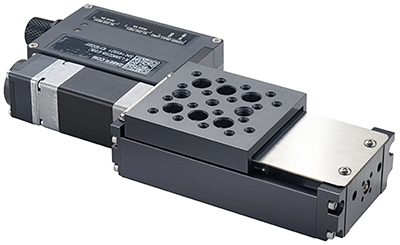

X-LSM-EC Series
Miniature motorized linear stages with built-in controllers, motor encoders, and dust covers
- 25, 50, 100, 150, 200 mm travel
- Up to 104 mm/s speed and up to 55 N thrust
- Recirculating ball bearing design for high load (25 kg) and long lifetime
- Includes stainless steel rigid cover
- Built-in controller; daisy-chains with other Zaber products
- Integrated, 200 CPR, motor mounted encoder provides slip/stall detection and recovery
- Custom versions available
Have a Question?
Contact us for device selection, troubleshooting & more!
Response time promise: 1 business day
Have a Question?
Filter By Feature
Choose one or more options below to filter the parts table.
X-LSMTravel: 025, not selectedLead Screw Options: A, not selected-Options: omitted, not selectedEncoder Options: E03Cover: C
Showing 20 of 20 parts.Lead Screw Options
Options
Encoder Options
Cover
Compatible Accessories
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| AB103 | Miniature Angle Bracket, 90 Degrees | 1-5 Days | $87 | |
| AP101 | LSM Bottom Adaptor Plate | 1-5 Days | $75 | |
| AP102C | LRM and LSM Metric Top Adaptor Plate | 1-5 Days | $97 |
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| PS12S-24V30 | Power Supply, 24 V 3.0 A | 1-5 Days | $50 | |
| PS13S-48V12 | Power Supply, 48 V 1.25 A | 1-5 Days | $37 | |
| PS14S-48V37 | Power Supply, 48 V 3.75 A | 1-5 Days | $112 |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
