X-LSM-E Series

Miniature motorized linear stages with built-in controllers and motor encoders

OVERVIEWFEATURESSPECIFICATIONSSUPPORT & DRAWINGS (PNG, STEP, CAD)CUSTOMIZATIONS

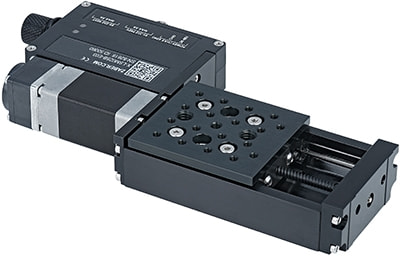

Photo of the X-LSM-E
  • 25, 50, 100, 150, 200 mm travel
  • Up to 104 mm/s speed and up to 55 N thrust
  • Recirculating ball bearing design for high load (25 kg) and long lifetime
  • Built-in controller; daisy-chains with other Zaber products
  • Integrated, 200 CPR, motor mounted encoder provides slip/stall detection and recovery
  • Custom versions available
App Eng.

Have a Question?

Contact us for device selection, troubleshooting & more!

Response time promise: 1 business day

App Eng.

Have a Question?

Have a Question?

Part Numbering & Options

Part Numbering Scheme of the X-LSM-E
Part NumberDescriptionLead TimeStarting
Prices (USD) *		Add to Cart
X-LSM025A-E0325 mm Travel | Fine Resolution | Low Speed1-5 Days$2,421
X-LSM025A-SE0325 mm Travel | Fine Resolution | Low Speed1-5 Days$2,421
X-LSM025B-E0325 mm Travel | Medium Resolution | Medium Speed1-5 Days$2,421
X-LSM025B-SE0325 mm Travel | Medium Resolution | Medium Speed1-5 Days$2,421
X-LSM050A-E0350 mm Travel | Fine Resolution | Low Speed1-5 Days$2,551
X-LSM050A-SE0350 mm Travel | Fine Resolution | Low Speed1-5 Days$2,551
X-LSM050B-E0350 mm Travel | Medium Resolution | Medium Speed1-5 Days$2,551
X-LSM050B-SE0350 mm Travel | Medium Resolution | Medium Speed1-5 Days$2,551
X-LSM100A-E03100 mm Travel | Fine Resolution | Low Speed1-5 Days$2,815
X-LSM100A-SE03100 mm Travel | Fine Resolution | Low Speed1-5 Days$2,815
X-LSM100B-E03100 mm Travel | Medium Resolution | Medium Speed1-5 Days$2,815
X-LSM100B-SE03100 mm Travel | Medium Resolution | Medium Speed1-5 Days$2,815
X-LSM150A-E03150 mm Travel | Fine Resolution | Low Speed1-5 Days$2,945
X-LSM150A-SE03150 mm Travel | Fine Resolution | Low Speed1-5 Days$2,945
X-LSM150B-E03150 mm Travel | Medium Resolution | Medium Speed1-5 Days$2,945
X-LSM150B-SE03150 mm Travel | Medium Resolution | Medium Speed1-5 Days$2,945
X-LSM200A-E03200 mm Travel | Fine Resolution | Low Speed1-5 Days$3,075
X-LSM200A-SE03200 mm Travel | Fine Resolution | Low Speed1-5 Days$3,075
X-LSM200B-E03200 mm Travel | Medium Resolution | Medium Speed1-5 Days$3,075
X-LSM200B-SE03200 mm Travel | Medium Resolution | Medium Speed1-5 Days$3,075

Compatible Accessories

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
