X-LSM-C Series

Miniature motorized linear stages with built-in controllers and dust covers

OVERVIEWFEATURESSPECIFICATIONSSUPPORT & DRAWINGS (PNG, STEP, CAD)CUSTOMIZATIONS

Download Datasheet

Series Specifications

Built-in ControllerYes Icon
Encoder TypeNo Icon
Maximum Continuous Thrust 25 N (5.6 lb)
Communication Interface RS-232
Communication Protocol Zaber ASCII (Default), Zaber Binary
Data Cable Connection Locking 4-pin M8
Maximum Centered Load 250 N (56.1 lb)
Maximum Moment (Pitch) 4 N⋅m (3.0 ft⋅lb)
Maximum Moment (Roll) 10 N⋅m (7.4 ft⋅lb)
Maximum Moment (Yaw) 4 N⋅m (3.0 ft⋅lb)
Stiffness in Yaw 150 N⋅m/° (116 µrad/N⋅m)
Power Supply 24-48 VDC
Power Plug 2-pin Screw Terminal
Maximum Current Draw 350 mA
Motor Steps Per Rev 200
Motor Type Stepper (2 phase)
Motor Rated Current 600 mA/phase
Inductance 3.5 mH/phase
Default Resolution 1/64 of a step
Guide Type Recirculating ball bearing
Mechanical Drive System Precision lead screw
Limit or Home Sensing Magnetic hall sensor
Axes of Motion 1
LED IndicatorsYes Icon
Mounting Interface M3 and M6 threaded holes and M4 threaded centre hole
Stage Parallelism < 25 µm (< 0.000984")
Operating Temperature Range 0 to 50 °C
CE CompliantYes Icon
Vacuum CompatibleNo Icon

Part Specifications Comparison

Part NumberMicrostep Size (Default Resolution)Travel RangeAccuracy (unidirectional)RepeatabilityBacklashMaximum SpeedMinimum SpeedSpeed ResolutionPeak ThrustBack-driving Force*Vertical RunoutHorizontal RunoutPitchRollYawStiffness in PitchStiffness in RollLinear Motion Per Motor RevManual ControlWeight
X-LSM025A-C 0.047625 µm 25.4 mm (1.000") 15 µm (0.000591") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 26 mm/s (1.024"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 55 N (12.3 lb) Non-back-driving < 8 µm (< 0.000315") < 12 µm (< 0.000472") 0.02° (0.349 mrad) 0.02° (0.349 mrad) 0.03° (0.523 mrad) 75 N⋅m/° (233 µrad/N⋅m) 75 N⋅m/° (233 µrad/N⋅m) 0.6096 mm (0.024")Yes Icon 0.33 kg (0.728 lb)
X-LSM025A-SC 0.047625 µm 25.4 mm (1.000") 15 µm (0.000591") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 26 mm/s (1.024"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 55 N (12.3 lb) Non-back-driving < 8 µm (< 0.000315") < 12 µm (< 0.000472") 0.02° (0.349 mrad) 0.02° (0.349 mrad) 0.03° (0.523 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 0.6096 mm (0.024")No Icon 0.33 kg (0.728 lb)
X-LSM025B-C 0.1905 µm 25.4 mm (1.000") 15 µm (0.000591") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 104 mm/s (4.094"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 25 N (5.6 lb)(± 30%) 24 N (5.4 lb) < 8 µm (< 0.000315") < 12 µm (< 0.000472") 0.02° (0.349 mrad) 0.02° (0.349 mrad) 0.03° (0.523 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 2.4384 mm (0.096")Yes Icon 0.33 kg (0.728 lb)
X-LSM025B-SC 0.1905 µm 25.4 mm (1.000") 15 µm (0.000591") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 104 mm/s (4.094"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 25 N (5.6 lb)(± 30%) 24 N (5.4 lb) < 8 µm (< 0.000315") < 12 µm (< 0.000472") 0.02° (0.349 mrad) 0.02° (0.349 mrad) 0.03° (0.523 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 2.4384 mm (0.096")No Icon 0.33 kg (0.728 lb)
X-LSM050A-C 0.047625 µm 50.8 mm (2.000") 20 µm (0.000787") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 26 mm/s (1.024"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 55 N (12.3 lb) Non-back-driving < 11 µm (< 0.000433") < 14 µm (< 0.000551") 0.03° (0.523 mrad) 0.03° (0.523 mrad) 0.03° (0.523 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 0.6096 mm (0.024")Yes Icon 0.34 kg (0.750 lb)
X-LSM050A-SC 0.047625 µm 50.8 mm (2.000") 20 µm (0.000787") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 26 mm/s (1.024"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 55 N (12.3 lb) Non-back-driving < 11 µm (< 0.000433") < 14 µm (< 0.000551") 0.03° (0.523 mrad) 0.03° (0.523 mrad) 0.03° (0.523 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 0.6096 mm (0.024")No Icon 0.34 kg (0.750 lb)
X-LSM050B-C 0.1905 µm 50.8 mm (2.000") 25 µm (0.000984") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 104 mm/s (4.094"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 25 N (5.6 lb)(± 30%) 24 N (5.4 lb) < 11 µm (< 0.000433") < 14 µm (< 0.000551") 0.03° (0.523 mrad) 0.03° (0.523 mrad) 0.03° (0.523 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 2.4384 mm (0.096")Yes Icon 0.34 kg (0.750 lb)
X-LSM050B-SC 0.1905 µm 50.8 mm (2.000") 25 µm (0.000984") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 104 mm/s (4.094"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 25 N (5.6 lb)(± 30%) 24 N (5.4 lb) < 11 µm (< 0.000433") < 14 µm (< 0.000551") 0.03° (0.523 mrad) 0.03° (0.523 mrad) 0.03° (0.523 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 2.4384 mm (0.096")No Icon 0.34 kg (0.750 lb)
X-LSM100A-C 0.047625 µm 101.6 mm (4.000") 35 µm (0.001378") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 26 mm/s (1.024"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 55 N (12.3 lb) Non-back-driving < 18 µm (< 0.000709") < 18 µm (< 0.000709") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.04° (0.698 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 0.6096 mm (0.024")Yes Icon 0.37 kg (0.816 lb)
X-LSM100A-SC 0.047625 µm 101.6 mm (4.000") 35 µm (0.001378") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 26 mm/s (1.024"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 55 N (12.3 lb) Non-back-driving < 18 µm (< 0.000709") < 18 µm (< 0.000709") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.04° (0.698 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 0.6096 mm (0.024")No Icon 0.37 kg (0.816 lb)
X-LSM100B-C 0.1905 µm 101.6 mm (4.000") 45 µm (0.001772") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 104 mm/s (4.094"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 25 N (5.6 lb)(± 30%) 24 N (5.4 lb) < 18 µm (< 0.000709") < 18 µm (< 0.000709") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.04° (0.698 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 2.4384 mm (0.096")Yes Icon 0.37 kg (0.816 lb)
X-LSM100B-SC 0.1905 µm 101.6 mm (4.000") 45 µm (0.001772") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 104 mm/s (4.094"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 25 N (5.6 lb)(± 30%) 24 N (5.4 lb) < 18 µm (< 0.000709") < 18 µm (< 0.000709") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.04° (0.698 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 2.4384 mm (0.096")No Icon 0.37 kg (0.816 lb)
X-LSM150A-C 0.047625 µm 152.4 mm (6.000") 50 µm (0.001968") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 26 mm/s (1.024"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 55 N (12.3 lb) Non-back-driving < 20 µm (< 0.000787") < 20 µm (< 0.000787") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.045° (0.785 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 0.6096 mm (0.024")Yes Icon 0.41 kg (0.904 lb)
X-LSM150A-SC 0.047625 µm 152.4 mm (6.000") 50 µm (0.001968") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 26 mm/s (1.024"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 55 N (12.3 lb) Non-back-driving < 20 µm (< 0.000787") < 20 µm (< 0.000787") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.045° (0.785 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 0.6096 mm (0.024")No Icon 0.41 kg (0.904 lb)
X-LSM150B-C 0.1905 µm 152.4 mm (6.000") 65 µm (0.002559") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 104 mm/s (4.094"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 25 N (5.6 lb)(± 30%) 24 N (5.4 lb) < 20 µm (< 0.000787") < 20 µm (< 0.000787") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.045° (0.785 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 2.4384 mm (0.096")Yes Icon 0.41 kg (0.904 lb)
X-LSM150B-SC 0.1905 µm 152.4 mm (6.000") 65 µm (0.002559") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 104 mm/s (4.094"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 25 N (5.6 lb)(± 30%) 24 N (5.4 lb) < 20 µm (< 0.000787") < 20 µm (< 0.000787") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.045° (0.785 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 2.4384 mm (0.096")No Icon 0.41 kg (0.904 lb)
X-LSM200A-C 0.047625 µm 203.2 mm (8.000") 60 µm (0.002362") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 26 mm/s (1.024"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 55 N (12.3 lb) Non-back-driving < 20 µm (< 0.000787") < 20 µm (< 0.000787") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.045° (0.785 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 0.6096 mm (0.024")Yes Icon 0.44 kg (0.970 lb)
X-LSM200A-SC 0.047625 µm 203.2 mm (8.000") 60 µm (0.002362") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 26 mm/s (1.024"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 55 N (12.3 lb) Non-back-driving < 20 µm (< 0.000787") < 20 µm (< 0.000787") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.045° (0.785 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 0.6096 mm (0.024")No Icon 0.44 kg (0.970 lb)
X-LSM200B-C 0.1905 µm 203.2 mm (8.000") 85 µm (0.003346") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 104 mm/s (4.094"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 25 N (5.6 lb)(± 30%) 24 N (5.4 lb) < 20 µm (< 0.000787") < 20 µm (< 0.000787") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.045° (0.785 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 2.4384 mm (0.096")Yes Icon 0.44 kg (0.970 lb)
X-LSM200B-SC 0.1905 µm 203.2 mm (8.000") 85 µm (0.003346") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 104 mm/s (4.094"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 25 N (5.6 lb)(± 30%) 24 N (5.4 lb) < 20 µm (< 0.000787") < 20 µm (< 0.000787") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.045° (0.785 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 2.4384 mm (0.096")No Icon 0.44 kg (0.970 lb)

Specification Charts & Notes

Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

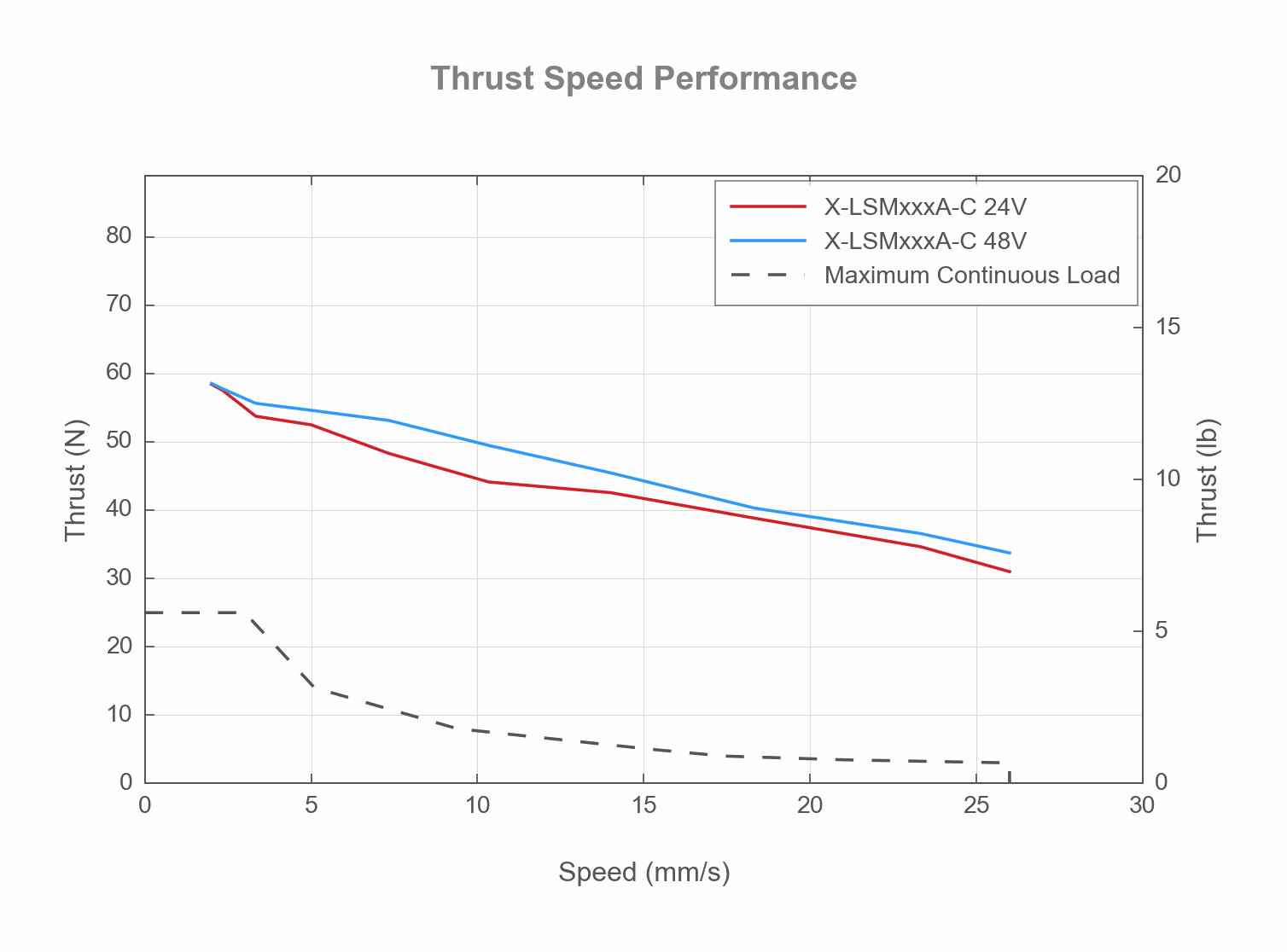

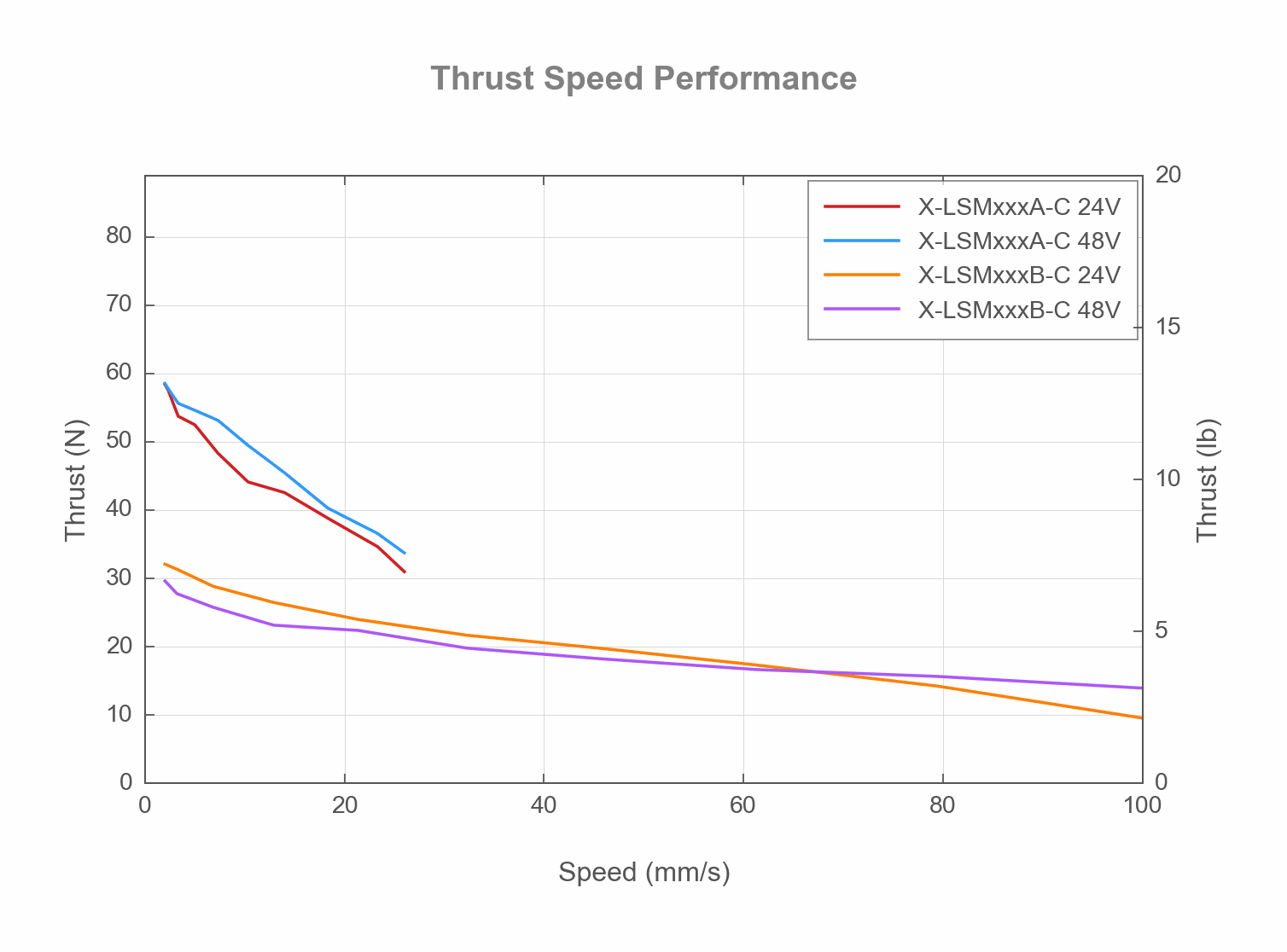

Thrust Speed Performance

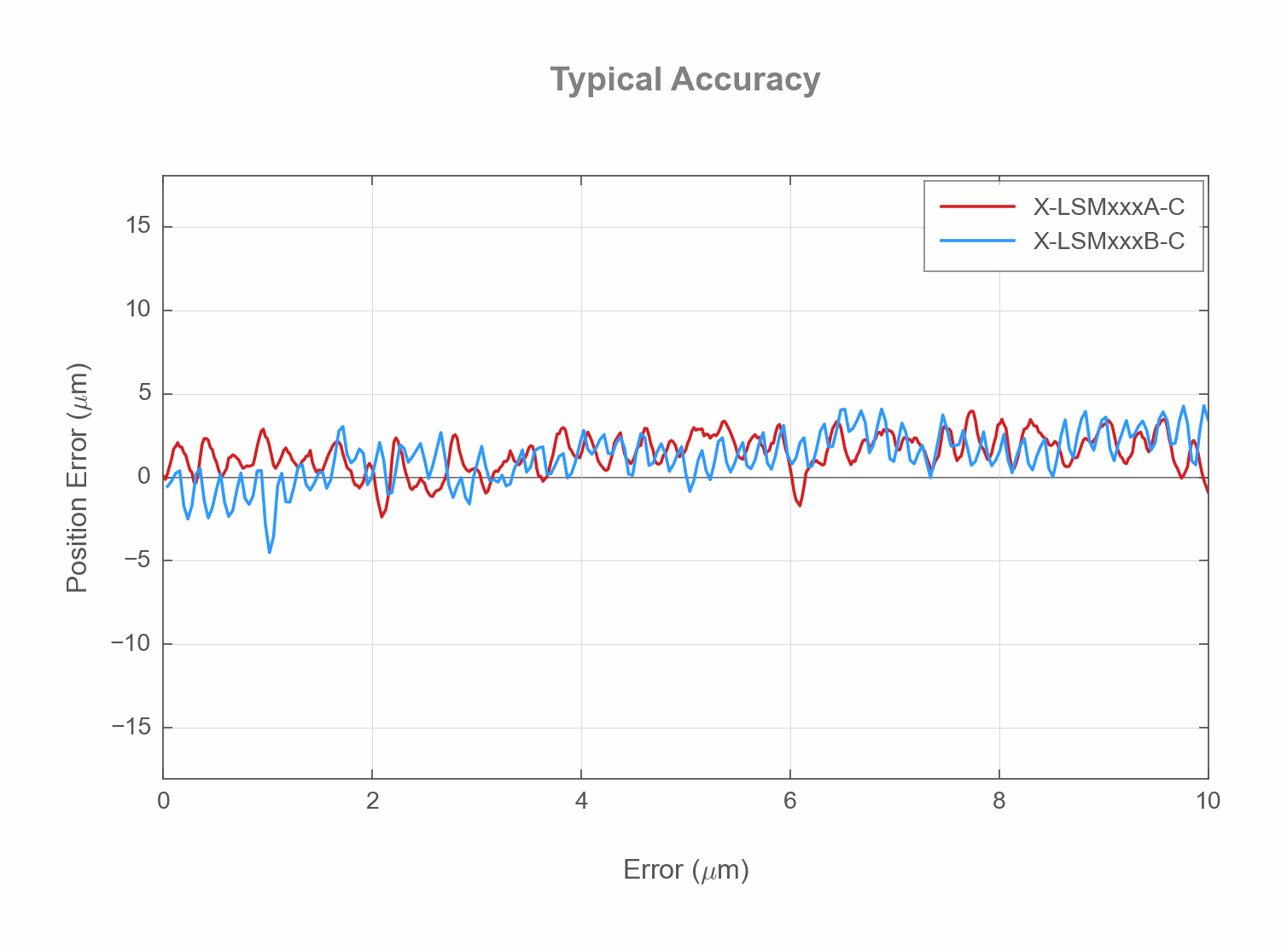

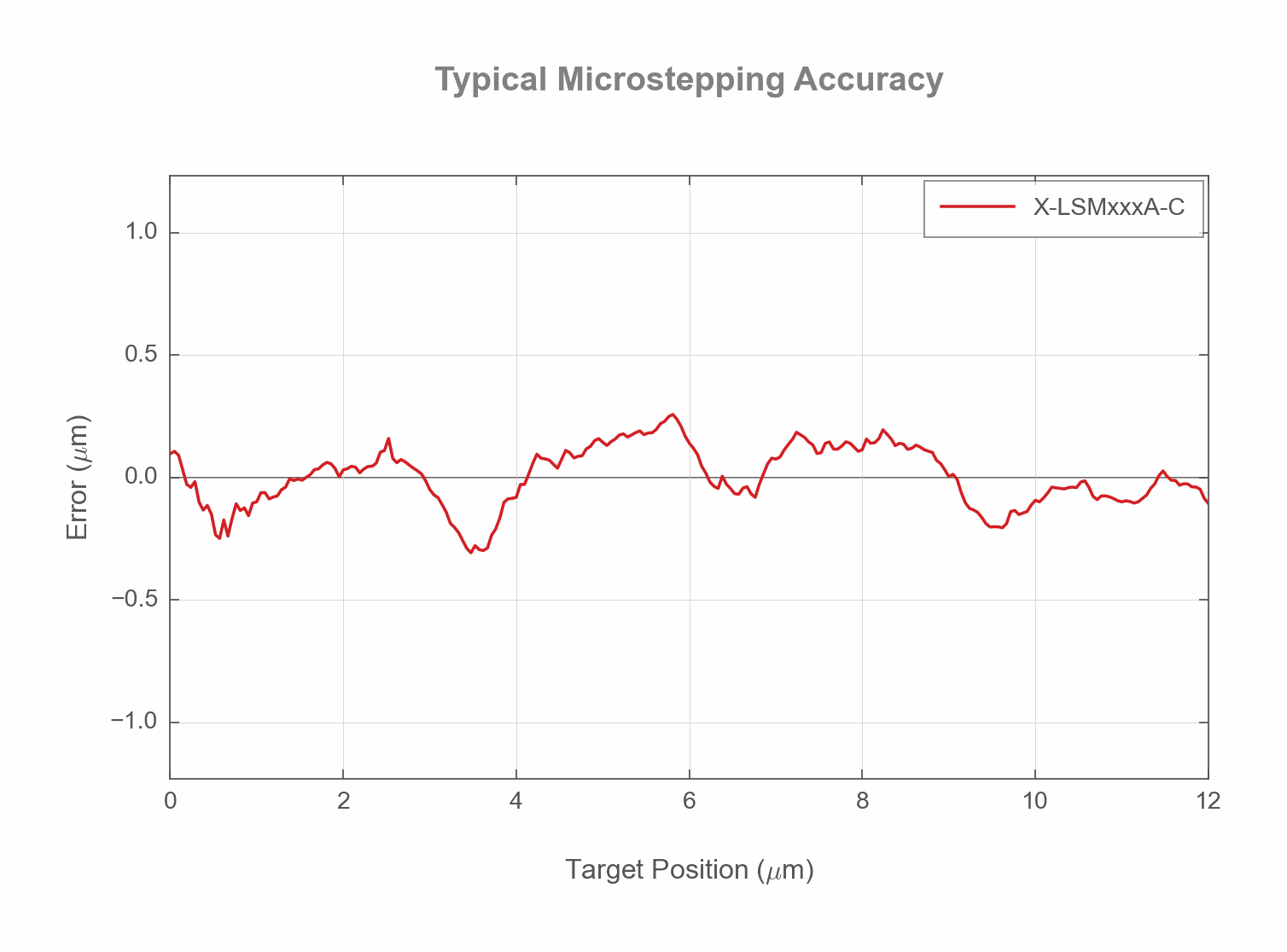

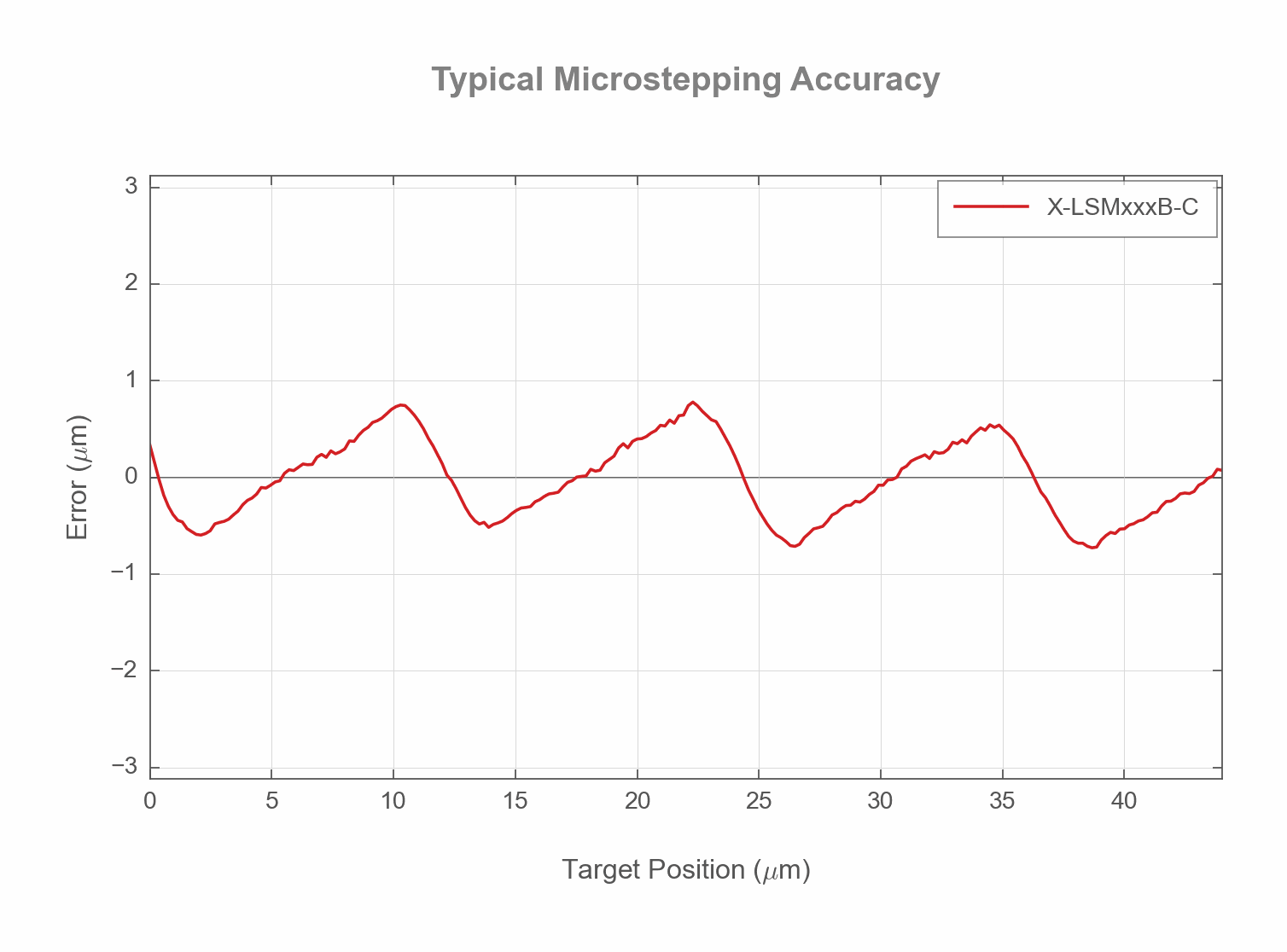

Typical Accuracy

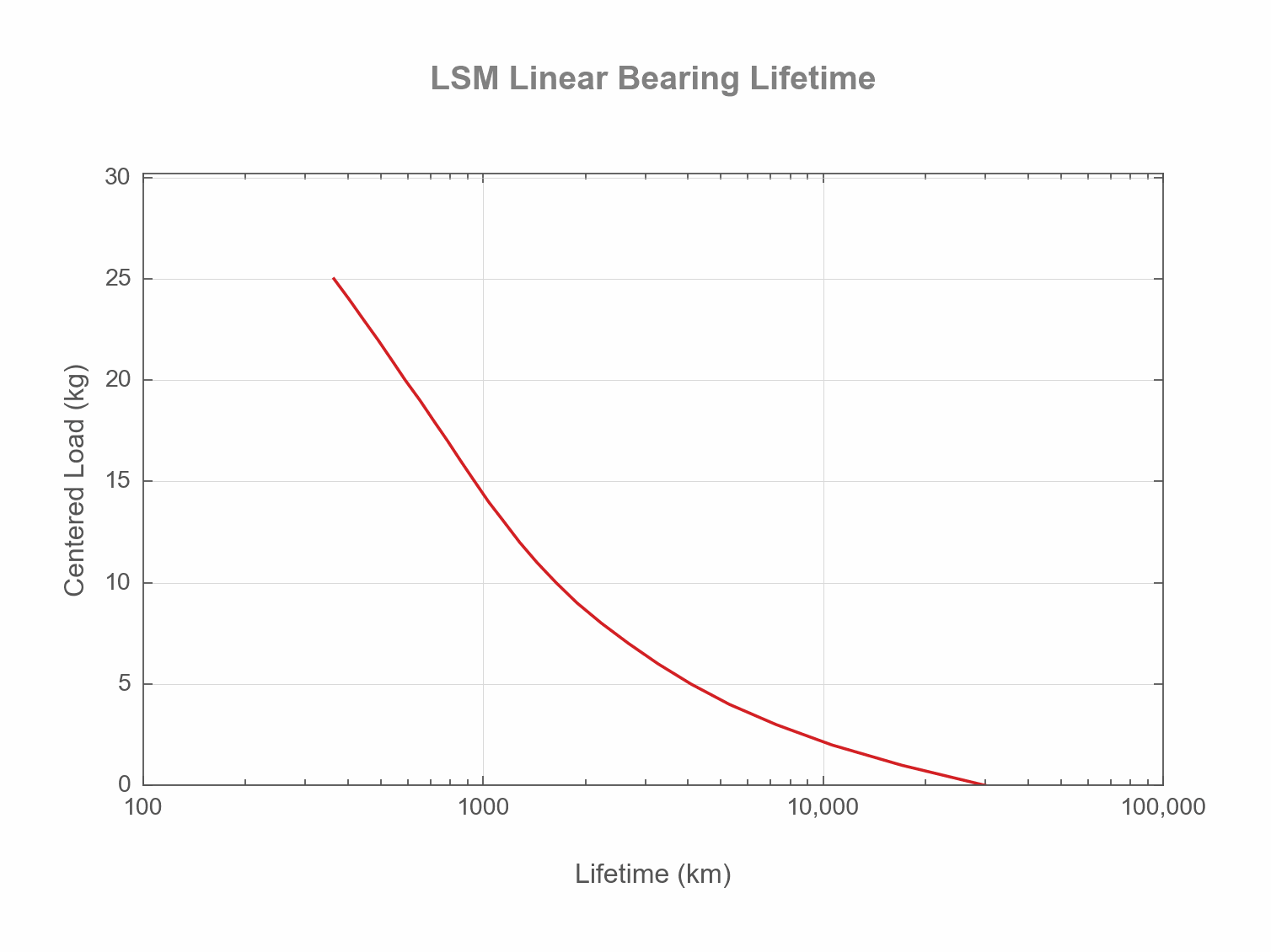

Bearing Lifetime
