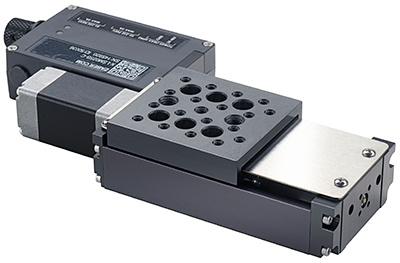

X-LSM-C

X-LSM-C Series

Miniature motorized linear stages with built-in controllers and dust covers

25, 50, 100, 150 and 200 mm travel
Up to 104 mm/s speed and up to 55 N thrust
Recirculating ball bearing design for high load (25 kg) and long lifetime
Includes stainless steel rigid cover
Built-in controller; daisy-chains with other Zaber products
Custom versions available

Part Numbering & Options

Part Number	Description	Lead Time	Starting Prices (USD) *
X-LSM025A-C	25 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,408
X-LSM025A-SC	25 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,408
X-LSM025B-C	25 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,408
X-LSM025B-SC	25 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,408
X-LSM050A-C	50 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,542
X-LSM050A-SC	50 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,542
X-LSM050B-C	50 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,542
X-LSM050B-SC	50 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,542
X-LSM100A-C	100 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,810
X-LSM100A-SC	100 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,810
X-LSM100B-C	100 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,810
X-LSM100B-SC	100 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,810
X-LSM150A-C	150 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,942
X-LSM150A-SC	150 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,942
X-LSM150B-C	150 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,942
X-LSM150B-SC	150 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,942
X-LSM200A-C	200 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$3,076
X-LSM200A-SC	200 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$3,076
X-LSM200B-C	200 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$3,076
X-LSM200B-SC	200 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$3,076

Compatible Accessories

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
