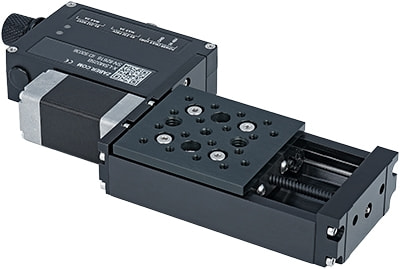

X-LSM

X-LSM Series

Miniature motorized linear stages with built-in controllers

25, 50, 100, 150 and 200 mm travel
Up to 104 mm/s speed and up to 55 N thrust
Recirculating ball bearing design for high load (25 kg) and long lifetime
Built-in controller; daisy-chains with other Zaber products
Custom versions available

Part Numbering & Options

Part Number	Description	Lead Time	Starting Prices (USD) *
X-LSM025A	25 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,165
X-LSM025A-S	25 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,165
X-LSM025B	25 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,165
X-LSM025B-S	25 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,165
X-LSM050A	50 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,296
X-LSM050A-S	50 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,296
X-LSM050B	50 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,296
X-LSM050B-S	50 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,296
X-LSM100A	100 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,559
X-LSM100A-S	100 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,559
X-LSM100B	100 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,559
X-LSM100B-S	100 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,559
X-LSM150A	150 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,688
X-LSM150A-S	150 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,688
X-LSM150B	150 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,688
X-LSM150B-S	150 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,688
X-LSM200A	200 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,820
X-LSM200A-S	200 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,820
X-LSM200B	200 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,820
X-LSM200B-S	200 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,820

Compatible Accessories

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
