LSM-C Series

Miniature motorized linear stages with dust covers

OVERVIEWFEATURESSPECIFICATIONSSUPPORT & DRAWINGS (PNG, STEP, CAD)CUSTOMIZATIONS

Download Datasheet

Series Specifications

Built-in ControllerNo Icon
Recommended Controller X-MCC (48 V) Recommended
AutoDetectYes Icon
Encoder TypeNo Icon
Maximum Continuous Thrust 25 N (5.6 lb)
Maximum Centered Load 250 N (56.1 lb)
Maximum Moment (Pitch) 4 N⋅m (3.0 ft⋅lb)
Maximum Moment (Roll) 10 N⋅m (7.4 ft⋅lb)
Maximum Moment (Yaw) 4 N⋅m (3.0 ft⋅lb)
Stiffness in Yaw 150 N⋅m/° (116 µrad/N⋅m)
Motor Steps Per Rev 200
Motor Type Stepper (2 phase)
Motor Rated Current 600 mA/phase
Motor Winding Resistance 6.5 ohms/phase
Inductance 3.5 mH/phase
Motor Rated Power 6.9 Watts
Motor Connection D-sub 15
Motor Rotor Inertia 2.9 g⋅cm2
Default Resolution 1/64 of a step
Motor Frame Size NEMA 08
Guide Type Recirculating ball bearing
Mechanical Drive System Precision lead screw
Limit or Home Sensing Magnetic hall sensor
Axes of Motion 1
Mounting Interface M3 and M6 threaded holes and M4 threaded centre hole
Stage Parallelism < 25 µm (< 0.000984")
Operating Temperature Range 0 to 50 °C
CE CompliantYes Icon
Vacuum CompatibleNo Icon

Part Specifications Comparison

Part NumberMicrostep Size (Default Resolution)Travel RangeAccuracy (unidirectional)RepeatabilityBacklashMaximum SpeedMinimum SpeedSpeed ResolutionPeak ThrustBack-driving Force*Vertical RunoutHorizontal RunoutPitchRollYawStiffness in PitchStiffness in RollLinear Motion Per Motor RevWeight
LSM025A-CT4A 0.047625 µm 25.4 mm (1.000") 15 µm (0.000591") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 26 mm/s (1.024"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 55 N (12.3 lb) Non-back-driving < 8 µm (< 0.000315") < 12 µm (< 0.000472") 0.02° (0.349 mrad) 0.02° (0.349 mrad) 0.03° (0.523 mrad) 75 N⋅m/° (233 µrad/N⋅m) 75 N⋅m/° (233 µrad/N⋅m) 0.6096 mm (0.024") 0.2 kg (0.441 lb)
LSM025B-CT4A 0.1905 µm 25.4 mm (1.000") 15 µm (0.000591") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 104 mm/s (4.094"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 25 N (5.6 lb)(± 30%) 24 N (5.4 lb) < 8 µm (< 0.000315") < 12 µm (< 0.000472") 0.02° (0.349 mrad) 0.02° (0.349 mrad) 0.03° (0.523 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 2.4384 mm (0.096") 0.2 kg (0.441 lb)
LSM050A-CT4A 0.047625 µm 50.8 mm (2.000") 20 µm (0.000787") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 26 mm/s (1.024"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 55 N (12.3 lb) Non-back-driving < 11 µm (< 0.000433") < 14 µm (< 0.000551") 0.03° (0.523 mrad) 0.03° (0.523 mrad) 0.03° (0.523 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 0.6096 mm (0.024") 0.21 kg (0.463 lb)
LSM050B-CT4A 0.1905 µm 50.8 mm (2.000") 25 µm (0.000984") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 104 mm/s (4.094"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 25 N (5.6 lb)(± 30%) 24 N (5.4 lb) < 11 µm (< 0.000433") < 14 µm (< 0.000551") 0.03° (0.523 mrad) 0.03° (0.523 mrad) 0.03° (0.523 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 2.4384 mm (0.096") 0.21 kg (0.463 lb)
LSM100A-CT4A 0.047625 µm 101.6 mm (4.000") 35 µm (0.001378") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 26 mm/s (1.024"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 55 N (12.3 lb) Non-back-driving < 18 µm (< 0.000709") < 18 µm (< 0.000709") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.04° (0.698 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 0.6096 mm (0.024") 0.24 kg (0.529 lb)
LSM100B-CT4A 0.1905 µm 101.6 mm (4.000") 45 µm (0.001772") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 104 mm/s (4.094"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 25 N (5.6 lb)(± 30%) 24 N (5.4 lb) < 18 µm (< 0.000709") < 18 µm (< 0.000709") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.04° (0.698 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 2.4384 mm (0.096") 0.24 kg (0.529 lb)
LSM150A-CT4A 0.047625 µm 152.4 mm (6.000") 50 µm (0.001968") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 26 mm/s (1.024"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 55 N (12.3 lb) Non-back-driving < 20 µm (< 0.000787") < 20 µm (< 0.000787") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.045° (0.785 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 0.6096 mm (0.024") 0.28 kg (0.617 lb)
LSM150B-CT4A 0.1905 µm 152.4 mm (6.000") 65 µm (0.002559") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 104 mm/s (4.094"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 25 N (5.6 lb)(± 30%) 24 N (5.4 lb) < 20 µm (< 0.000787") < 20 µm (< 0.000787") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.045° (0.785 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 2.4384 mm (0.096") 0.28 kg (0.617 lb)
LSM200A-CT4A 0.047625 µm 203.2 mm (8.000") 60 µm (0.002362") < 3 µm (< 0.000118") < 12 µm (< 0.000472") 26 mm/s (1.024"/s) 0.000029 mm/s (0.000001"/s) 0.000029 mm/s (0.000001"/s) 55 N (12.3 lb) Non-back-driving < 20 µm (< 0.000787") < 20 µm (< 0.000787") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.045° (0.785 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 0.6096 mm (0.024") 0.31 kg (0.683 lb)
LSM200B-CT4A 0.1905 µm 203.2 mm (8.000") 85 µm (0.003346") < 6 µm (< 0.000236") < 16 µm (< 0.000630") 104 mm/s (4.094"/s) 0.000116 mm/s (0.000005"/s) 0.000116 mm/s (0.000005"/s) 25 N (5.6 lb)(± 30%) 24 N (5.4 lb) < 20 µm (< 0.000787") < 20 µm (< 0.000787") 0.035° (0.611 mrad) 0.035° (0.611 mrad) 0.045° (0.785 mrad) 150 N⋅m/° (116 µrad/N⋅m) 150 N⋅m/° (116 µrad/N⋅m) 2.4384 mm (0.096") 0.31 kg (0.683 lb)

Specification Charts & Notes

Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

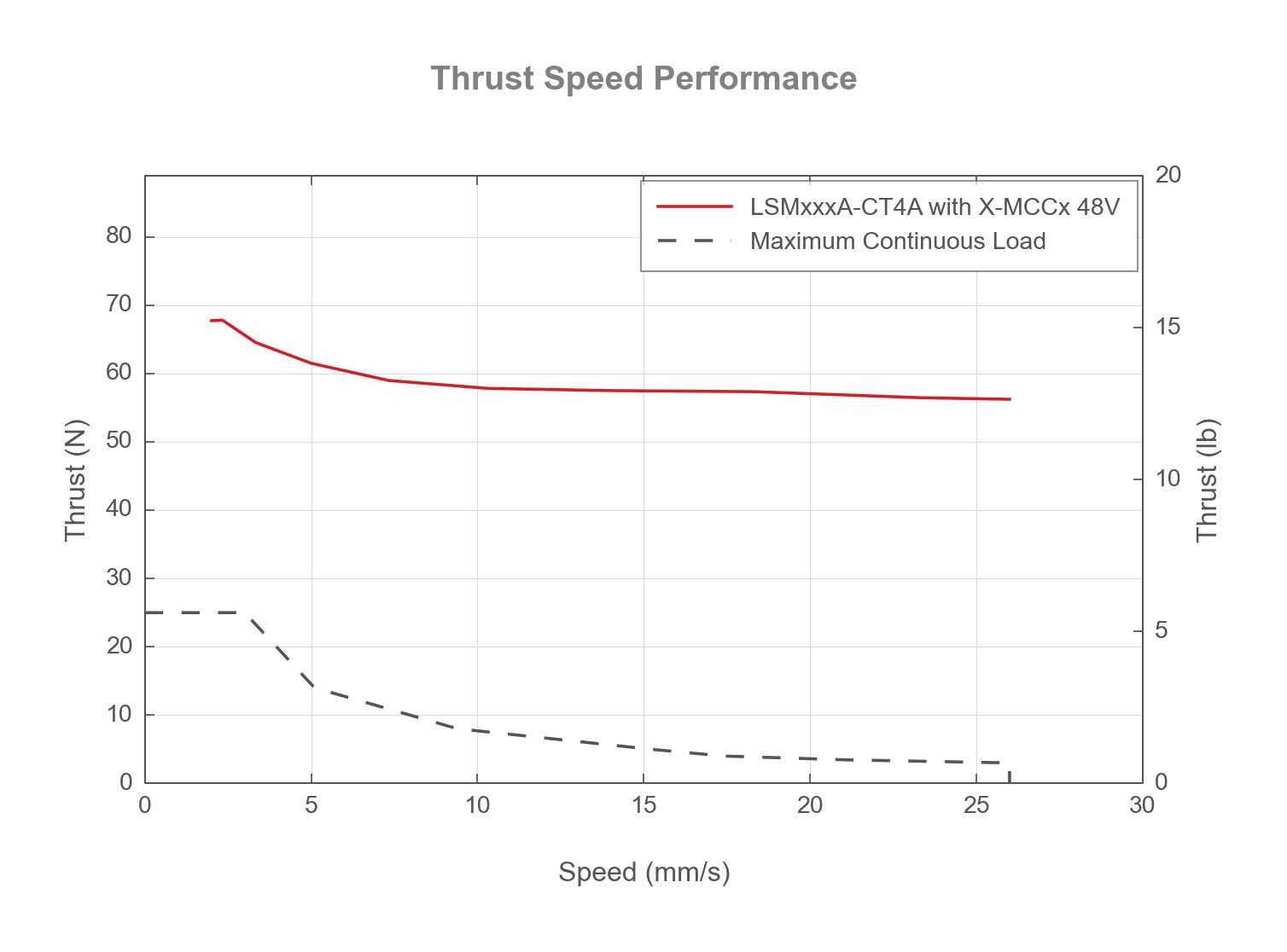

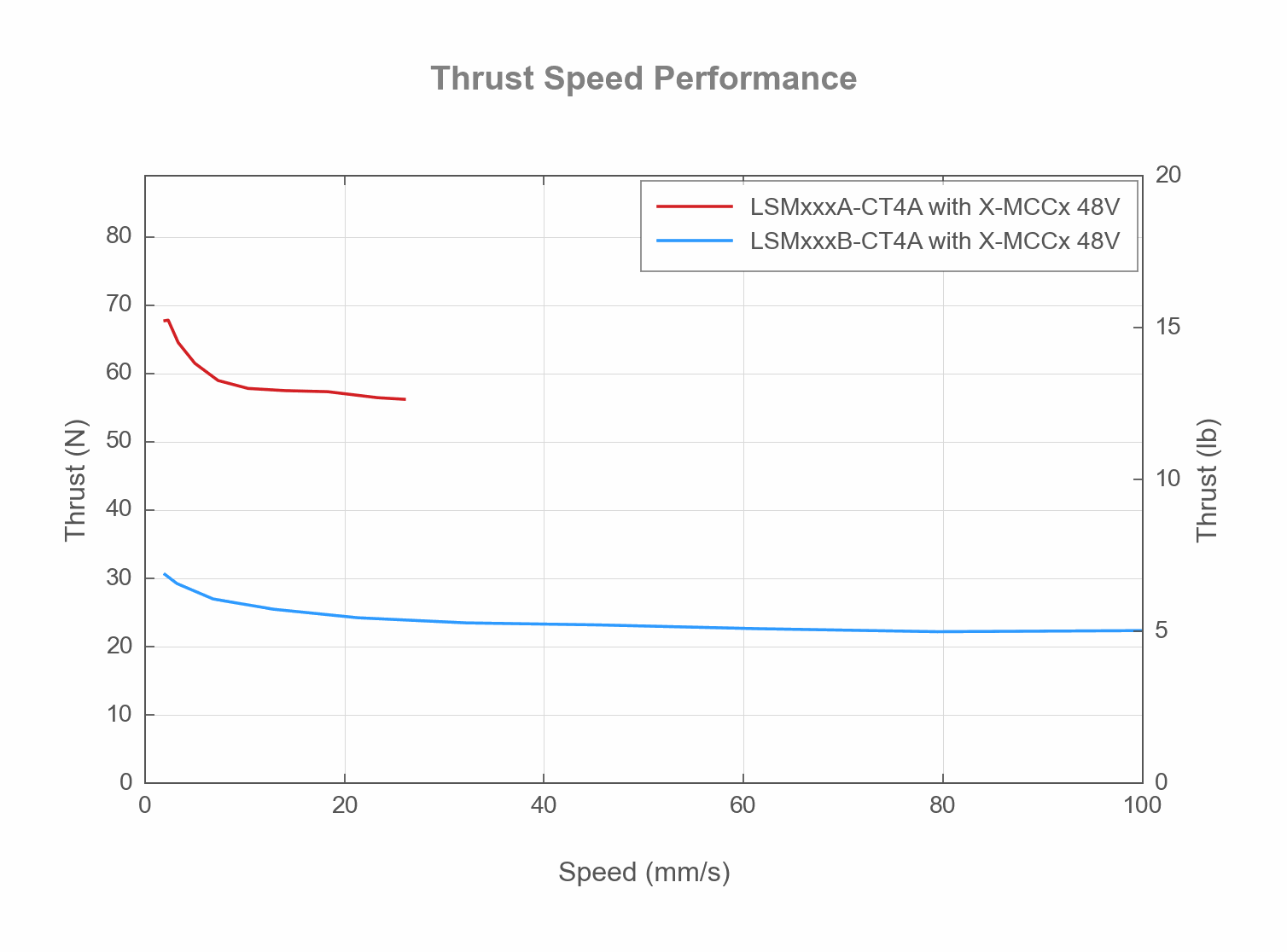

Thrust Speed Performance

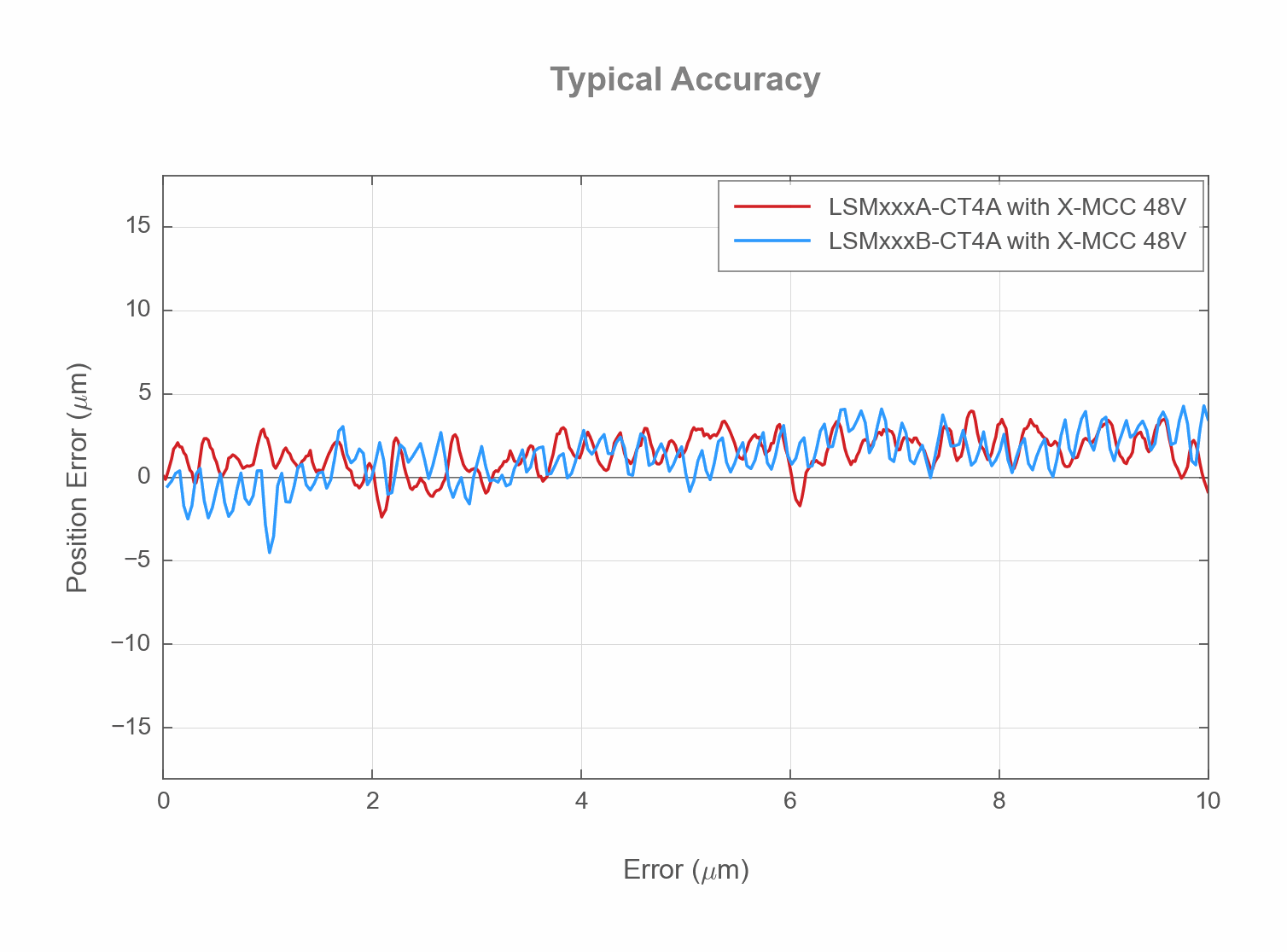

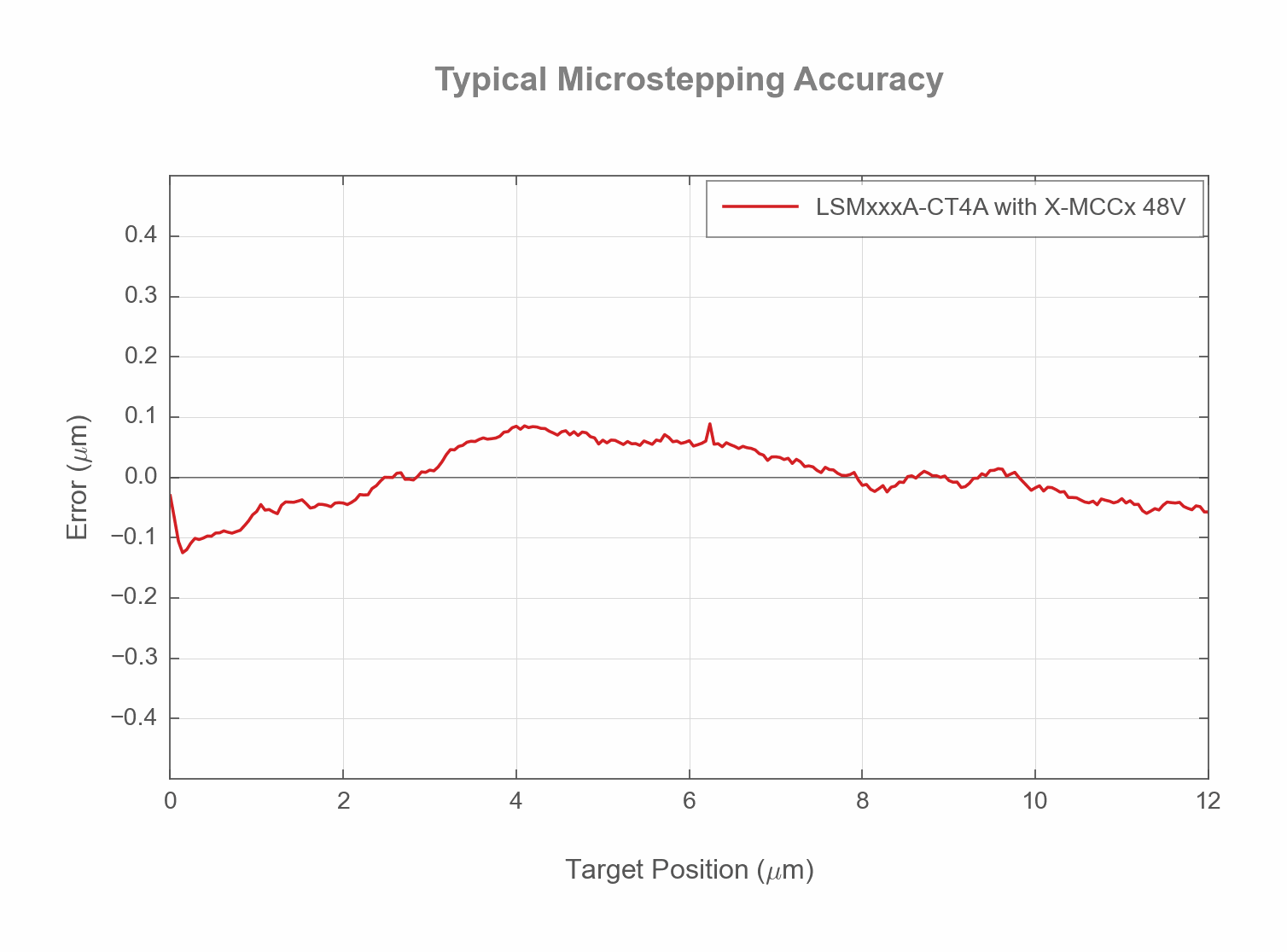

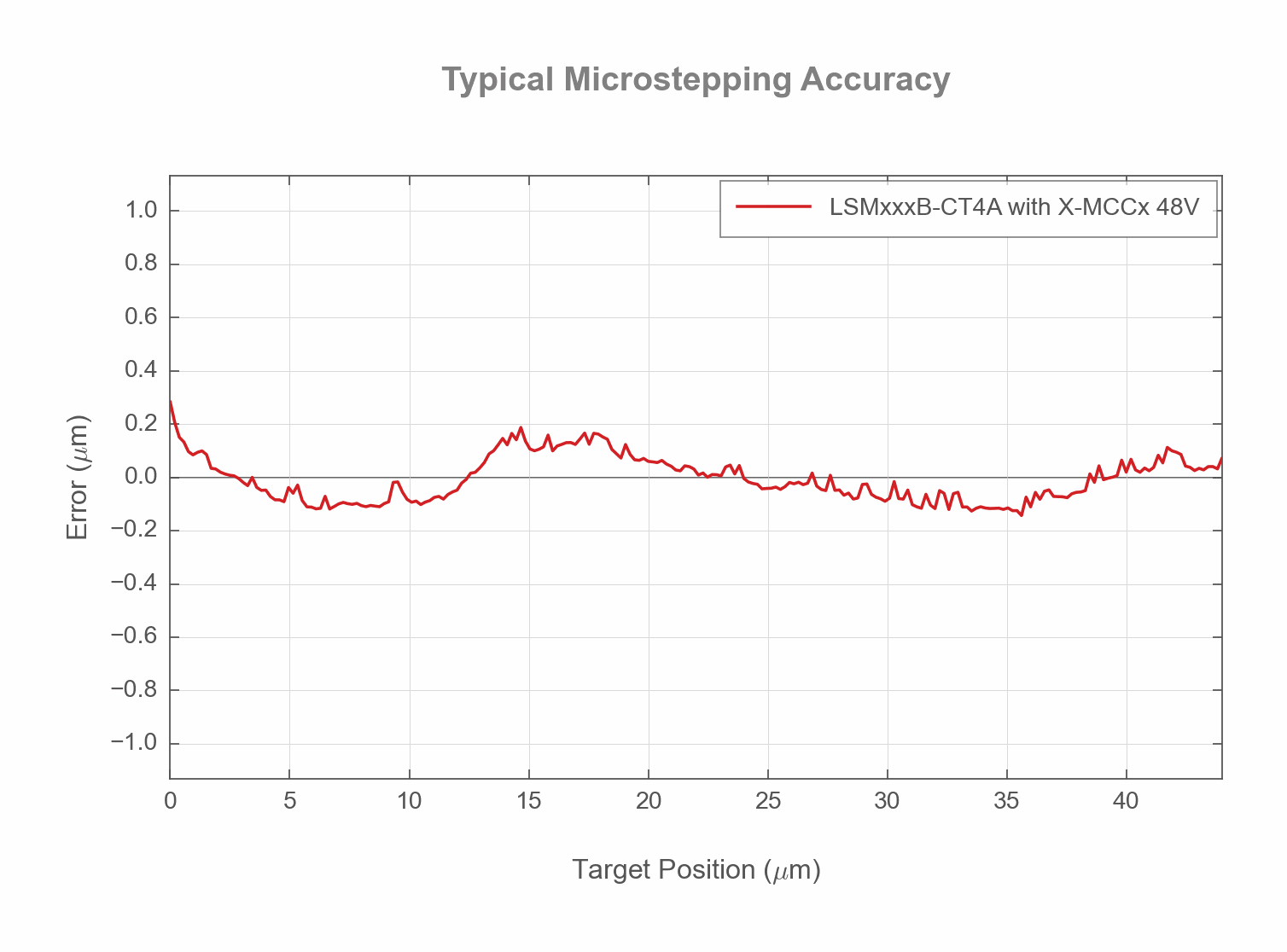

Typical Accuracy

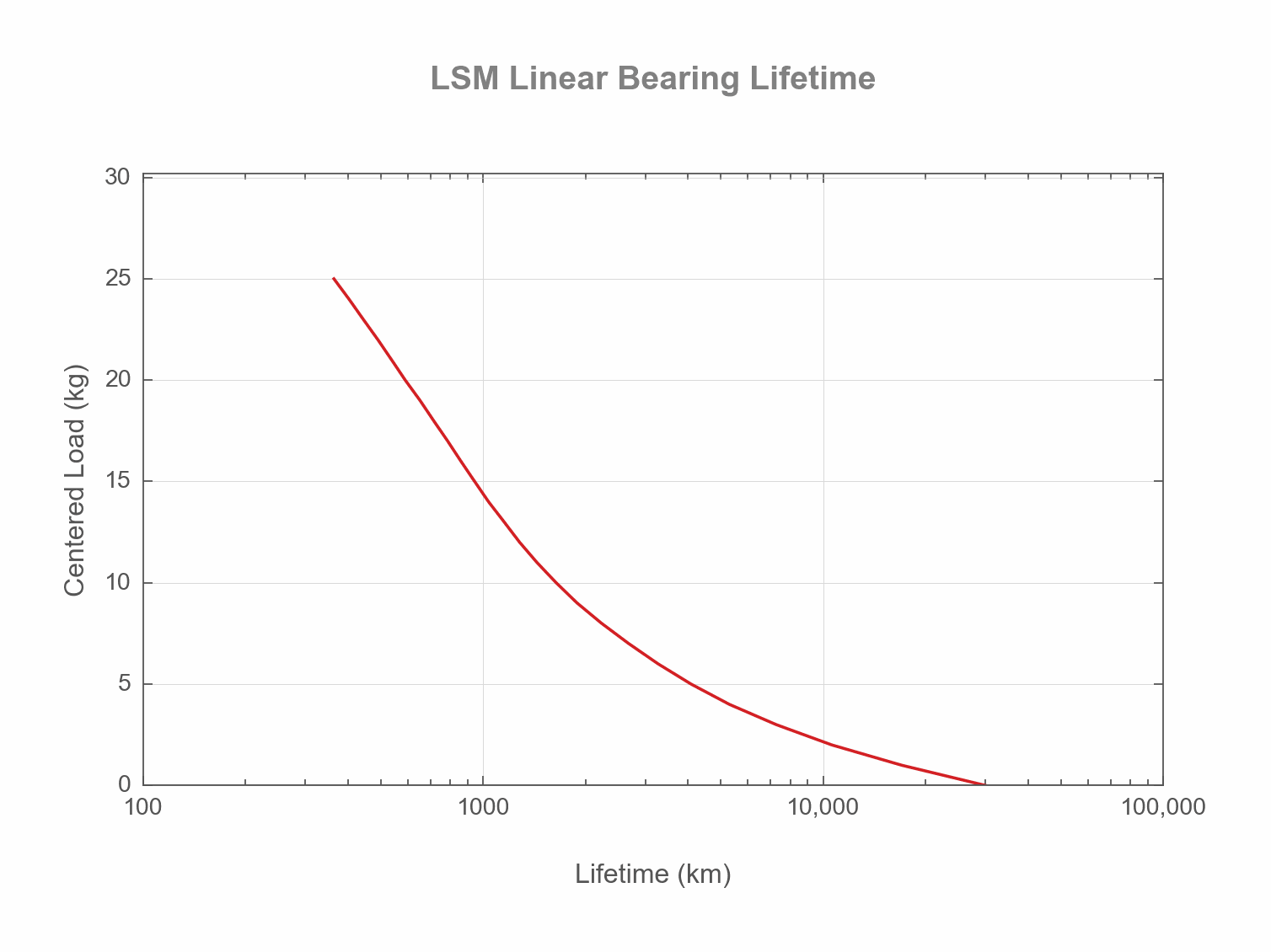

Bearing Lifetime
