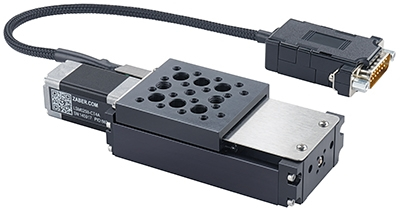

LSM-C Series
Miniature motorized linear stages with dust covers
- 25, 50, 100, 150 and 200 mm travel
- Up to 104 mm/s speed
- Recirculating ball bearing design for high load (25 kg) and long lifetime
- Includes stainless steel dust cover
- Very low profile at only 26.2 mm stage height
- Can be mounted in XY and XYZ configurations
- Designed for use with MCC Family controllers or any 2-phase stepper motor controller
- With AutoDetect, Zaber controllers automatically configure settings for the connected peripheral
- Custom versions available
Have a Question?
Part Numbering & Options
Compatible Accessories
- All LSMs share mounting patterns and can be screwed together directly.
- Mounting options for stacking XY, theta, or tilt systems with Zaber stages are available here LSM Adaptor Plates.
- Mounting options using angle bracket for L-shaped configurations with Zaber stages are available here LSM Angle Brackets.
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| AB103 | Miniature Angle Bracket, 90 Degrees | 1-5 Days | $87 | |
| AP101 | LSM Bottom Adaptor Plate | 1-5 Days | $75 | |
| AP102C | LRM and LSM Metric Top Adaptor Plate | 1-5 Days | $97 |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
