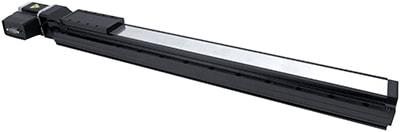

LRT-EC

LRT-EC Series

High load motorized linear stages with built-in motor encoders, dust covers, and optional brakes

100, 250, 500, 750, 1000, 1500 mm travel
Up to 700 mm/s speed and up to 1200 N thrust
300 kg load capacity
Ball screw and lead screw configurations
Includes stainless steel dust covers
High moment stiffness
Built-in, 400 CPR, motor encoder provides slip/stall detection and recovery
Optional integrated power-off brake for vertical applications
Designed for use with an X-MCC Series stepper motor controller or any 2-phase stepper motor controller
With AutoDetect, the X-MCC controller configures its settings automatically for the connected peripheral

Part Numbering & Options

Showing 40 of 40 Parts.

Part Number	Description	Lead Time	Starting Prices (USD) *
LRT0100AL-E08CT3A	Lead-screw Driven \| 100 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$3,668
LRT0100BL-E08CT3A	Lead-screw Driven \| 100 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$3,668
LRT0100BL-BE08CT10A	Lead-screw Driven \| 100 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,417
LRT0100DL-E08CT3A	Lead-screw Driven \| 100 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$3,668
LRT0100DL-BE08CT10A	Lead-screw Driven \| 100 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$4,417
LRT0100HL-E08CT3A	Ball-screw Driven \| 100 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$3,668
LRT0100HL-BE08CT10A	Ball-screw Driven \| 100 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,417
LRT0250AL-E08CT3A	Lead-screw Driven \| 250 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$3,861
LRT0250BL-E08CT3A	Lead-screw Driven \| 250 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$3,861
LRT0250BL-BE08CT10A	Lead-screw Driven \| 250 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,608
LRT0250DL-E08CT3A	Lead-screw Driven \| 250 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$3,861
LRT0250DL-BE08CT10A	Lead-screw Driven \| 250 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$4,608
LRT0250HL-E08CT3A	Ball-screw Driven \| 250 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$3,861
LRT0250HL-BE08CT10A	Ball-screw Driven \| 250 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,608
LRT0500AL-E08CT3A	Lead-screw Driven \| 500 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$4,184
LRT0500BL-E08CT3A	Lead-screw Driven \| 500 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,184
LRT0500BL-BE08CT10A	Lead-screw Driven \| 500 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,932
LRT0500DL-E08CT3A	Lead-screw Driven \| 500 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$4,184
LRT0500DL-BE08CT10A	Lead-screw Driven \| 500 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$4,932
LRT0500HL-E08CT3A	Ball-screw Driven \| 500 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,184
LRT0500HL-BE08CT10A	Ball-screw Driven \| 500 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,932
LRT0750AL-E08CT3A	Lead-screw Driven \| 750 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$4,504
LRT0750BL-E08CT3A	Lead-screw Driven \| 750 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,504
LRT0750BL-BE08CT10A	Lead-screw Driven \| 750 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,253
LRT0750DL-E08CT3A	Lead-screw Driven \| 750 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$4,504
LRT0750DL-BE08CT10A	Lead-screw Driven \| 750 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$5,253
LRT0750HL-E08CT3A	Ball-screw Driven \| 750 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,504
LRT0750HL-BE08CT10A	Ball-screw Driven \| 750 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,253
LRT1000AL-E08CT3A	Lead-screw Driven \| 1000 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$4,827
LRT1000BL-E08CT3A	Lead-screw Driven \| 1000 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,827
LRT1000BL-BE08CT10A	Lead-screw Driven \| 1000 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,575
LRT1000DL-E08CT3A	Lead-screw Driven \| 1000 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$4,827
LRT1000DL-BE08CT10A	Lead-screw Driven \| 1000 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$5,575
LRT1000HL-E08CT3A	Ball-screw Driven \| 1000 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,827
LRT1000HL-BE08CT10A	Ball-screw Driven \| 1000 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,575
LRT1500AL-E08CT3A	Lead-screw Driven \| 1500 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$5,471
LRT1500BL-E08CT3A	Lead-screw Driven \| 1500 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,471
LRT1500BL-BE08CT10A	Lead-screw Driven \| 1500 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$6,220
LRT1500DL-E08CT3A	Lead-screw Driven \| 1500 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$5,471
LRT1500DL-BE08CT10A	Lead-screw Driven \| 1500 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$6,220

Compatible Accessories

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
