LRT-EC Series
High load motorized linear stages with built-in motor encoders, dust covers, and optional brakes
Series Specifications
| Built-in Controller |  |
| Recommended Controller | X-MCC (48 V) Recommended |
| AutoDetect |  |
| Encoder Resolution | 400 CPR (1600 states/rev) |
| Encoder Type | Rotary quadrature encoder |
| Maximum Centered Load | 2940 N (659.3 lb) |
| Maximum Moment (Pitch) | 70 N⋅m (51.7 ft⋅lb) |
| Maximum Moment (Roll) | 120 N⋅m (88.6 ft⋅lb) |
| Maximum Moment (Yaw) | 70 N⋅m (51.7 ft⋅lb) |
| Vertical Runout | < 10 µm (< 0.000394") |
| Horizontal Runout | < 50 µm (< 0.001968") |
| Pitch | 0.015° (0.262 mrad) |
| Roll | 0.02° (0.349 mrad) |
| Yaw | 0.03° (0.523 mrad) |
| Stiffness in Pitch | 1400 N⋅m/° (12 µrad/N⋅m) |
| Stiffness in Roll | 700 N⋅m/° (25 µrad/N⋅m) |
| Stiffness in Yaw | 1200 N⋅m/° (15 µrad/N⋅m) |
| Motor Steps Per Rev | 200 |
| Motor Type | Stepper (2 phase) |
| Motor Rated Current | 3000 mA/phase |
| Motor Winding Resistance | 0.53 ohms/phase |
| Inductance | 2 mH/phase |
| Motor Connection | D-sub 15 |
| Default Resolution | 1/64 of a step |
| Guide Type | Recirculating Ball Linear Guide |
| Limit or Home Sensing | Magnetic home sensor |
| Axes of Motion | 1 |
| Operating Temperature Range | 0 to 50 °C |
| CE Compliant | |
| Vacuum Compatible | |
Part Specifications Comparison
Showing 40 of 40 Parts.
| Part Number | Microstep Size (Default Resolution) | Travel Range | Accuracy (unidirectional) | Repeatability | Backlash | Maximum Speed | Minimum Speed | Speed Resolution | Peak Thrust | Back-driving Force* | Maximum Continuous Thrust | Linear Motion Per Motor Rev | Mechanical Drive System | Maximum Axial Brake Force | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LRT0100AL-E08CT3A | 0.124023438 µm | 100 mm (3.937") | 25 µm (0.000984") | < 4 µm (< 0.000157") | < 12 µm (< 0.000472") | 45 mm/s (1.772"/s) | 0.000076 mm/s (0.000003"/s) | 0.000076 mm/s (0.000003"/s) | 1200 N (269.1 lb) | Non-back-driving | 1200 N (269.1 lb) | 1.5875 mm (0.062") | Precision lead screw | 3.65 kg (8.047 lb) | |
| LRT0100BL-E08CT3A | 0.49609375 µm | 100 mm (3.937") | 25 µm (0.000984") | < 4 µm (< 0.000157") | < 45 µm (< 0.001772") | 175 mm/s (6.890"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 600 N (134.6 lb) | (± 30%) 420 N (94.2 lb) | 600 N (134.6 lb) | 6.35 mm (0.250") | Precision lead screw | 3.65 kg (8.047 lb) | |
| LRT0100BL-BE08CT10A | 0.49609375 µm | 100 mm (3.937") | 25 µm (0.000984") | < 4 µm (< 0.000157") | < 45 µm (< 0.001772") | 175 mm/s (6.890"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 600 N (134.6 lb) | (± 30%) 420 N (94.2 lb) | 600 N (134.6 lb) | 6.35 mm (0.250") | Precision lead screw | 600 N (134.9 lb) | 4.276 kg (9.427 lb) |
| LRT0100DL-E08CT3A | 1.984375 µm | 100 mm (3.937") | 25 µm (0.000984") | < 8 µm (< 0.000315") | < 75 µm (< 0.002953") | 700 mm/s (27.559"/s) | 0.001212 mm/s (0.000048"/s) | 0.001212 mm/s (0.000048"/s) | 200 N (44.9 lb) | (± 30%) 40 N (9.0 lb) | 180 N (40.4 lb) | 25.4 mm (1.000") | Precision lead screw | 3.65 kg (8.047 lb) | |
| LRT0100DL-BE08CT10A | 1.984375 µm | 100 mm (3.937") | 25 µm (0.000984") | < 8 µm (< 0.000315") | < 75 µm (< 0.002953") | 700 mm/s (27.559"/s) | 0.001212 mm/s (0.000048"/s) | 0.001212 mm/s (0.000048"/s) | 200 N (44.9 lb) | (± 30%) 40 N (9.0 lb) | 180 N (40.4 lb) | 25.4 mm (1.000") | Precision lead screw | 180 N (40.5 lb) | 4.276 kg (9.427 lb) |
| LRT0100HL-E08CT3A | 0.390625 µm | 100 mm (3.937") | 45 µm (0.001772") | < 4 µm (< 0.000157") | < 25 µm (< 0.000984") | 240 mm/s (9.449"/s) | 0.000239 mm/s (0.000009"/s) | 0.000239 mm/s (0.000009"/s) | 1200 N (269.1 lb) | (± 30%) 157 N (35.2 lb) | 1200 N (269.1 lb) | 5 mm (0.197") | Precision ball screw | 3.65 kg (8.047 lb) | |
| LRT0100HL-BE08CT10A | 0.390625 µm | 100 mm (3.937") | 45 µm (0.001772") | < 4 µm (< 0.000157") | < 25 µm (< 0.000984") | 240 mm/s (9.449"/s) | 0.000239 mm/s (0.000009"/s) | 0.000239 mm/s (0.000009"/s) | 1200 N (269.1 lb) | (± 30%) 157 N (35.2 lb) | 1200 N (269.1 lb) | 5 mm (0.197") | Precision ball screw | 1200 N (269.8 lb) | 4.276 kg (9.427 lb) |
| LRT0250AL-E08CT3A | 0.124023438 µm | 250 mm (9.843") | 63 µm (0.002480") | < 4 µm (< 0.000157") | < 12 µm (< 0.000472") | 45 mm/s (1.772"/s) | 0.000076 mm/s (0.000003"/s) | 0.000076 mm/s (0.000003"/s) | 1200 N (269.1 lb) | Non-back-driving | 1200 N (269.1 lb) | 1.5875 mm (0.062") | Precision lead screw | 4.441 kg (9.791 lb) | |
| LRT0250BL-E08CT3A | 0.49609375 µm | 250 mm (9.843") | 63 µm (0.002480") | < 4 µm (< 0.000157") | < 45 µm (< 0.001772") | 175 mm/s (6.890"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 600 N (134.6 lb) | (± 30%) 420 N (94.2 lb) | 600 N (134.6 lb) | 6.35 mm (0.250") | Precision lead screw | 4.441 kg (9.791 lb) | |
| LRT0250BL-BE08CT10A | 0.49609375 µm | 250 mm (9.843") | 63 µm (0.002480") | < 4 µm (< 0.000157") | < 45 µm (< 0.001772") | 175 mm/s (6.890"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 600 N (134.6 lb) | (± 30%) 420 N (94.2 lb) | 600 N (134.6 lb) | 6.35 mm (0.250") | Precision lead screw | 600 N (134.9 lb) | 5.067 kg (11.171 lb) |
| LRT0250DL-E08CT3A | 1.984375 µm | 250 mm (9.843") | 63 µm (0.002480") | < 8 µm (< 0.000315") | < 75 µm (< 0.002953") | 700 mm/s (27.559"/s) | 0.001212 mm/s (0.000048"/s) | 0.001212 mm/s (0.000048"/s) | 200 N (44.9 lb) | (± 30%) 40 N (9.0 lb) | 180 N (40.4 lb) | 25.4 mm (1.000") | Precision lead screw | 4.441 kg (9.791 lb) | |
| LRT0250DL-BE08CT10A | 1.984375 µm | 250 mm (9.843") | 63 µm (0.002480") | < 8 µm (< 0.000315") | < 75 µm (< 0.002953") | 700 mm/s (27.559"/s) | 0.001212 mm/s (0.000048"/s) | 0.001212 mm/s (0.000048"/s) | 200 N (44.9 lb) | (± 30%) 40 N (9.0 lb) | 180 N (40.4 lb) | 25.4 mm (1.000") | Precision lead screw | 180 N (40.5 lb) | 5.067 kg (11.171 lb) |
| LRT0250HL-E08CT3A | 0.390625 µm | 250 mm (9.843") | 113 µm (0.004449") | < 4 µm (< 0.000157") | < 25 µm (< 0.000984") | 240 mm/s (9.449"/s) | 0.000239 mm/s (0.000009"/s) | 0.000239 mm/s (0.000009"/s) | 1200 N (269.1 lb) | (± 30%) 157 N (35.2 lb) | 1200 N (269.1 lb) | 5 mm (0.197") | Precision ball screw | 4.441 kg (9.791 lb) | |
| LRT0250HL-BE08CT10A | 0.390625 µm | 250 mm (9.843") | 113 µm (0.004449") | < 4 µm (< 0.000157") | < 25 µm (< 0.000984") | 240 mm/s (9.449"/s) | 0.000239 mm/s (0.000009"/s) | 0.000239 mm/s (0.000009"/s) | 1200 N (269.1 lb) | (± 30%) 157 N (35.2 lb) | 1200 N (269.1 lb) | 5 mm (0.197") | Precision ball screw | 1200 N (269.8 lb) | 5.067 kg (11.171 lb) |
| LRT0500AL-E08CT3A | 0.124023438 µm | 500 mm (19.685") | 125 µm (0.004921") | < 4 µm (< 0.000157") | < 12 µm (< 0.000472") | 45 mm/s (1.772"/s) | 0.000076 mm/s (0.000003"/s) | 0.000076 mm/s (0.000003"/s) | 1200 N (269.1 lb) | Non-back-driving | 1200 N (269.1 lb) | 1.5875 mm (0.062") | Precision lead screw | 5.758 kg (12.694 lb) | |
| LRT0500BL-E08CT3A | 0.49609375 µm | 500 mm (19.685") | 125 µm (0.004921") | < 4 µm (< 0.000157") | < 45 µm (< 0.001772") | 175 mm/s (6.890"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 600 N (134.6 lb) | (± 30%) 420 N (94.2 lb) | 600 N (134.6 lb) | 6.35 mm (0.250") | Precision lead screw | 5.758 kg (12.694 lb) | |
| LRT0500BL-BE08CT10A | 0.49609375 µm | 500 mm (19.685") | 125 µm (0.004921") | < 4 µm (< 0.000157") | < 45 µm (< 0.001772") | 175 mm/s (6.890"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 600 N (134.6 lb) | (± 30%) 420 N (94.2 lb) | 600 N (134.6 lb) | 6.35 mm (0.250") | Precision lead screw | 600 N (134.9 lb) | 6.384 kg (14.074 lb) |
| LRT0500DL-E08CT3A | 1.984375 µm | 500 mm (19.685") | 125 µm (0.004921") | < 8 µm (< 0.000315") | < 75 µm (< 0.002953") | 700 mm/s (27.559"/s) | 0.001212 mm/s (0.000048"/s) | 0.001212 mm/s (0.000048"/s) | 200 N (44.9 lb) | (± 30%) 40 N (9.0 lb) | 180 N (40.4 lb) | 25.4 mm (1.000") | Precision lead screw | 5.758 kg (12.694 lb) | |
| LRT0500DL-BE08CT10A | 1.984375 µm | 500 mm (19.685") | 125 µm (0.004921") | < 8 µm (< 0.000315") | < 75 µm (< 0.002953") | 700 mm/s (27.559"/s) | 0.001212 mm/s (0.000048"/s) | 0.001212 mm/s (0.000048"/s) | 200 N (44.9 lb) | (± 30%) 40 N (9.0 lb) | 180 N (40.4 lb) | 25.4 mm (1.000") | Precision lead screw | 180 N (40.5 lb) | 6.384 kg (14.074 lb) |
| LRT0500HL-E08CT3A | 0.390625 µm | 500 mm (19.685") | 225 µm (0.008858") | < 4 µm (< 0.000157") | < 25 µm (< 0.000984") | 240 mm/s (9.449"/s) | 0.000239 mm/s (0.000009"/s) | 0.000239 mm/s (0.000009"/s) | 1200 N (269.1 lb) | (± 30%) 157 N (35.2 lb) | 1200 N (269.1 lb) | 5 mm (0.197") | Precision ball screw | 5.758 kg (12.694 lb) | |
| LRT0500HL-BE08CT10A | 0.390625 µm | 500 mm (19.685") | 225 µm (0.008858") | < 4 µm (< 0.000157") | < 25 µm (< 0.000984") | 240 mm/s (9.449"/s) | 0.000239 mm/s (0.000009"/s) | 0.000239 mm/s (0.000009"/s) | 1200 N (269.1 lb) | (± 30%) 157 N (35.2 lb) | 1200 N (269.1 lb) | 5 mm (0.197") | Precision ball screw | 1200 N (269.8 lb) | 6.384 kg (14.074 lb) |
| LRT0750AL-E08CT3A | 0.124023438 µm | 750 mm (29.528") | 188 µm (0.007402") | < 4 µm (< 0.000157") | < 12 µm (< 0.000472") | 45 mm/s (1.772"/s) | 0.000076 mm/s (0.000003"/s) | 0.000076 mm/s (0.000003"/s) | 1200 N (269.1 lb) | Non-back-driving | 1200 N (269.1 lb) | 1.5875 mm (0.062") | Precision lead screw | 7.076 kg (15.600 lb) | |
| LRT0750BL-E08CT3A | 0.49609375 µm | 750 mm (29.528") | 188 µm (0.007402") | < 4 µm (< 0.000157") | < 45 µm (< 0.001772") | 175 mm/s (6.890"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 600 N (134.6 lb) | (± 30%) 420 N (94.2 lb) | 600 N (134.6 lb) | 6.35 mm (0.250") | Precision lead screw | 7.076 kg (15.600 lb) | |
| LRT0750BL-BE08CT10A | 0.49609375 µm | 750 mm (29.528") | 188 µm (0.007402") | < 4 µm (< 0.000157") | < 45 µm (< 0.001772") | 175 mm/s (6.890"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 600 N (134.6 lb) | (± 30%) 420 N (94.2 lb) | 600 N (134.6 lb) | 6.35 mm (0.250") | Precision lead screw | 600 N (134.9 lb) | 7.702 kg (16.980 lb) |
| LRT0750DL-E08CT3A | 1.984375 µm | 750 mm (29.528") | 188 µm (0.007402") | < 8 µm (< 0.000315") | < 75 µm (< 0.002953") | 700 mm/s (27.559"/s) | 0.001212 mm/s (0.000048"/s) | 0.001212 mm/s (0.000048"/s) | 200 N (44.9 lb) | (± 30%) 40 N (9.0 lb) | 180 N (40.4 lb) | 25.4 mm (1.000") | Precision lead screw | 7.076 kg (15.600 lb) | |
| LRT0750DL-BE08CT10A | 1.984375 µm | 750 mm (29.528") | 188 µm (0.007402") | < 8 µm (< 0.000315") | < 75 µm (< 0.002953") | 700 mm/s (27.559"/s) | 0.001212 mm/s (0.000048"/s) | 0.001212 mm/s (0.000048"/s) | 200 N (44.9 lb) | (± 30%) 40 N (9.0 lb) | 180 N (40.4 lb) | 25.4 mm (1.000") | Precision lead screw | 180 N (40.5 lb) | 7.702 kg (16.980 lb) |
| LRT0750HL-E08CT3A | 0.390625 µm | 750 mm (29.528") | 338 µm (0.013307") | < 4 µm (< 0.000157") | < 25 µm (< 0.000984") | 150 mm/s (5.905"/s) | 0.000239 mm/s (0.000009"/s) | 0.000239 mm/s (0.000009"/s) | 1200 N (269.1 lb) | (± 30%) 157 N (35.2 lb) | 1200 N (269.1 lb) | 5 mm (0.197") | Precision ball screw | 7.076 kg (15.600 lb) | |
| LRT0750HL-BE08CT10A | 0.390625 µm | 750 mm (29.528") | 338 µm (0.013307") | < 4 µm (< 0.000157") | < 25 µm (< 0.000984") | 150 mm/s (5.905"/s) | 0.000239 mm/s (0.000009"/s) | 0.000239 mm/s (0.000009"/s) | 1200 N (269.1 lb) | (± 30%) 157 N (35.2 lb) | 1200 N (269.1 lb) | 5 mm (0.197") | Precision ball screw | 1200 N (269.8 lb) | 7.702 kg (16.980 lb) |
| LRT1000AL-E08CT3A | 0.124023438 µm | 1000 mm (39.370") | 250 µm (0.009842") | < 4 µm (< 0.000157") | < 12 µm (< 0.000472") | 28 mm/s (1.102"/s) | 0.000076 mm/s (0.000003"/s) | 0.000076 mm/s (0.000003"/s) | 1200 N (269.1 lb) | Non-back-driving | 1200 N (269.1 lb) | 1.5875 mm (0.062") | Precision lead screw | 8.393 kg (18.503 lb) | |
| LRT1000BL-E08CT3A | 0.49609375 µm | 1000 mm (39.370") | 250 µm (0.009842") | < 4 µm (< 0.000157") | < 45 µm (< 0.001772") | 120 mm/s (4.724"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 600 N (134.6 lb) | (± 30%) 420 N (94.2 lb) | 600 N (134.6 lb) | 6.35 mm (0.250") | Precision lead screw | 8.393 kg (18.503 lb) | |
| LRT1000BL-BE08CT10A | 0.49609375 µm | 1000 mm (39.370") | 250 µm (0.009842") | < 4 µm (< 0.000157") | < 45 µm (< 0.001772") | 120 mm/s (4.724"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 600 N (134.6 lb) | (± 30%) 420 N (94.2 lb) | 600 N (134.6 lb) | 6.35 mm (0.250") | Precision lead screw | 600 N (134.9 lb) | 9.019 kg (19.883 lb) |
| LRT1000DL-E08CT3A | 1.984375 µm | 1000 mm (39.370") | 250 µm (0.009842") | < 8 µm (< 0.000315") | < 75 µm (< 0.002953") | 500 mm/s (19.685"/s) | 0.001212 mm/s (0.000048"/s) | 0.001212 mm/s (0.000048"/s) | 200 N (44.9 lb) | (± 30%) 40 N (9.0 lb) | 180 N (40.4 lb) | 25.4 mm (1.000") | Precision lead screw | 8.393 kg (18.503 lb) | |
| LRT1000DL-BE08CT10A | 1.984375 µm | 1000 mm (39.370") | 250 µm (0.009842") | < 8 µm (< 0.000315") | < 75 µm (< 0.002953") | 500 mm/s (19.685"/s) | 0.001212 mm/s (0.000048"/s) | 0.001212 mm/s (0.000048"/s) | 200 N (44.9 lb) | (± 30%) 40 N (9.0 lb) | 180 N (40.4 lb) | 25.4 mm (1.000") | Precision lead screw | 180 N (40.5 lb) | 9.019 kg (19.883 lb) |
| LRT1000HL-E08CT3A | 0.390625 µm | 1000 mm (39.370") | 450 µm (0.017716") | < 4 µm (< 0.000157") | < 25 µm (< 0.000984") | 95 mm/s (3.740"/s) | 0.000239 mm/s (0.000009"/s) | 0.000239 mm/s (0.000009"/s) | 1200 N (269.1 lb) | (± 30%) 157 N (35.2 lb) | 1200 N (269.1 lb) | 5 mm (0.197") | Precision ball screw | 8.393 kg (18.503 lb) | |
| LRT1000HL-BE08CT10A | 0.390625 µm | 1000 mm (39.370") | 450 µm (0.017716") | < 4 µm (< 0.000157") | < 25 µm (< 0.000984") | 95 mm/s (3.740"/s) | 0.000239 mm/s (0.000009"/s) | 0.000239 mm/s (0.000009"/s) | 1200 N (269.1 lb) | (± 30%) 157 N (35.2 lb) | 1200 N (269.1 lb) | 5 mm (0.197") | Precision ball screw | 1200 N (269.8 lb) | 9.019 kg (19.883 lb) |
| LRT1500AL-E08CT3A | 0.124023438 µm | 1500 mm (59.055") | 375 µm (0.014764") | < 4 µm (< 0.000157") | < 12 µm (< 0.000472") | 13 mm/s (0.512"/s) | 0.000076 mm/s (0.000003"/s) | 0.000076 mm/s (0.000003"/s) | 1200 N (269.1 lb) | Non-back-driving | 1200 N (269.1 lb) | 1.5875 mm (0.062") | Precision lead screw | 11.028 kg (24.313 lb) | |
| LRT1500BL-E08CT3A | 0.49609375 µm | 1500 mm (59.055") | 375 µm (0.014764") | < 4 µm (< 0.000157") | < 45 µm (< 0.001772") | 55 mm/s (2.165"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 600 N (134.6 lb) | (± 30%) 420 N (94.2 lb) | 600 N (134.6 lb) | 6.35 mm (0.250") | Precision lead screw | 11.028 kg (24.313 lb) | |
| LRT1500BL-BE08CT10A | 0.49609375 µm | 1500 mm (59.055") | 375 µm (0.014764") | < 4 µm (< 0.000157") | < 45 µm (< 0.001772") | 55 mm/s (2.165"/s) | 0.000303 mm/s (0.000012"/s) | 0.000303 mm/s (0.000012"/s) | 600 N (134.6 lb) | (± 30%) 420 N (94.2 lb) | 600 N (134.6 lb) | 6.35 mm (0.250") | Precision lead screw | 600 N (134.9 lb) | 11.654 kg (25.693 lb) |
| LRT1500DL-E08CT3A | 1.984375 µm | 1500 mm (59.055") | 375 µm (0.014764") | < 8 µm (< 0.000315") | < 75 µm (< 0.002953") | 225 mm/s (8.858"/s) | 0.001212 mm/s (0.000048"/s) | 0.001212 mm/s (0.000048"/s) | 200 N (44.9 lb) | (± 30%) 40 N (9.0 lb) | 180 N (40.4 lb) | 25.4 mm (1.000") | Precision lead screw | 11.028 kg (24.313 lb) | |
| LRT1500DL-BE08CT10A | 1.984375 µm | 1500 mm (59.055") | 375 µm (0.014764") | < 8 µm (< 0.000315") | < 75 µm (< 0.002953") | 225 mm/s (8.858"/s) | 0.001212 mm/s (0.000048"/s) | 0.001212 mm/s (0.000048"/s) | 200 N (44.9 lb) | (± 30%) 40 N (9.0 lb) | 180 N (40.4 lb) | 25.4 mm (1.000") | Precision lead screw | 180 N (40.5 lb) | 11.654 kg (25.693 lb) |

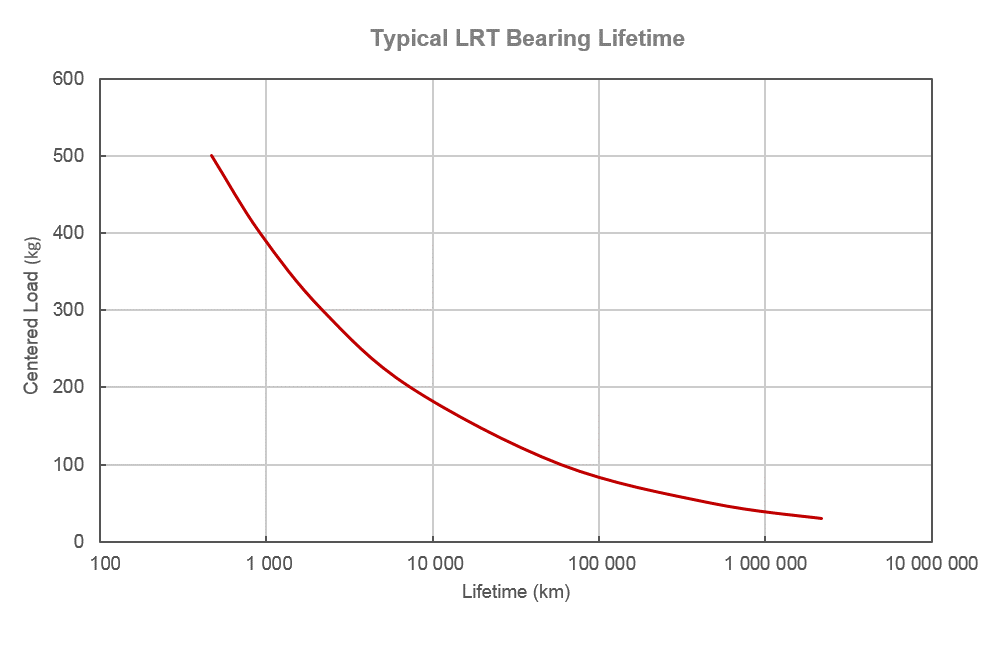

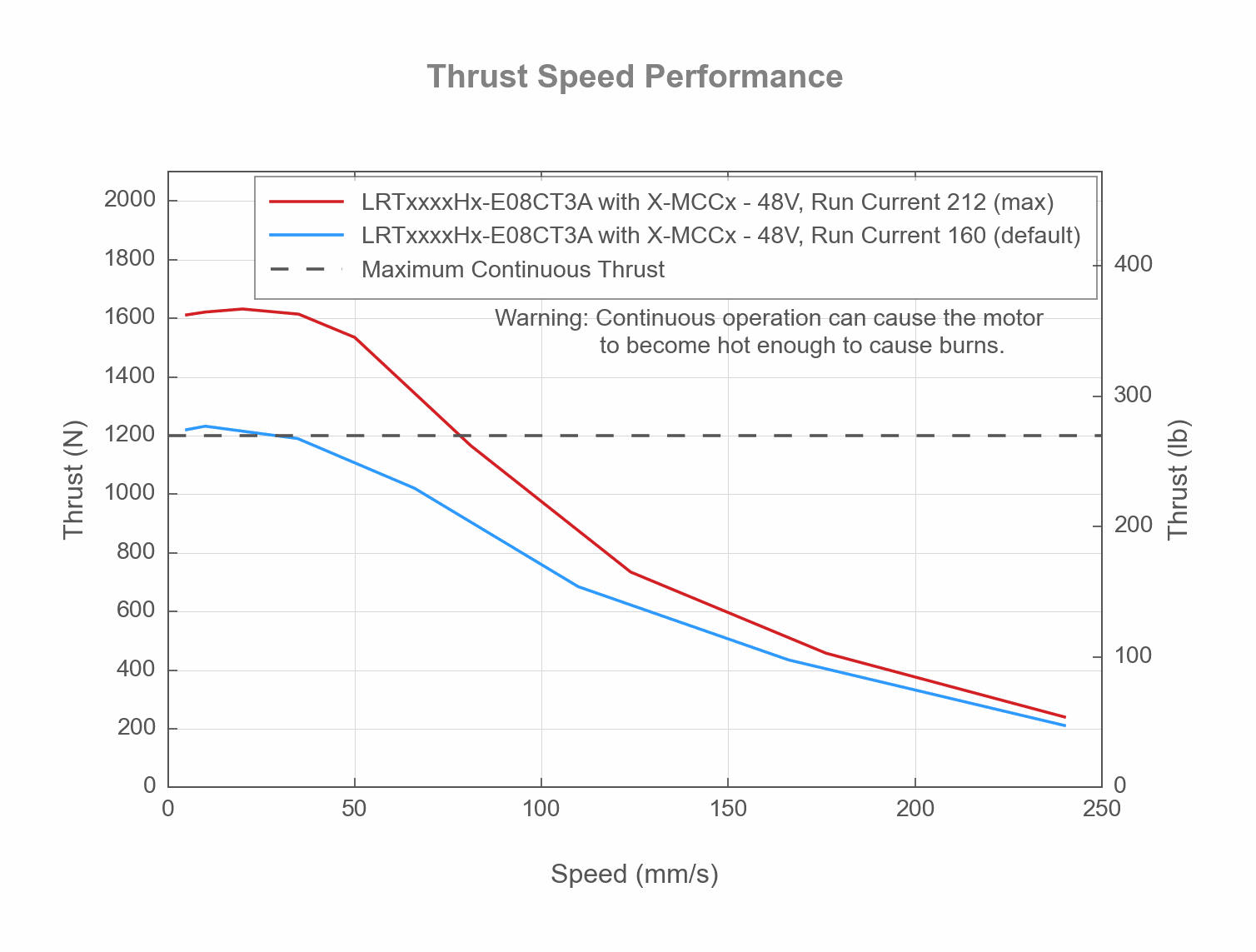

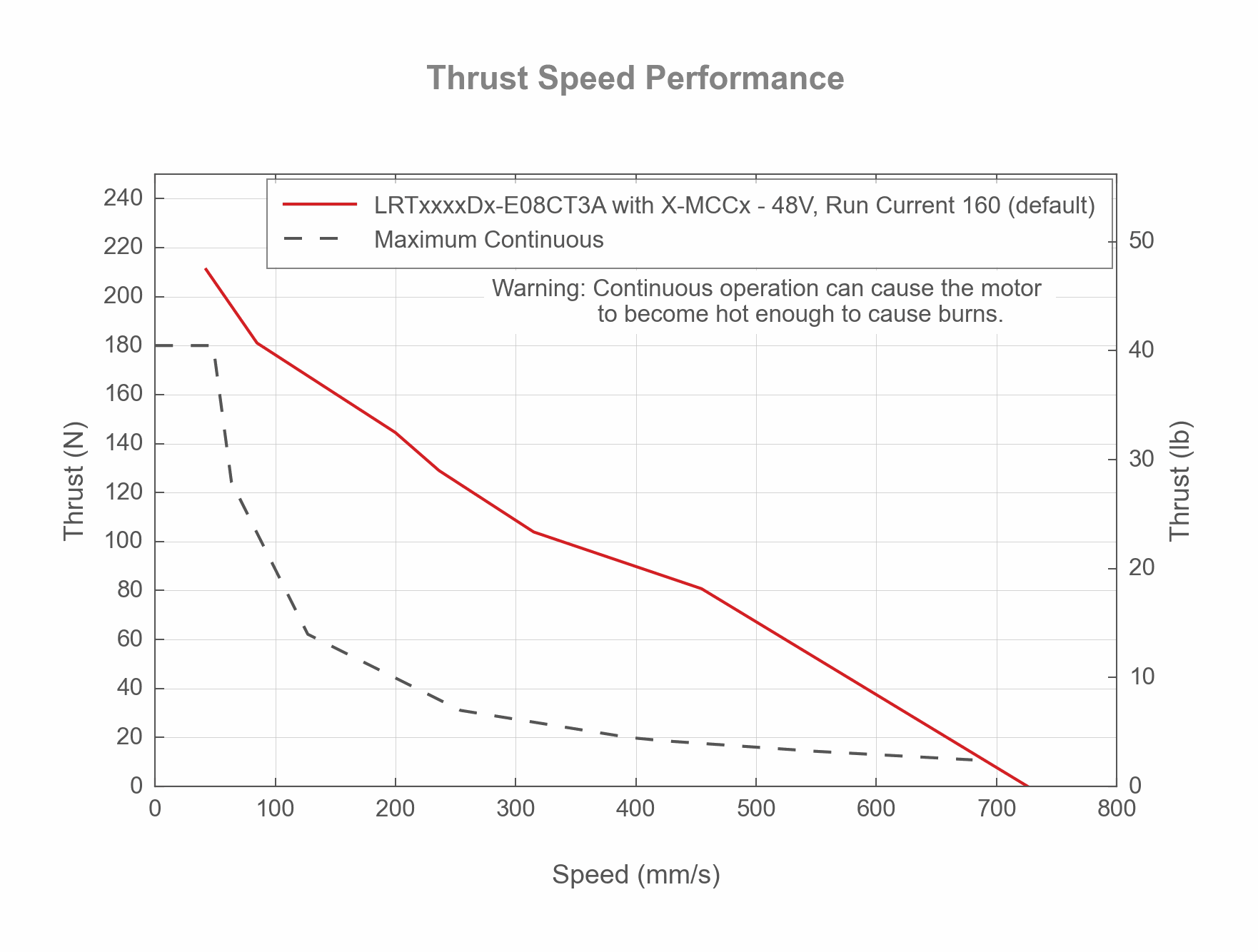

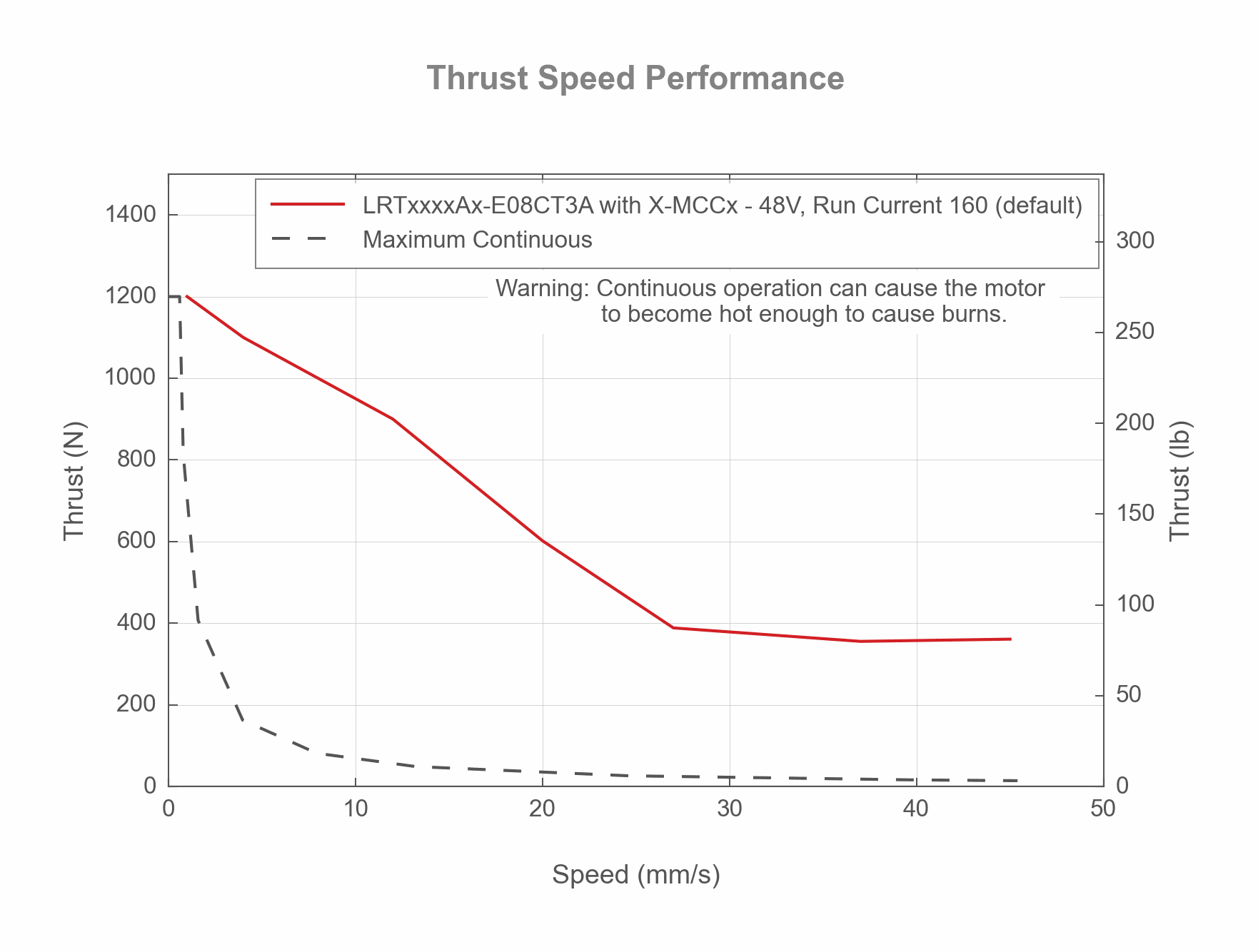

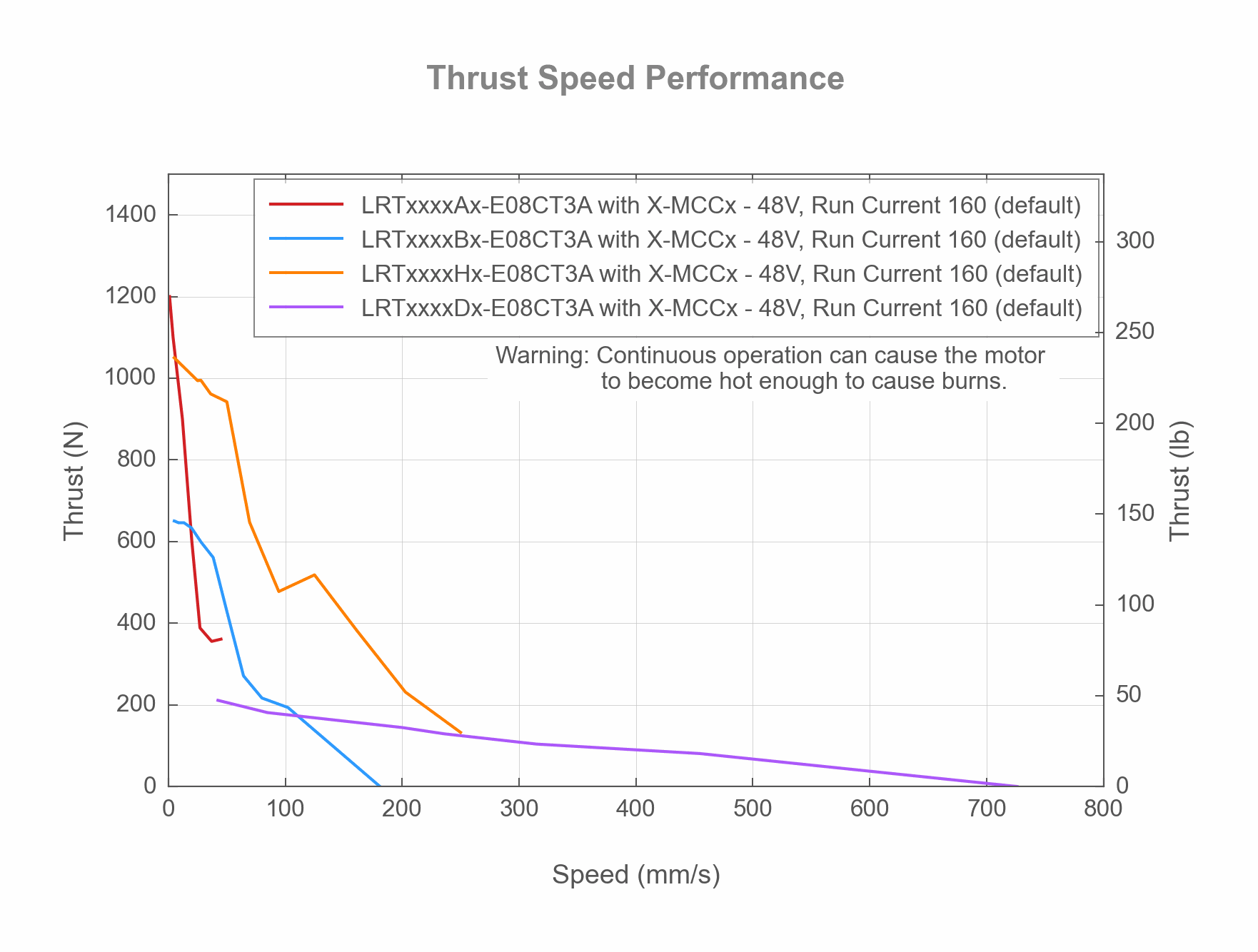

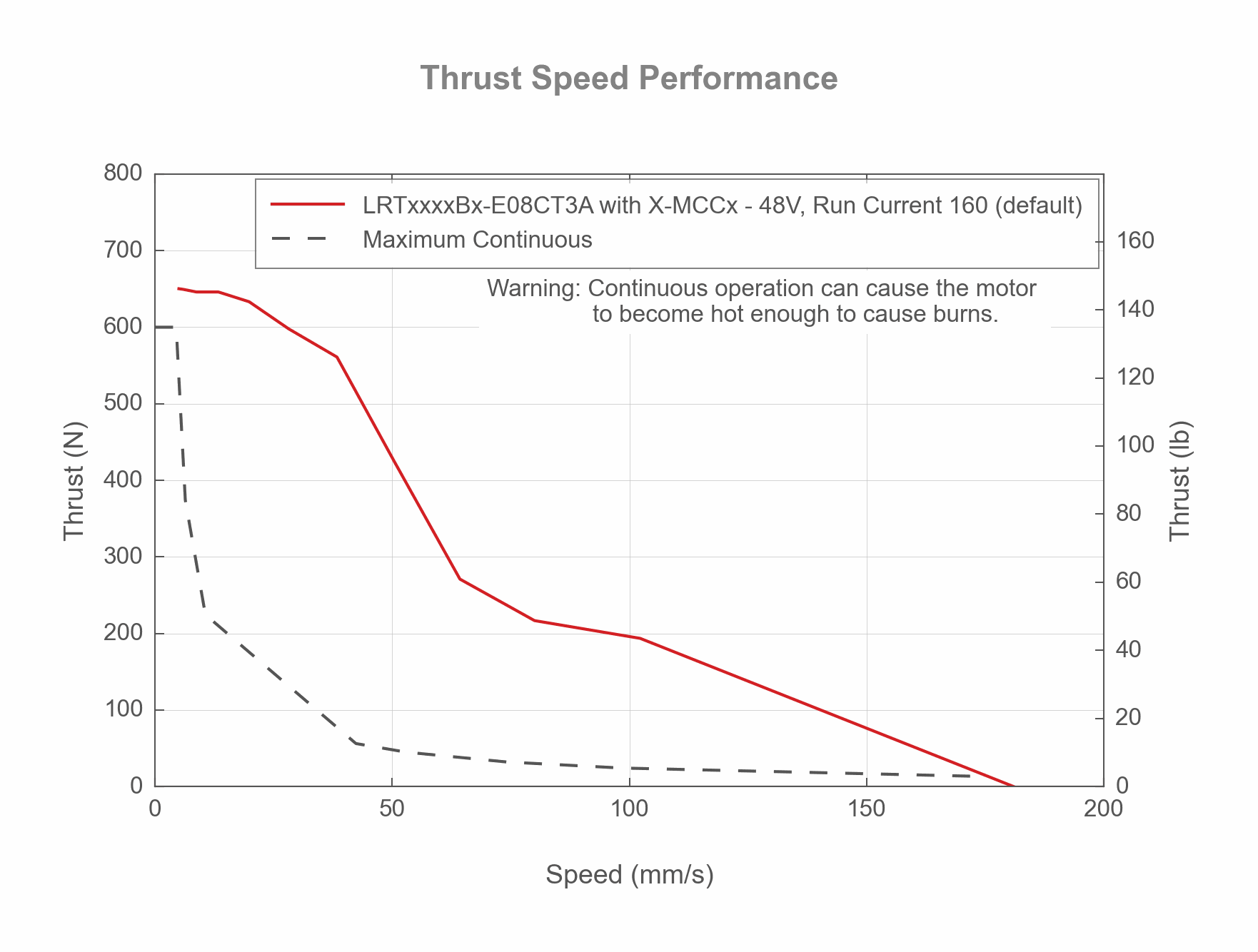

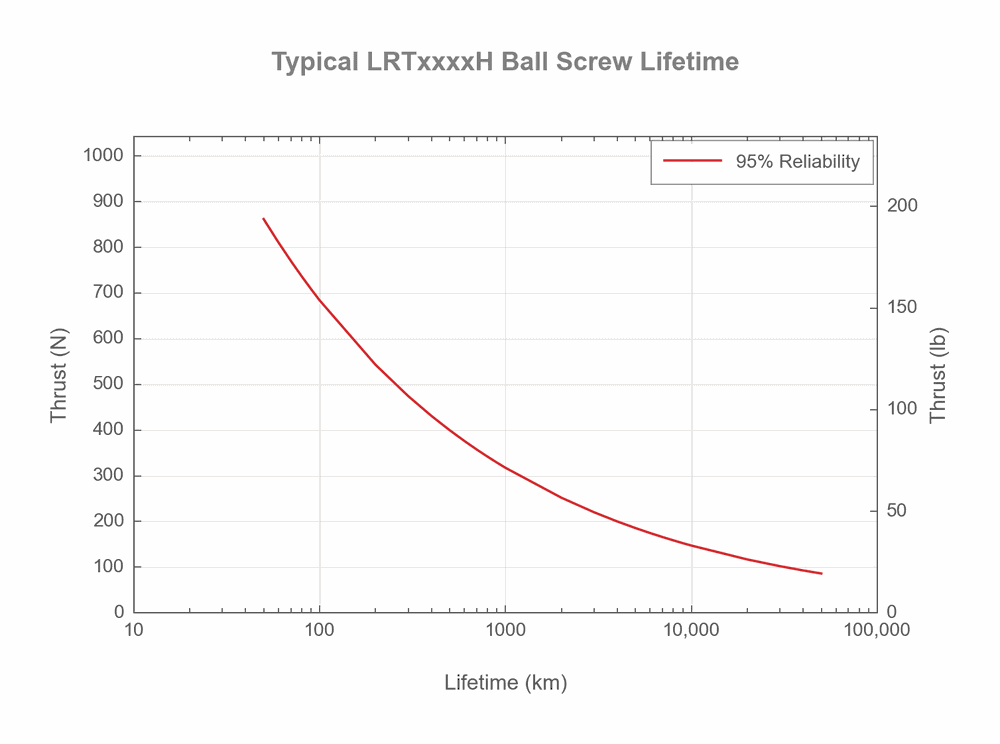

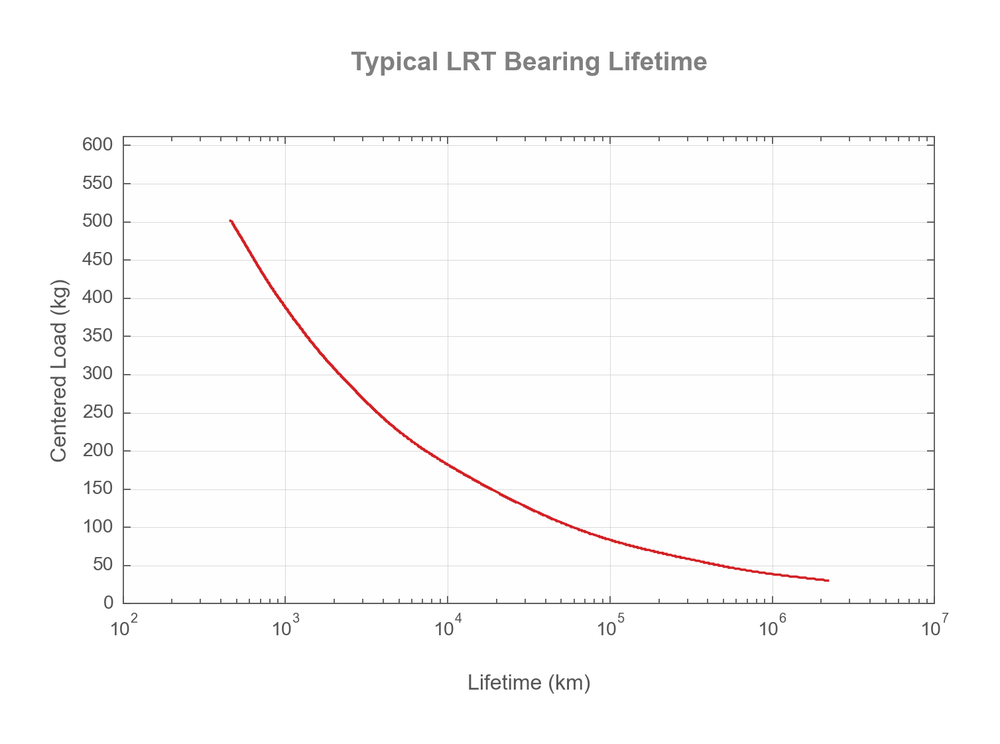

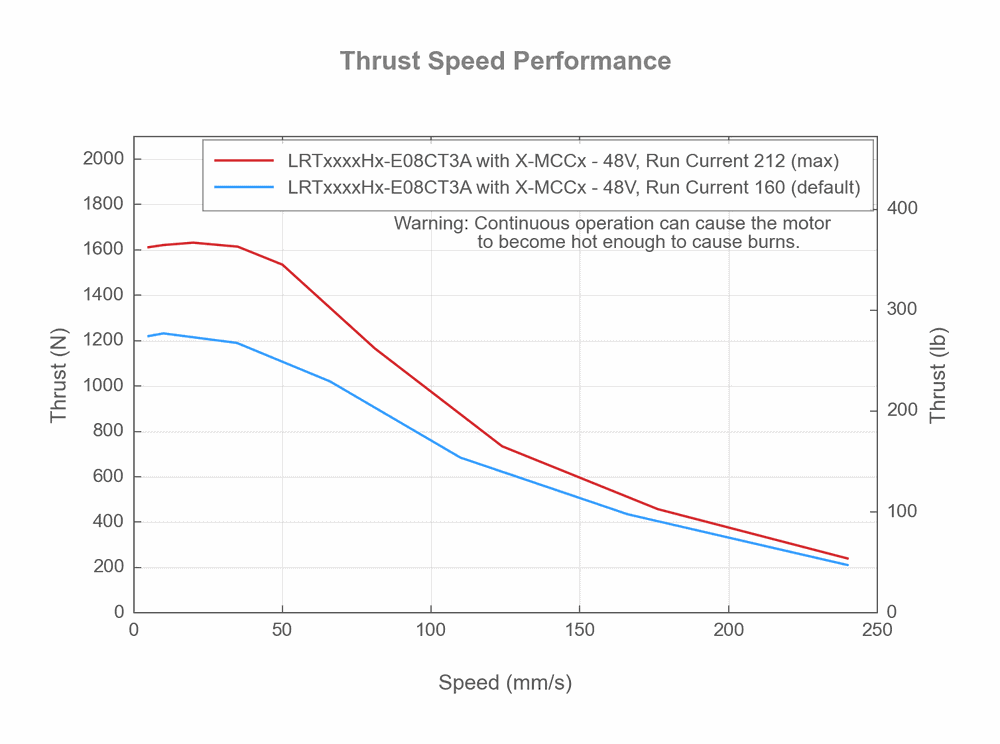

Specification Charts & Notes
Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).
