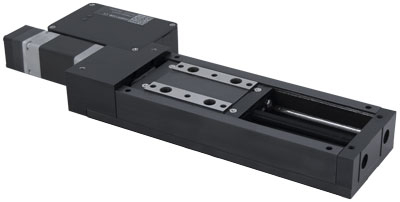

LRM-E Series
Miniature, steel motorized linear stages with built-in motor encoders
- 25, 50, 100, 150, 200 mm travel
- Up to 8 µm accuracy and 50 nm resolution
- 50 kg load capacity
- Hardened steel construction and integrated recirculating ball bearing guide provide exceptional stiffness and thermal stability
- Encoder position feedback with slip/stall detection and automatic recovery
- Designed for use with MCC Family controllers or any 2-phase stepper motor controller
- With AutoDetect, Zaber controllers automatically configure settings for the connected peripheral
Have a Question?
Contact us for device selection, troubleshooting & more!
Response time promise: 1 business day
Have a Question?
Filter By Feature
Choose one or more options below to filter the parts table.
LRMTravel: 025, not selectedLead Screw Options: A, not selected-Encoder Options: E03Connector: T3A
Showing 10 of 10 parts.Lead Screw Options
Encoder Options
Connector
Compatible Accessories
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| AB104 | Angle Bracket, 90 Degrees, Large, Metric | 1-5 Days | $194 | |
| AB90M | Angle Bracket, 90 Degrees, Metric Mounting Holes | 1-5 Days | $141 | |
| AP102C | LRM and LSM Metric Top Adaptor Plate | 1-5 Days | $97 | |
| AP132 | LRM Top Plate, 3 mm | 1-5 Days | $47 |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
