X-GSM Series

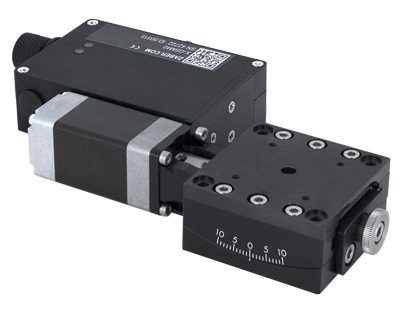

Motorized goniometers with built-in controllers
About This Series
Zaber's X-GSM Series devices are computer-controlled, motorized goniometers with a compact size and built-in controller. They are stand-alone units requiring only a standard 48 V power supply. An indexed knob provides convenient manual control for versatile operation even without a computer. These stages connect to the RS-232 port or USB port of any computer, and they can be daisy-chained with any other Zaber products. The daisy-chain also shares power, making it possible for multiple X-Series products to share a single power supply. Convenient locking, 4-pin, M8 connectors on the unit allow for secure connection between units. These stages are excellent for applications where a small profile is required. They can mount to a flat surface or stack together to share a common centre of rotation for two axes of angular motion. Like all of Zaber's products, the X-GSM Series is designed to be 'plug and play' and very easy to set up and operate.
- An indexed knob provides convenient manual control.
- Integrated stepper motor controller and motor driver allows for easy-to-use control.
- 200 step per revolution stepper motor, microstepped up to 256x to provide smooth and precise motion.
- Control all units in the daisy-chain via serial port (with a locking X-SDC cable) or USB (with an X-USBDC cable).
- Daisy-chain additional units with a locking X-DC02 cable or X-DC06 cable. Power can also be shared in the chain.
- Crossed roller bearings for smooth motion and high stiffness.
- The interlocking alignment system makes it easy to stack two stages.
- M2 (20 mm pattern) and M3 (32 mm pattern) mounting holes provided.
- The GSM60 and the GSM40 stages can be stacked together to share a common centre of rotation, 40 mm above the top stage.
- An additional knob for coarse positioning without power.
Easy Set-Up
Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the Zaber device to your computer via USB or RS-232 port.
- Connect the power supply to your Zaber device.
- Send instructions or automate your set-up using the Zaber Launcher.
For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
