Goniometer Stages
- With the built-in controller, share a single power supply with up to 3 devices and daisy-chain data with up to 99 devices; stand-alone controllers also available
- Optional motor encoders provide slip/stall detection and recovery
- 40 mm and 60 mm centre of rotation, 30 N load capacity, < 0.005° repeatability, and speed up to 30°/s
Compact Form Factor
Easy Multi-Axis Systems
User-Friendly
Software & API
Plug & Play in Minutes
Shipping
Within 1 Week

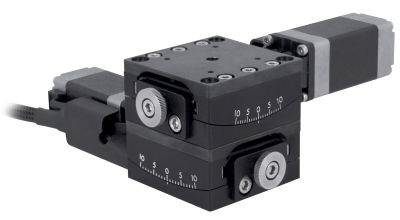

A motorized goniometer, also referred to as a motorized goniometer stage, goniometric stage, or tilt stage, is defined as a device that provides precise angular positioning of an object within a small range, about a single axis of rotation.
Zaber offers a variety of motorized goniometers with optional built-in controllers and motor encoders.
GSM Family — Goniometers
Starting Price
$2,009 (USD)
Representative Image
- 40 mm and 60 mm centre of rotation options allow for two axes of motion about a common centre of rotation
- Crossed roller bearings for smooth motion and high stiffness
- Vacuum rated versions available
- Built-in controller or motor-only models
| Range | Best Accuracy | Best Backlash | Highest Speed | Load |
|---|---|---|---|---|
+/-10° | 0.06° (1.047000 mrad) | < 0.01° (< 0.174 mrad) | 30°/s (5 rpm) | 30 N (6.7 lb) |
