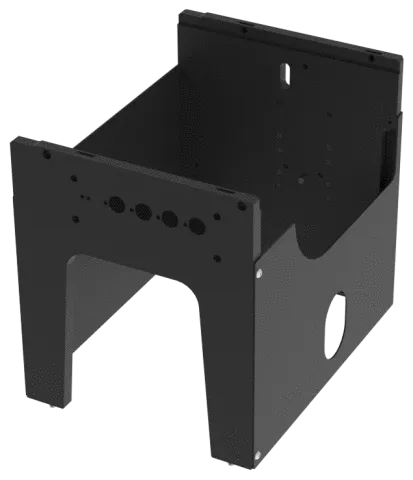

AP179: Inverted Microscope Stage Supports and Side Panels for MVR, 254.9 mm Height (Includes 2 Stage Supports and 2 Side Panels)

These brackets allow an ASR or ADR XY microscope stage to be mounted to the AP178 microscope baseplate or to a standard M6 breadboard. These brackets locate the sample plane of the XY stage at the nominal focal plane of the MKR025B microscope core. The rear stage support has alignment pins and mounting holes to precisely locate and attach both the MKR025B and an MLT transmitted illuminator. The front stage support has features that allow an X-LCA4 4-channel LED controller to be mounted inside the support. These stage support brackets are used in our MVR inverted microscopes, which can be configured using our online configurator tool.
