Nucleus® MKR fluorescence microscope cores

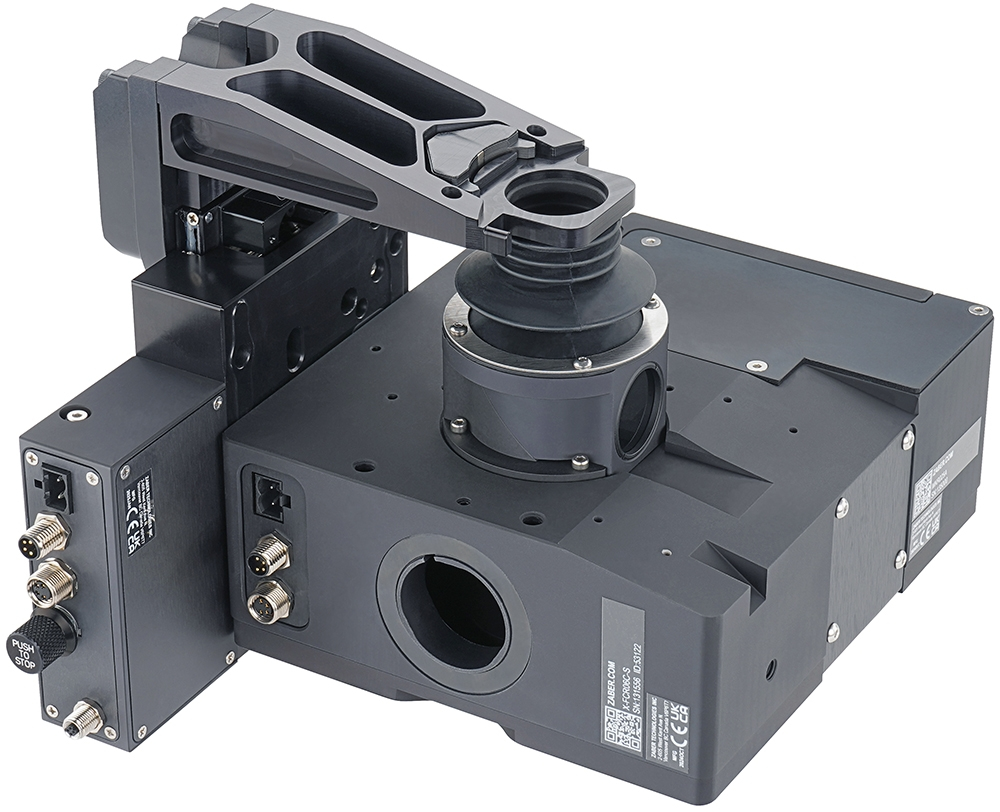

Image is representative of the MKR Series and may not match the selected variant.
MKR025B
Starting Price: $14,585
Standard Lead Time: 5-15 Days
Purchase Options
Stand-alone
Total Price
$14,585 (USD) *
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
MKR025B Specifications
| Communication Interface | RS-232 |
| Communication Protocol | Zaber ASCII |
| Data Cable Connection | Locking 4-pin M8 |
| Compatible Optic Diameter | 25 |
| Number of Optics | 6 |
| Adjacent Optic Change Time | 350 ms |
| Power Supply | 24-48 VDC |
| Power Plug | 2-pin screw terminal |
| Maximum Current Draw | 3300 mA |
| Manual Control | Indexed knob with push switch |
| LED Indicators |  |
| Operating Temperature Range | 0 to 40 °C |
| CE Compliant | |
| Vacuum Compatible |  |
| Weight | 3.5 kg (7.716 lb) |
