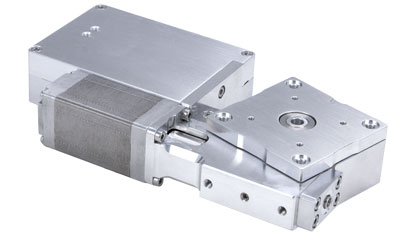

X-RSM-SV2 Series
High vacuum light load rotary stages with built-in controllers
- Vacuum compatible to 10-6 Torr
- 0.02° repeatability
- 4 mm aperture
- 21 mm total height
- Worm gear driven for continuous rotation
- Integrated stepper motor controller and motor driver allows for easy-to-use control
- Only 4 feedthrough wires required to control all units in the daisy-chain via serial port (with an X-PIB adaptor)
Have a Question?
Part Numbering & Options
| Part Number | Description | Lead Time | Starting Prices (USD) * | Add to Cart | Add To Compare |
|---|---|---|---|---|---|
| X-RSM40B-SV2 | 40 mm Stage Top | Medium Resolution | 7-10 Days | $5,990 |
Compatible Accessories
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| X-PIB | Daisy-chain Power Injector, X-Series | 1-5 Days | $92 |
- All RSMs share mounting patterns and can be screwed together directly.
- Mounting options for stacking XY, theta, or tilt systems with Zaber stages are available here RSM Adaptor Plates.
- Mounting options using angle bracket for L-shaped configurations with Zaber stages are available here RSM Angle Brackets.
| Accessory | Description | Lead Time | Price (USD) * | Add to Cart |
|---|---|---|---|---|
| AP135-V | Goniometer Adaptor Plate, Vacuum Compatible | 1-5 Days | $59 |
