(Discontinued) NM Series
Stepper motors
This series has been discontinued and is no longer available. The NMS series is the recommended replacement model. Please contact us with any questions on the differences.

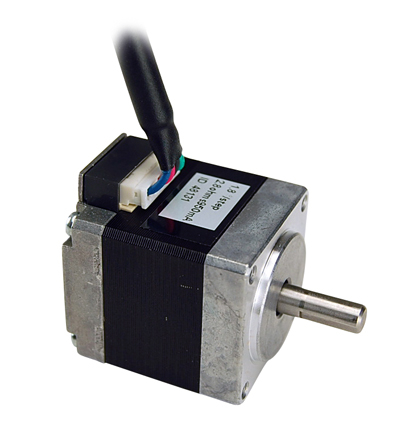

Image is representative of the NM Series and may not match the selected variant.
NM11AS-T4
NEMA Size 11 X 32 mm | Single Shaft
Starting Price: NA
Standard Lead Time: Discontinued
Purchase Options
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
NM11AS-T4 Specifications
| Microstep Size (Default Resolution) | 0.028125° (490.866 µrad) |
| Built-in Controller |  |
| Recommended Controller | X-MCB1 (24 V) Recommended |
| AutoDetect | |
| Maximum Speed | 14600°/s (2433 rpm) |
| Minimum Speed | 0.017172°/s (299.703 µrad/s) |
| Speed Resolution | 0.017172°/s (299.703 µrad/s) |
| Encoder Type | |
| Maximum Torque | 5.0 N⋅cm (7.1 oz⋅in) |
| Motor Steps Per Rev | 200 |
| Motor Type | Stepper (2 phase) |
| Motor Rated Current | 670 mA/phase |
| Motor Winding Resistance | 5.6 ohms/phase |
| Motor Winding Inductance | 4.0 mH/phase |
| Motor Rated Power | 5 Watts |
| Motor Connection | D-sub 15 |
| Motor Rotor Inertia | 9 g⋅cm2 |
| Default Resolution | 1/64 of a step |
| Motor Frame Size | 11 |
| Motor Shaft Style | Single |
| Limit or Home Sensing | Magnetic home sensor |
| Mounting Interface | 4 M2.5 tapped holes 23 mm apart |
| Operating Temperature Range | 0 to 75 °C |
| CE Compliant |  |
| Vacuum Compatible | |
| Weight | 0.12 kg (0.265 lb) |
Specification Charts & Notes
Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).
