(Discontinued) NM Series

Stepper motors

OVERVIEWFEATURESSPECIFICATIONSSUPPORT & DRAWINGS (PNG, STEP, CAD)

About This Series

These motors are available in standard NEMA sizes (8, 11, 17, 23, & 34) and include 30 cm of cabled wired to a D-sub 15 connector for use with our X-MCB1 Series stepper motor controller, which must be purchased separately. A detachable home sensor and small magnet are included.

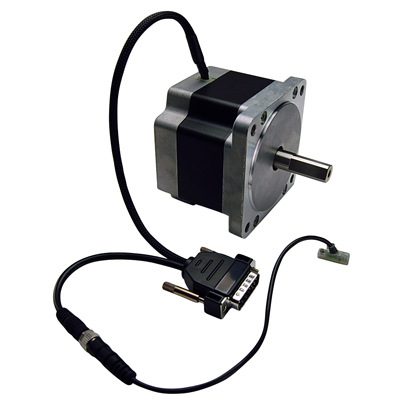

Default image for https://www.zaber.com/products/stepper-motors/NM/features?sr=1
1 2 3 4
  1. Choose from a range of standard NEMA sized stepper motors.
  2. Home sensor (HSM8) plugs into assembly via M8 connector.
  3. D-sub 15 connector plugs directly into X-MCB1 controller.
  4. Home sensor (HSM8) and magnet included with motor enable precision detection of home position.

Easy Set-Up

Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:

  1. Connect the controller to your computer via USB or RS-232 port.
  2. Connect the controller to the peripheral and plug in the power supply.
  3. Send instructions or automate your set-up using the Zaber Launcher.
Photo instructions of Daisy-Chaining Peripherals

For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.

For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
