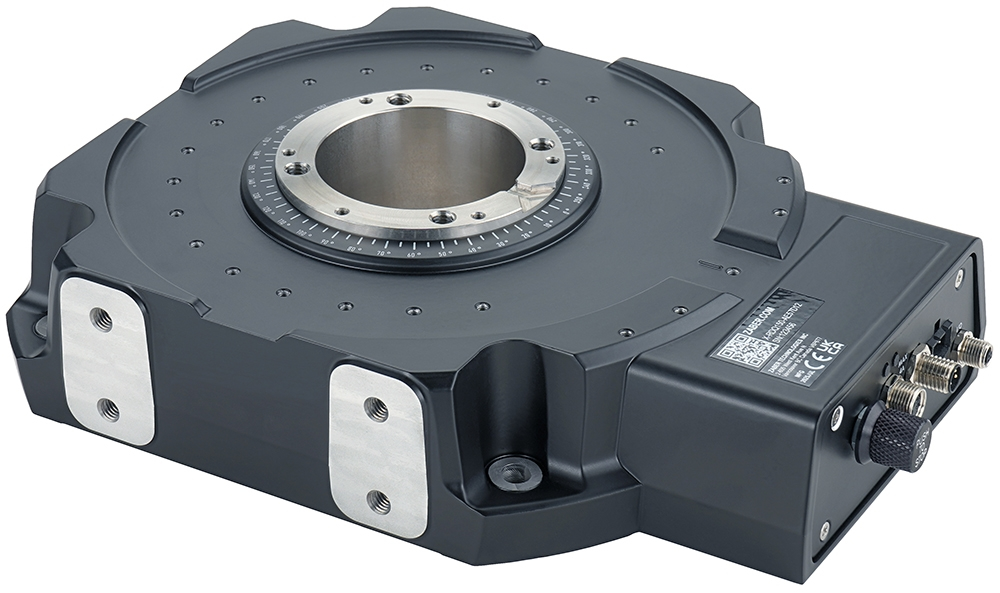

X-RDQ-AE Series
Precision, High Speed Direct Drive Rotary Stages with Built-in Controllers and Direct Encoders
- Contactless direct drive motor for high speed silent operation and long lifetime applications
- 0.01 arc second encoder resolution for optimal accuracy and repeatability
- Top speed up to 450 RPM and peak torque up to 5.8 Nm
- Minimum step size down to 1 µrad
- 50.8 mm (2") rotating aperture with 10 kg centered load capacity
- Built-in controller; daisy-chains with other Zaber products
Have a Question?
Part Numbering & Options
| Part Number | Description | Lead Time | Starting Prices (USD) * | Add to Cart | Add To Compare |
|---|---|---|---|---|---|
| X-RDQ150-AE57D12 | Direct Drive Rotary Stage | Built-in Controller | Analog Rotary Encoder | With IO | 7-10 Days | $6,405 |
Compatible Accessories
- Mounting options for stacking XY, theta, or tilt systems with Zaber stages are available here RDQ Adaptor Plates.
- Mounting options using angle bracket for L-shaped configurations with Zaber stages are available here RDQ Angle Brackets.
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
