(Discontinued) LMG Series
Motorized goniometers
This series has been discontinued and is no longer available. Please contact us for a recommendation on a current model.
About This Series

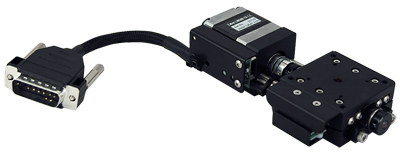

What is a goniometer? A goniometer stage (sometimes called a goniometer table) is a tilting stage that rotates about a virtual axis fixed in space above the stage surface. Zaber's LMG Series motorized goniometers are stepper motor driven positioning goniometers designed to interface with our X-MCB1 controller, offering high resolution daisy-chainable operation. The LMG60 has a virtual axis 60 mm above the mounting surface, and the LMG40 has a virtual axis 40 mm above the mounting surface. When the LMG40 is mounted at 90 degrees on top of the LMG60, the result is a two-axis goniometer with a shared virtual axis of rotation that is 40 mm above the top mounting surface.
- 200 step per revolution stepper motor, microstepped up to 256x to provide smooth and precise motion.
- Low profile stages with a small footprint for precise motion in one of the most compact packages available.
- A knob is provided for coarse positioning without power.
- DB15 male connector for quick connection to Zaber single or multi-axis controllers.
- M2 (20 mm pattern) and M3 (32 mm pattern) mounting holes provided.
- Crossed-roller bearing construction for high stiffness.
- LMG40 and LMG60 mount directly in XY to provide two axes of tilt motion about a single point of rotation.
Easy Set-Up
Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the controller to your computer via USB or RS-232 port.
- Connect the controller to the peripheral and plug in the power supply.
- Send instructions or automate your set-up using the Zaber Launcher.
For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
