Optical Mounts

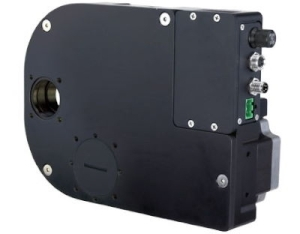

- The X-FWR motorized filter wheels have 57 ms filter change speeds and optional IO: 1 digital input, 2 digital outputs
- The T-MM mirror mounts have +/- 5° range and repeatability down to 0.015°. Low vacuum compatible (10-3 torr) version available
- The T-OMG gimbal optic mounts are our most compact optical mounts, with +/- 7° range and repeatability down to 0.004°
- The X-G-RST gimbal mounts have speed up to 24°/s; max torque 10 N⋅m; max payload 15 kg
Compact Form Factor
User-Friendly
Software & API
Plug & Play in Minutes
Shipping
Within 1 Week
Zaber offers several optical mounts: filter wheels, mirror mounts, and gimbal optic mounts.
Have a Question?
Contact us for device selection, troubleshooting & more!
Response time promise: 1 business day
Have a Question?
OMG Series — Miniature Motorized Gimbal Optic Mounts
Starting Price
$2,059 (USD)
Representative Image
- Two-axis gimbal mount with +/- 7° range
- Holds 1" (25 mm) optics
- Our most compact optical mount weighing only 330 grams
| Range | Best Accuracy | Best Repeatability | Best Backlash | Highest Speed |
|---|---|---|---|---|
+/- 7° | 0.055° (0.959750 mrad) | < 0.007° (< 0.122 mrad) | < 0.005° (< 0.087 mrad) | NA |

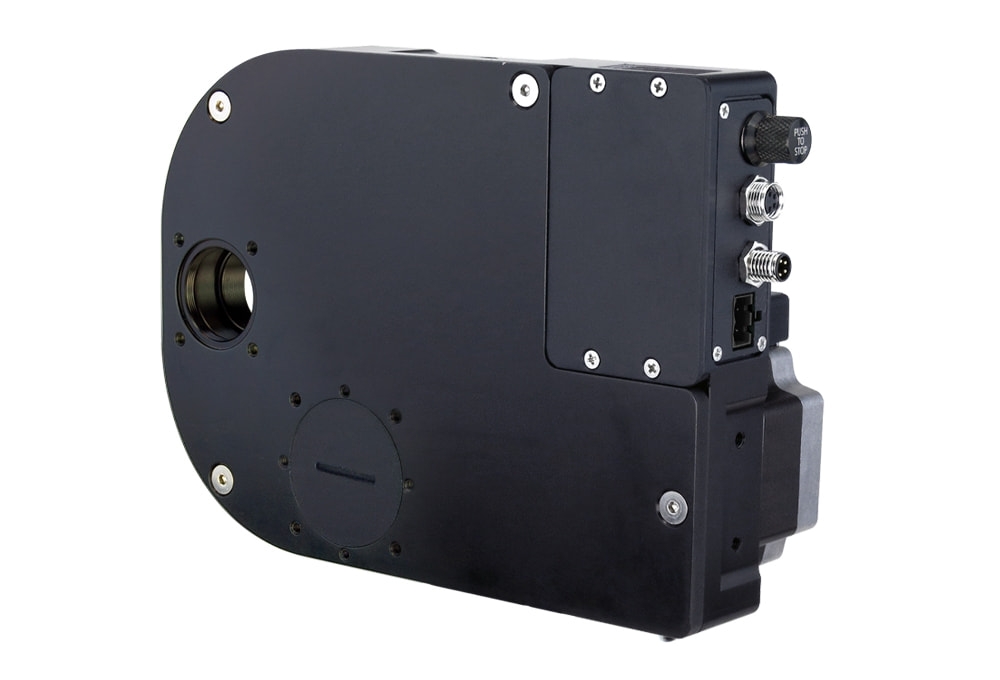

X-FWR-E Series — Motorized Filter Wheels with Built-in Controllers and Motor Encoders
Starting Price
$2,932 (USD)
Representative Image
- Interchangeable filter holders for 25 mm optics (10 positions) or 32 mm optics (7 positions)
- Smooth, high speed filter changes; adjacent filter change time of 57 ms (10 position wheel)
- Optional IO; 1 digital input, 2 digital outputs
- Mounting provided for optical cage systems and C-mount components
| Range | Best Repeatability | Best Backlash | Highest Speed | |
|---|---|---|---|---|
360° | NA | < 0.1° (< 1.745 mrad) | < 0.19° (< 3.316 mrad) | NA |
