Nucleus® X-MOR-E objective turrets
About This Series

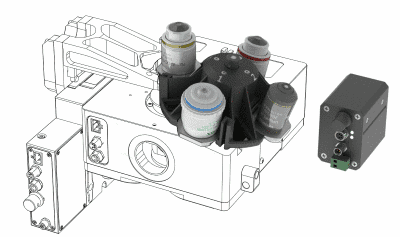

The X-MOR-E is a motorized objective turret which extends the high-precision focus capability of the X-LDA-AE to up to 4 objectives.
Unlike a conventional nosepiece, the system moves only one objective at a time which allows rapid focus moves under 30 ms and objective scanning at up to 40 Hz.
Compatible with a wide variety of objectives up to 250 g and 35 mm barrel diameter.
The objective turret is a modular add-on for the MVR and MSR series of automated microscopes. Use our Microscope Configurator to select the modules you need for your application.
- Secure and highly repeatable loading of objectives.
- Holds 4 objectives (up to 35 mm barrel, 250 g).
- Integrated shaft encoder ensures correct objective every time.
- Focus offsets and user-configurable data for each objective stored on the included controller.
- Mounts directly to MKR microscope cores.
- Smart indexing minimizes objective change times by selecting the shortest distance to the requested objective.
Easy Set-Up
Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the Zaber device to your computer via USB or RS-232 port.
- Connect the power supply to your Zaber device.
- Send instructions or automate your set-up using the Zaber Launcher.
For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
