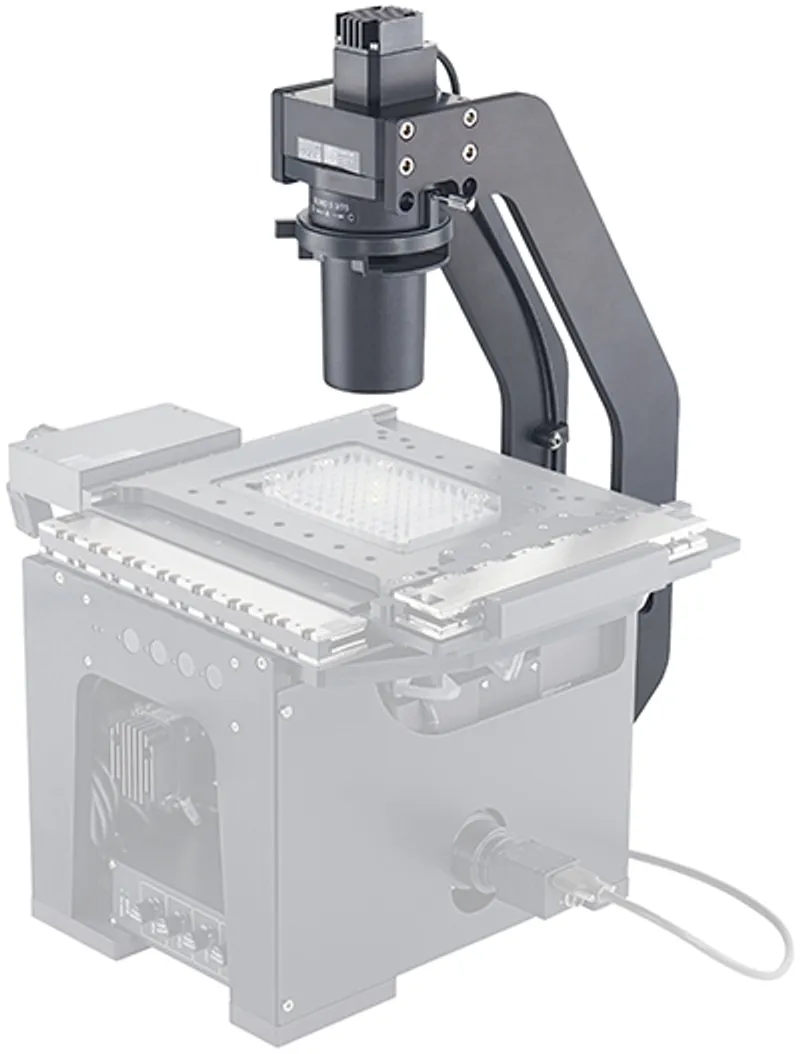

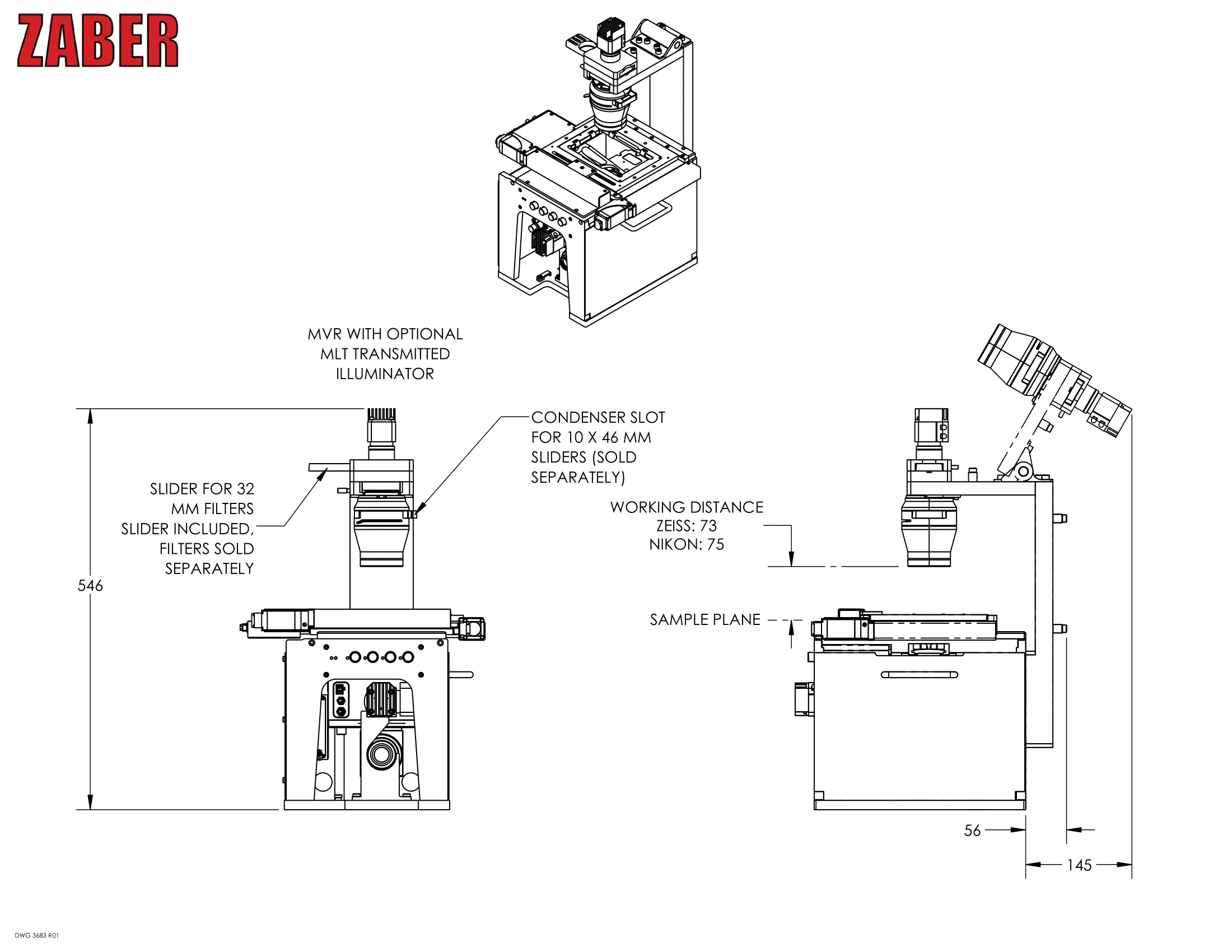

Add an MLT transmitted illuminator for transmitted brightfield or phase contrast microscopy. Phase contrast objectives are required for phase contrast imaging. These can be added in the "Optional Accesories" when the transmitted illuminator is selected.

Customizations are available for transmitted illumination with the X-ASR205 and the X-ASR305.

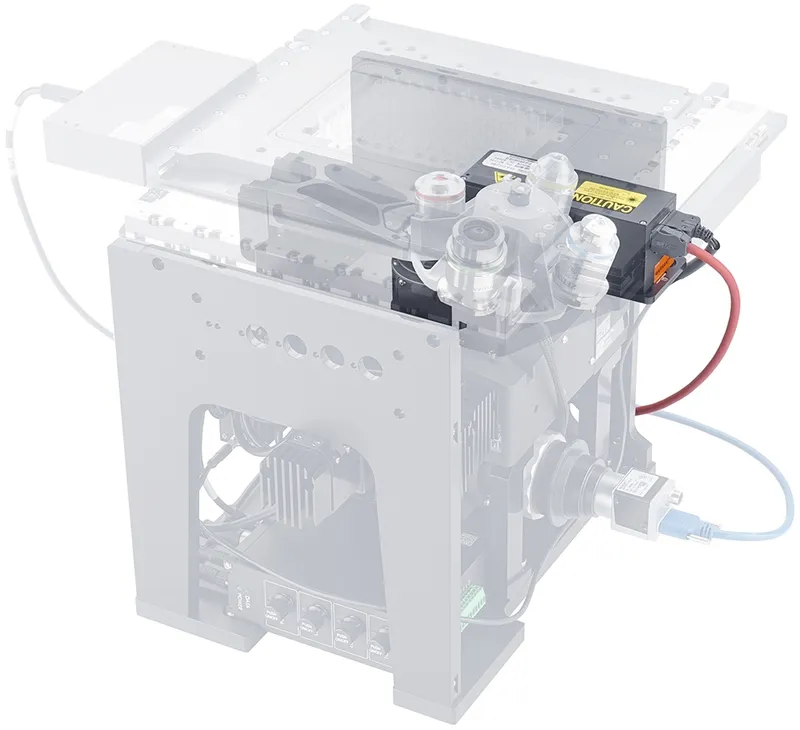

By default, the MVR system uses a software autofocus. Adding on an HL04 hardware autofocus improves the scanning speed in certain scenarios.

For a full explanation of the difference between laser (hardware) autofocus and camera (software) autofocus, see our autofocus methods compared article.

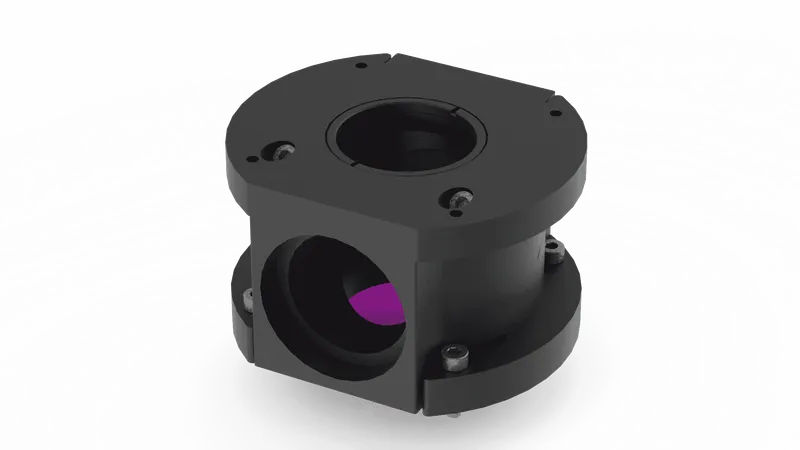

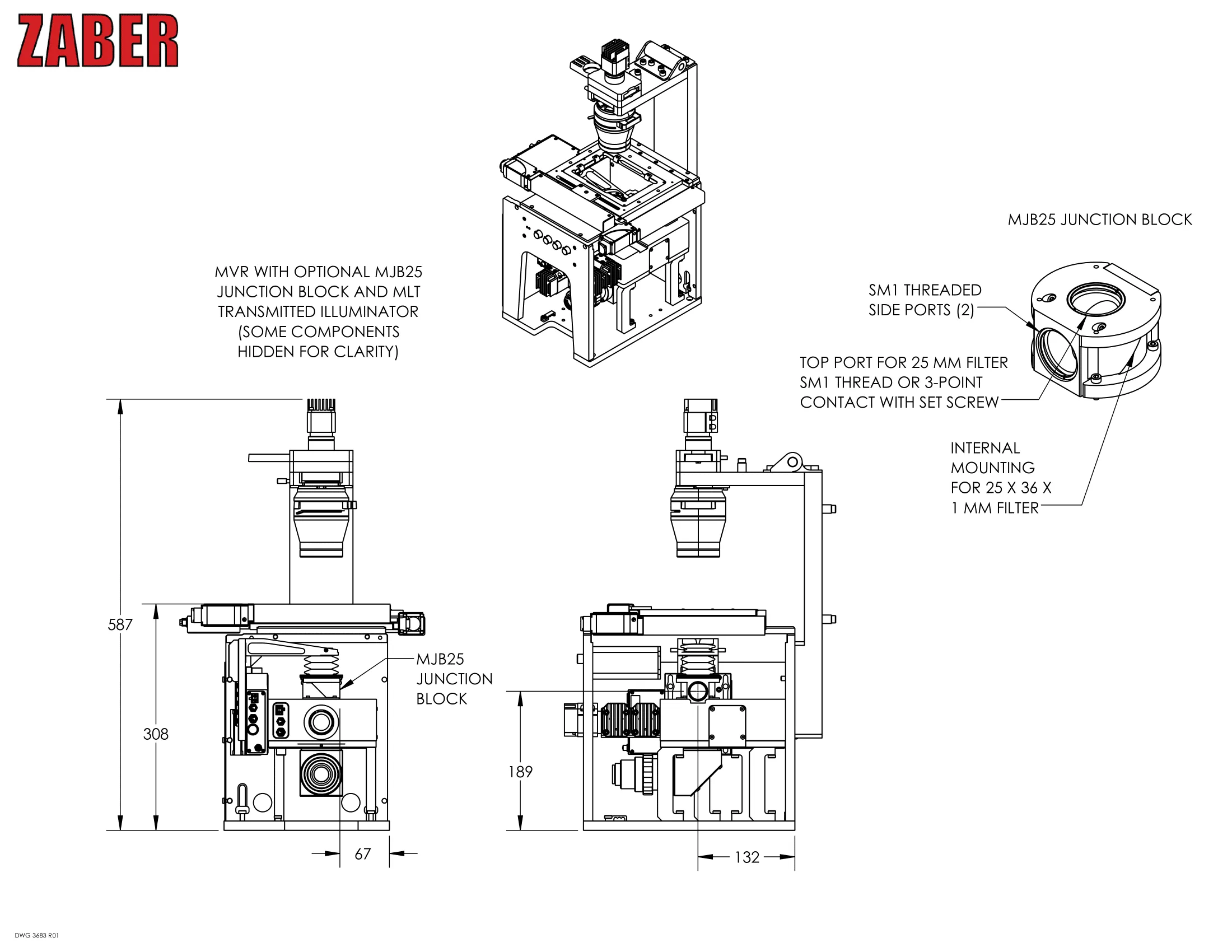

The optional junction block provides an additional injection port in infinity space between the filter cube turret and the objective. This option is not available with the laser autofocus option, as that already takes up the additional injection port.

Please note: While most other Nucleus microscope modules can be user-installed, junction block installation must be carried out by Zaber. For more information on the junction block, please refer to our article.

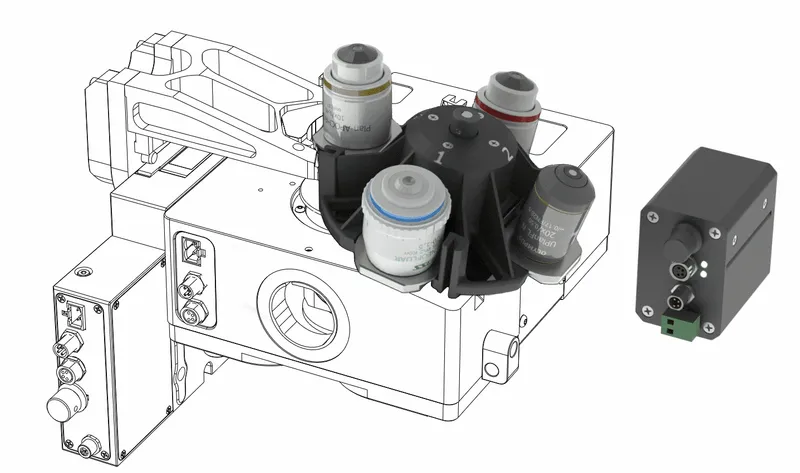

Maximize your walk-away time by selecting an X-MOR-E motorized objective changer. The objective turret allows for automated switching between up to 4 objectives.

The X-MOR-E is currently not compatible with the X-ASR205 stage. Customizations are available on request. For additional information on the objective changer, please refer to our article.

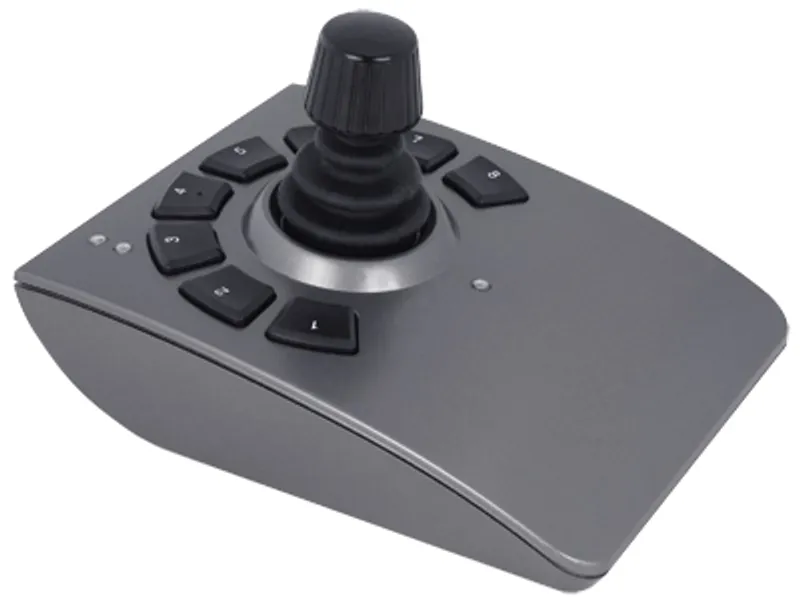

While optional, the X-JOY3 controller is a highly recommended companion module for the MVR microscope. It provides precise and intuitive control over sample positioning, saving you time during setup and simplifying system use.

The MVR supports any standard C-mount camera and any adaptors that mount onto the standard C-mount interface.

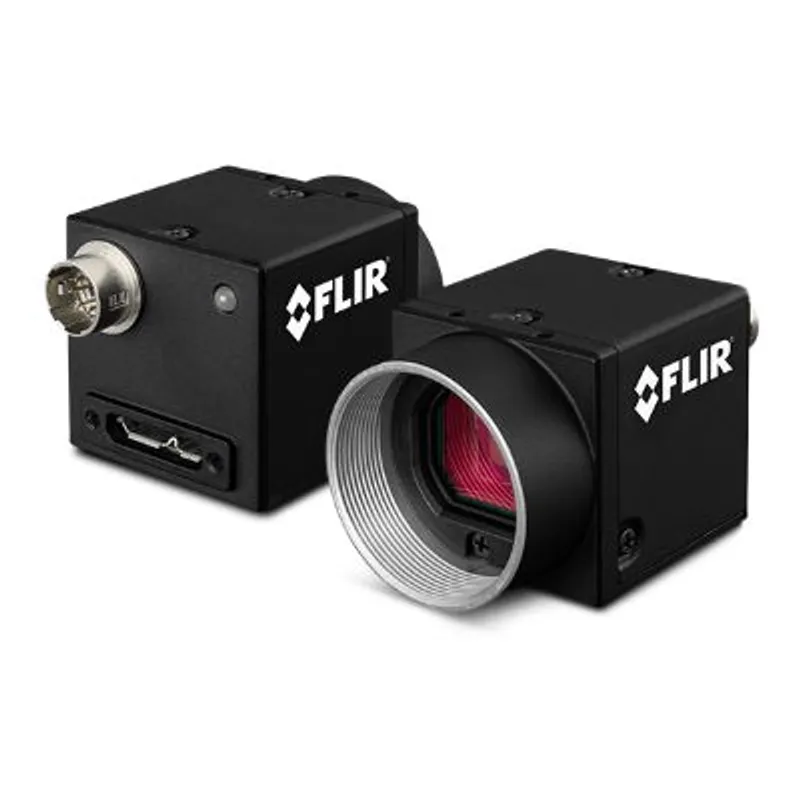

Our standard camera option is the CC01, a FLIR Blackfly camera featuring Sony’s IMX249 2.3 MP monochrome sensor (colour sensor available). It is an extremely cost effective introductory camera which can provide a starting point for identifying your performance requirements. It offers outstanding value for low light imaging applications such as multi-channel fluorescence, with a quantum efficiency of 70% at 525 nm and a 13 mm diagonal sensor area. A high speed USB 3.1 connection (included) provides frame rates up to 41 FPS.

For more information on camera selection and compatibility, please refer to our article. For non-standard camera mounting, customizations are available.
