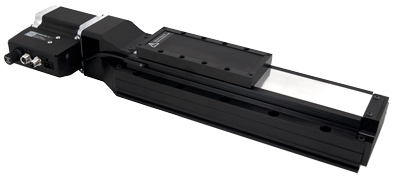

X-LRT-C

X-LRT-C Series

High load, motorized linear stages with built-in controllers and dust covers

100, 250, 500, 750, 1000, 1500 mm travel
Up to 700 mm/s speed and up to 1200 N thrust
300 kg load capacity
High moment stiffness
Includes stainless steel dust covers
Ball screw and lead screw configurations
Built-in controller; daisy-chains with other Zaber products

Part Numbering & Options

Part Number	Description	Lead Time	Starting Prices (USD) *
X-LRT0100AL-C	Lead-screw Driven \| 100 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$4,103
X-LRT0100BL-C	Lead-screw Driven \| 100 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,103
X-LRT0100DL-C	Lead-screw Driven \| 100 mm Travel \| Coarse Resolution \| High Speed	1-5 Days after Oct. 03	$4,103
X-LRT0100HL-C	Ball-screw Driven \| 100 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,103
X-LRT0250AL-C	Lead-screw Driven \| 250 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$4,302
X-LRT0250BL-C	Lead-screw Driven \| 250 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,302
X-LRT0250DL-C	Lead-screw Driven \| 250 mm Travel \| Coarse Resolution \| High Speed	1-5 Days after Oct. 03	$4,302
X-LRT0250HL-C	Ball-screw Driven \| 250 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,302
X-LRT0500AL-C	Lead-screw Driven \| 500 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$4,636
X-LRT0500BL-C	Lead-screw Driven \| 500 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,636
X-LRT0500DL-C	Lead-screw Driven \| 500 mm Travel \| Coarse Resolution \| High Speed	1-5 Days after Oct. 03	$4,636
X-LRT0500HL-C	Ball-screw Driven \| 500 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,636
X-LRT0750AL-C	Lead-screw Driven \| 750 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$4,967
X-LRT0750BL-C	Lead-screw Driven \| 750 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,967
X-LRT0750DL-C	Lead-screw Driven \| 750 mm Travel \| Coarse Resolution \| High Speed	1-5 Days after Oct. 03	$4,967
X-LRT0750HL-C	Ball-screw Driven \| 750 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$4,967
X-LRT1000AL-C	Lead-screw Driven \| 1000 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$5,300
X-LRT1000BL-C	Lead-screw Driven \| 1000 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,300
X-LRT1000DL-C	Lead-screw Driven \| 1000 mm Travel \| Coarse Resolution \| High Speed	1-5 Days after Oct. 03	$5,300
X-LRT1000HL-C	Ball-screw Driven \| 1000 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,300
X-LRT1500AL-C	Lead-screw Driven \| 1500 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$5,967
X-LRT1500BL-C	Lead-screw Driven \| 1500 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$5,967
X-LRT1500DL-C	Lead-screw Driven \| 1500 mm Travel \| Coarse Resolution \| High Speed	1-5 Days after Oct. 03	$5,967

Compatible Accessories

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
