(Discontinued) X-LHM-E Series

Motorized linear stages with built-in controllers and motor encoders

OVERVIEWFEATURESSPECIFICATIONSSUPPORT & DRAWINGS (PNG, STEP, CAD)

About This Series

Zaber's X-LHM-E Series devices are computer-controlled, motorized linear stages with a compact size and affordable price tag. They are stand-alone units requiring only a standard 24 or 48 V power supply. The built-in motor encoder allows closed-loop operation and slip/stall recovery features. An optional indexed knob provides convenient manual control for versatile operation even without a computer.

These stages connect to the RS-232 port or USB port of any computer, and they can be daisy-chained with any other Zaber products. The daisy-chain also shares power, making it possible for multiple X-Series products to share a single power supply. Convenient locking 4-pin M8 connectors on the unit allow for secure connection between units.

At only 23 mm high, these miniature plain bearing stages are excellent for applications where a small profile is required. Carriage pre-load can be easily adjusted to compensate for wear over the lifetime of the stage. Like all of Zaber's products, the X-LHM-E Series is designed to be 'plug and play' and very easy to set up and operate.

For applications requiring more precise motion or high stiffness in multi-axis assemblies, please contact us or see our Product Overview page for the variety of stages we offer.

Default image for https://www.zaber.com/products/linear-stages/X-LHM-E/features
1 2 3 4 5 6 7 8

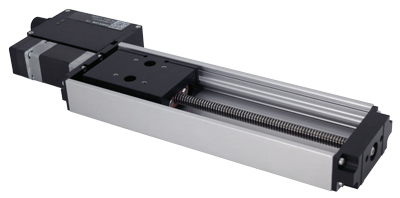

  1. An optional indexed knob provides convenient manual control.
  2. Integrated motor encoder, stepper motor controller and motor driver allows for easy-to-use control with stall detection.
  3. 200 step per revolution stepper motor, microstepped up to 256x to provide smooth and precise motion.
  4. Control all units in the daisy-chain via serial port (with a locking X-SDC cable) or USB (with an X-USBDC cable).
  5. Daisy-chain additional units with a locking X-DC02 cable or X-DC06 cable. Power can also be shared in the chain.
  6. Travel lengths from 25 to 200 mm, with custom lengths available.
  7. Mount to the stage top using 4x M3 threaded holes.
  8. X-LHM-E stages can be assembled in XY or XYZ configuration without additional hardware.

Easy Set-Up

Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:

  1. Connect the Zaber device to your computer via USB or RS-232 port.
  2. Connect the power supply to your Zaber device.
  3. Send instructions or automate your set-up using the Zaber Launcher.
Photo instructions of Typical Daisy-Chaining

For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.

For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
