LSQ-C Series

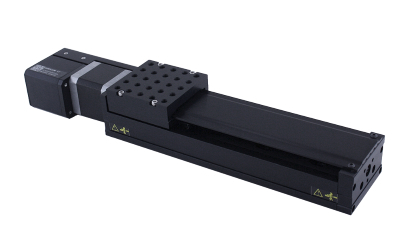

Name: LSQ-C High-Speed Motorized Linear Stages with Cover
Brand: Zaber
SKU: LSQ-C
Availability: InStock

High-speed motorized linear stages with covers

75, 150, 300, 450 and 600 mm travel
Up to 1 m/s speed and up to 100 N thrust
50 kg load capacity
Includes rigid cover
Designed for use with MCC Family controllers or any 2-phase stepper motor controller
With AutoDetect, Zaber controllers automatically configure settings for the connected peripheral
Custom versions available

Have a Question?

Response time promise: 1 business day

Have a Question?

Part Numbering & Options

Part Number	Description	Lead Time	Starting Prices (USD) *
LSQ075A-CT3A	75 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,112
LSQ075B-CT3A	75 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,112
LSQ075D-CT3A	75 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$2,112
LSQ150A-CT3A	150 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,380
LSQ150B-CT3A	150 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,380
LSQ150D-CT3A	150 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$2,380
LSQ300A-CT3A	300 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,926
LSQ300B-CT3A	300 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,926
LSQ300D-CT3A	300 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$2,926
LSQ450A-CT3A	450 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$3,460
LSQ450B-CT3A	450 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$3,460
LSQ450D-CT3A	450 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$3,460
LSQ600A-CT3A	600 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$3,945
LSQ600B-CT3A	600 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$3,945
LSQ600D-CT3A	600 mm Travel \| Coarse Resolution \| High Speed	1-5 Days	$3,945

Compatible Accessories

Accessory	Description	Lead Time	Price (USD) *
MC03	Motor Extension Cable, 1.5 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$27
MC03L060	Motor Extension Cable, 0.6 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$45
MC03L300	Motor Extension Cable, 3.0 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$49
MC10T3	Motor Conversion Cable, 1.5 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$33
MC10T3L060	Motor Conversion Cable, 0.6 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$39
MC10T3L300	Motor Conversion Cable, 3.0 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$51
MC10T3L450	Motor Conversion Cable, 4.5 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$59

All LSQs share mounting patterns and can be screwed together directly.
Mounting options for stacking XY, theta, or tilt systems with Zaber stages are available here LSQ Adaptor Plates.
Mounting options using angle bracket for L-shaped configurations with Zaber stages are available here LSQ Angle Brackets.

Accessory	Description	Lead Time	Price (USD) *
AB104	Angle Bracket, 90 Degrees, Large, Metric	1-5 Days	$194
AB90M	Angle Bracket, 90 Degrees, Metric Mounting Holes	1-5 Days	$141
AP257	Adaptor Plate, M6 Grid to Metric Mounting	1-5 days	$162

* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
