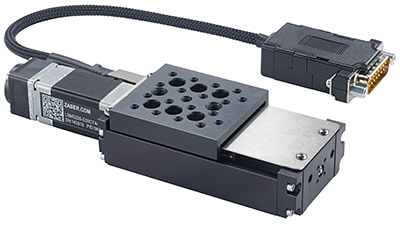

LSM-EC Series

Name: LSM-EC Miniature Linear Stages with Covers
Brand: Zaber
SKU: LSM-EC
Availability: InStock

Miniature motorized linear stages with built-in motor encoders and dust covers

25, 50, 100, 150 and 200 mm travel
Recirculating ball bearing design for high load (25 kg) and long lifetime
Includes stainless steel dust cover
Encoder position feedback with slip/stall detection and automatic recovery
Multiple LSM-EC stages can be assembled in XY or XYZ configurations without additional hardware
Designed for use with MCC Family controllers or any 2-phase stepper motor controller
With AutoDetect, Zaber controllers automatically configure settings for the connected peripheral
Custom versions available

Have a Question?

Response time promise: 1 business day

Have a Question?

Filter By Feature

Choose one or more options below to filter the parts table.

Travel

Lead Screw Options

Encoder Options

E03: Motor Encoder, 200 CPR

Cover

C: Rigid Cover

Connector

T4A: D-sub 15 inline connector with Auto Detect

Part Number	Description	Lead Time	Starting Prices (USD) *
LSM025A-E03CT4A	25 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,098
LSM025B-E03CT4A	25 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,098
LSM050A-E03CT4A	50 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,220
LSM050B-E03CT4A	50 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,220
LSM100A-E03CT4A	100 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,462
LSM100B-E03CT4A	100 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,462
LSM150A-E03CT4A	150 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,584
LSM150B-E03CT4A	150 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,584
LSM200A-E03CT4A	200 mm Travel \| Fine Resolution \| Low Speed	1-5 Days	$2,706
LSM200B-E03CT4A	200 mm Travel \| Medium Resolution \| Medium Speed	1-5 Days	$2,706

Compatible Accessories

Accessory	Description	Lead Time	Price (USD) *
MC03	Motor Extension Cable, 1.5 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$27
MC03L060	Motor Extension Cable, 0.6 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$45
MC03L300	Motor Extension Cable, 3.0 m, X-MCA Series Controllers and T3/T4/T3A/T4A Peripherals	1-5 Days	$49
MC10T3	Motor Conversion Cable, 1.5 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$33
MC10T3L060	Motor Conversion Cable, 0.6 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$39
MC10T3L300	Motor Conversion Cable, 3.0 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$51
MC10T3L450	Motor Conversion Cable, 4.5 m, MCC Family Controllers and T3A/T4A/T11A Peripherals	1-5 Days	$59

Accessory	Description	Lead Time	Price (USD) *
AB103	Miniature Angle Bracket, 90 Degrees	1-5 Days	$87
AP101	LSM Bottom Adapter Plate	1-5 Days	$75
AP102C	LRM and LSM Metric Top Adapter Plate	1-5 Days	$97

* These are our direct prices in USD to customers in North America. If you are in Canada, select CAD from the currency menu at the top right of the page. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
