LRT-AEC Series

Name: LRT-AEC High-Accuracy Linear Stages with Dust Covers
Brand: Zaber
SKU: LRT-AEC
Availability: InStock

High load, high accuracy motorized linear stages with built-in linear encoders, dust covers, and optional brakes

Series Specifications

Download Datasheet

Built-in Controller
Recommended Controller	MCC (48 V) recommended
AutoDetect
Travel Range	100 – 1500 mm
Axes of Motion	1
LED Indicators
Weight	3.65 – 11.654 kg

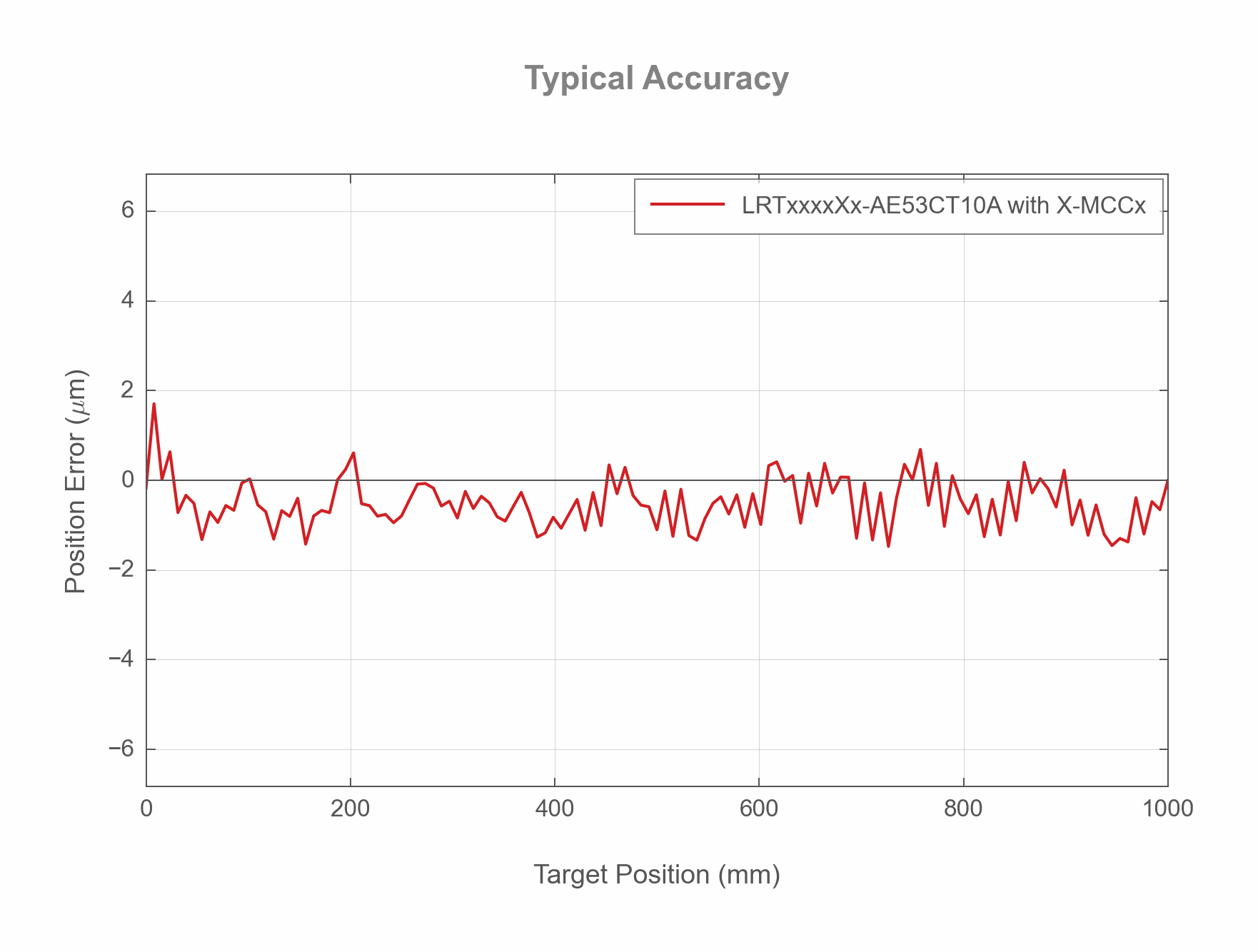

Accuracy (unidirectional)	20 µm (0.000787")
Repeatability	< 1 – 1.5 µm

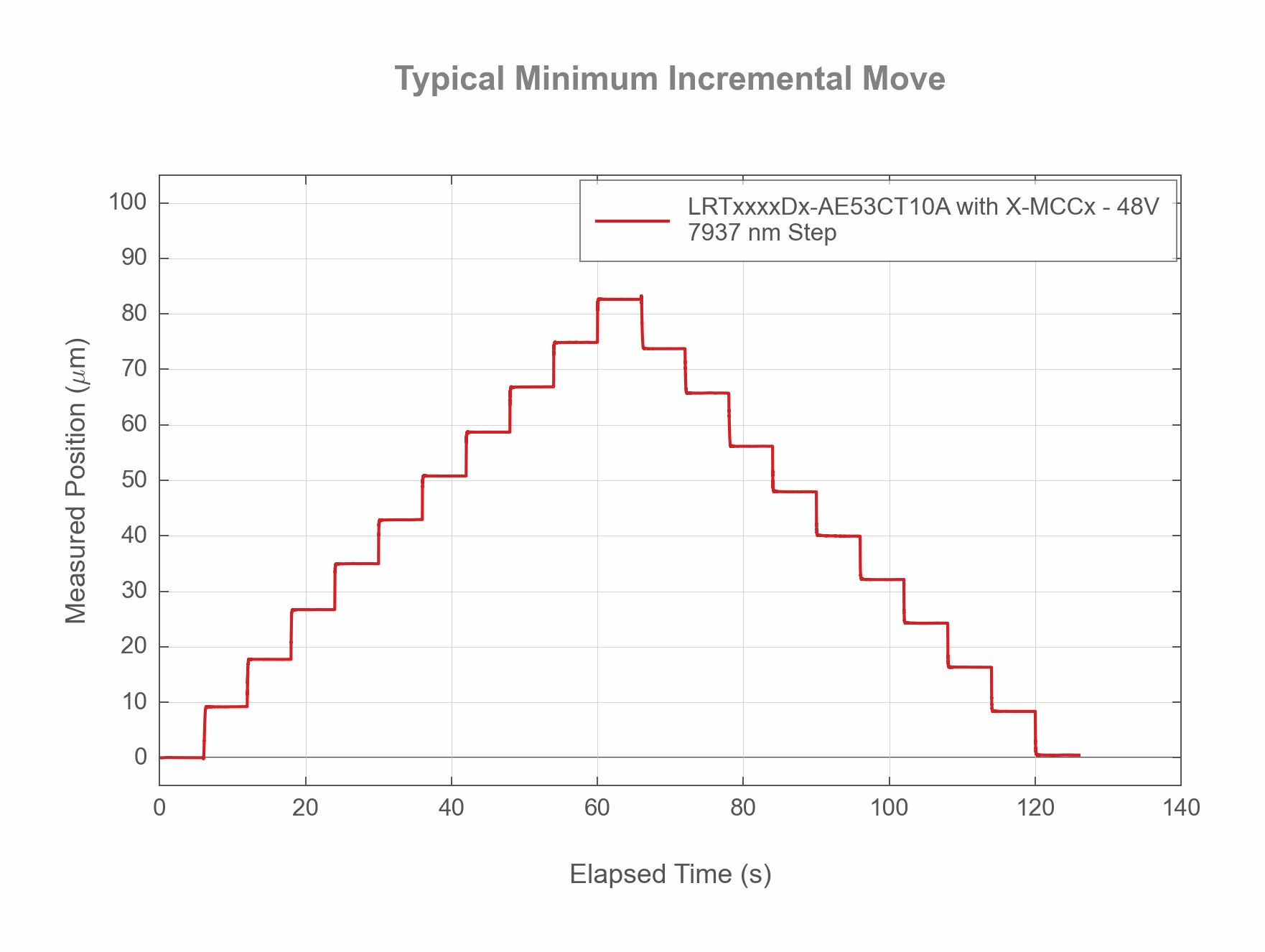

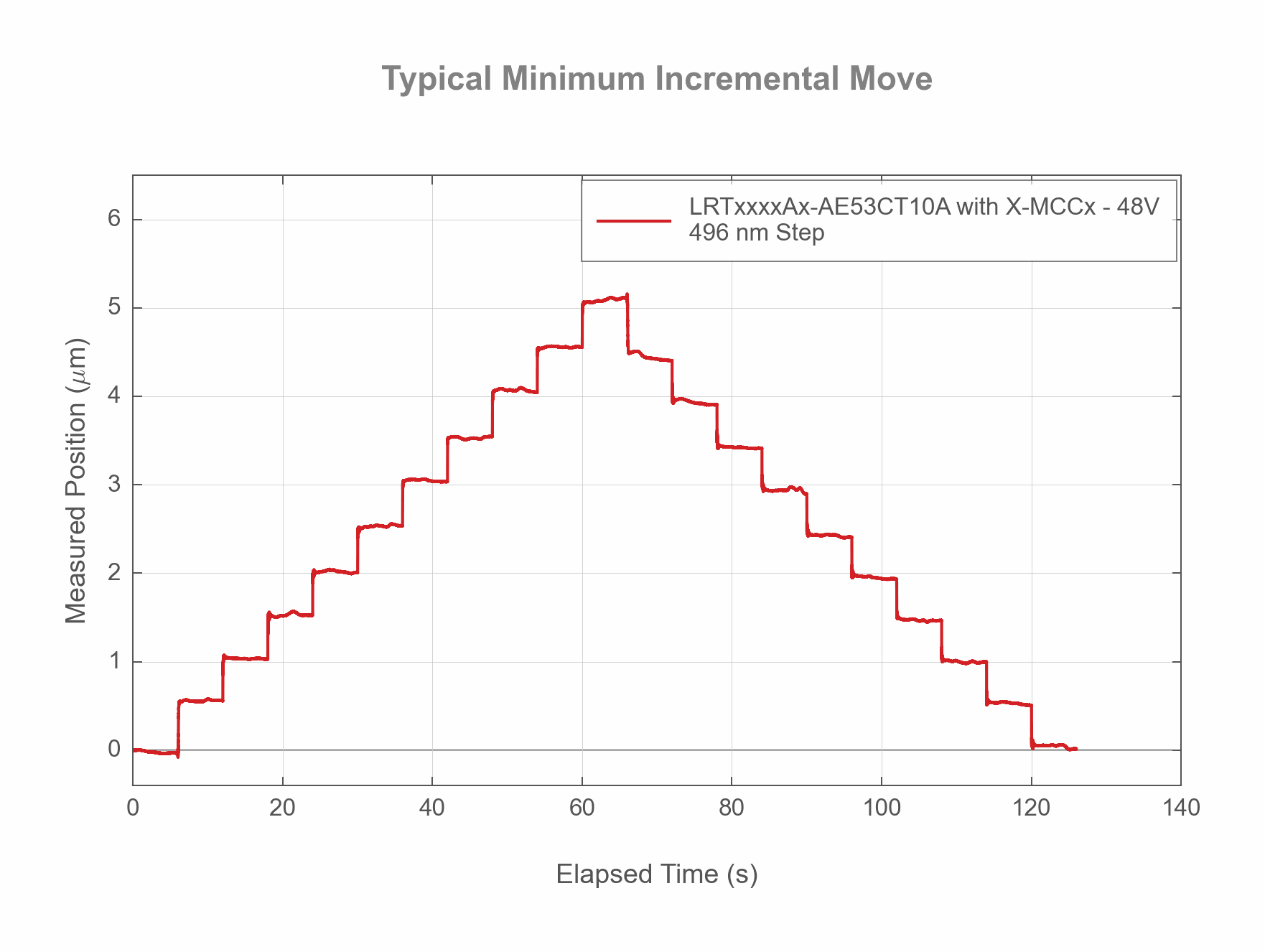

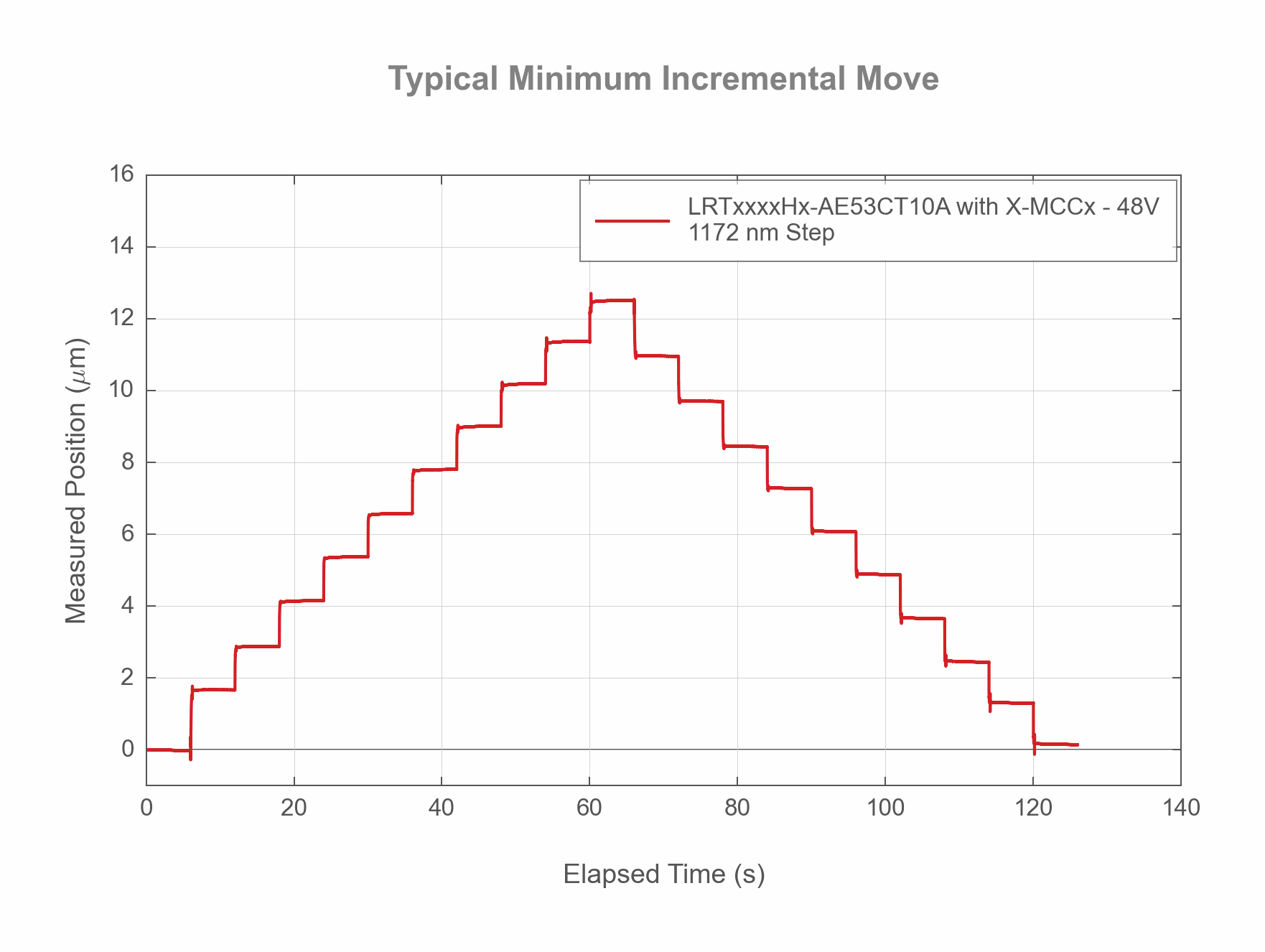

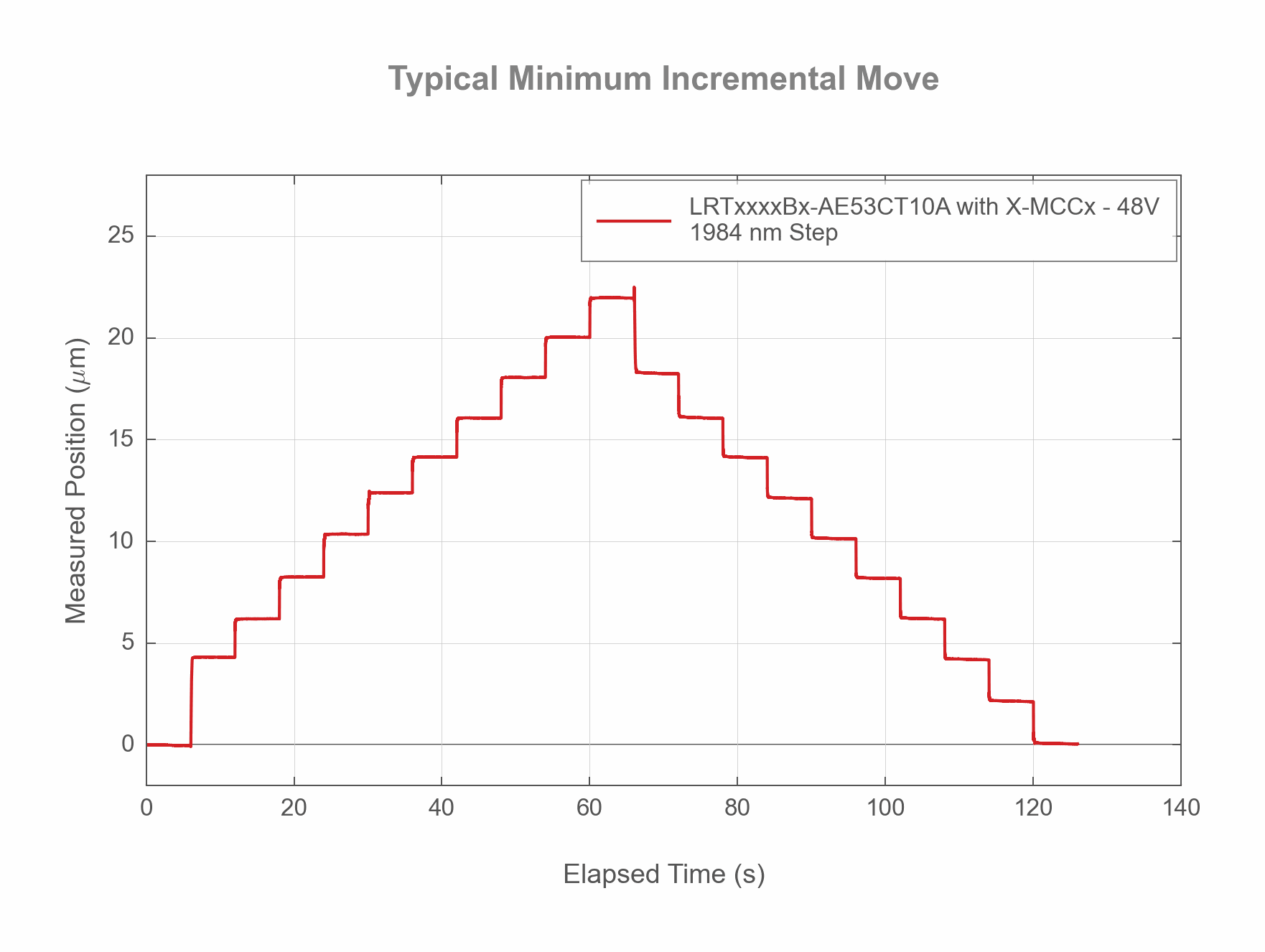

Minimum Incremental Move	500 – 8000 nm
Backlash	< 15 µm (< 0.000591")
Flatness of Travel	< 10 µm (< 0.000394")
Straightness of Travel	< 50 µm (< 0.001968")
Pitch Error	0.015° (0.262 mrad)
Roll Error	0.02° (0.349 mrad)
Yaw Error	0.03° (0.523 mrad)
Microstep Size (Default Resolution)	0.124023438 – 1.984375 µm

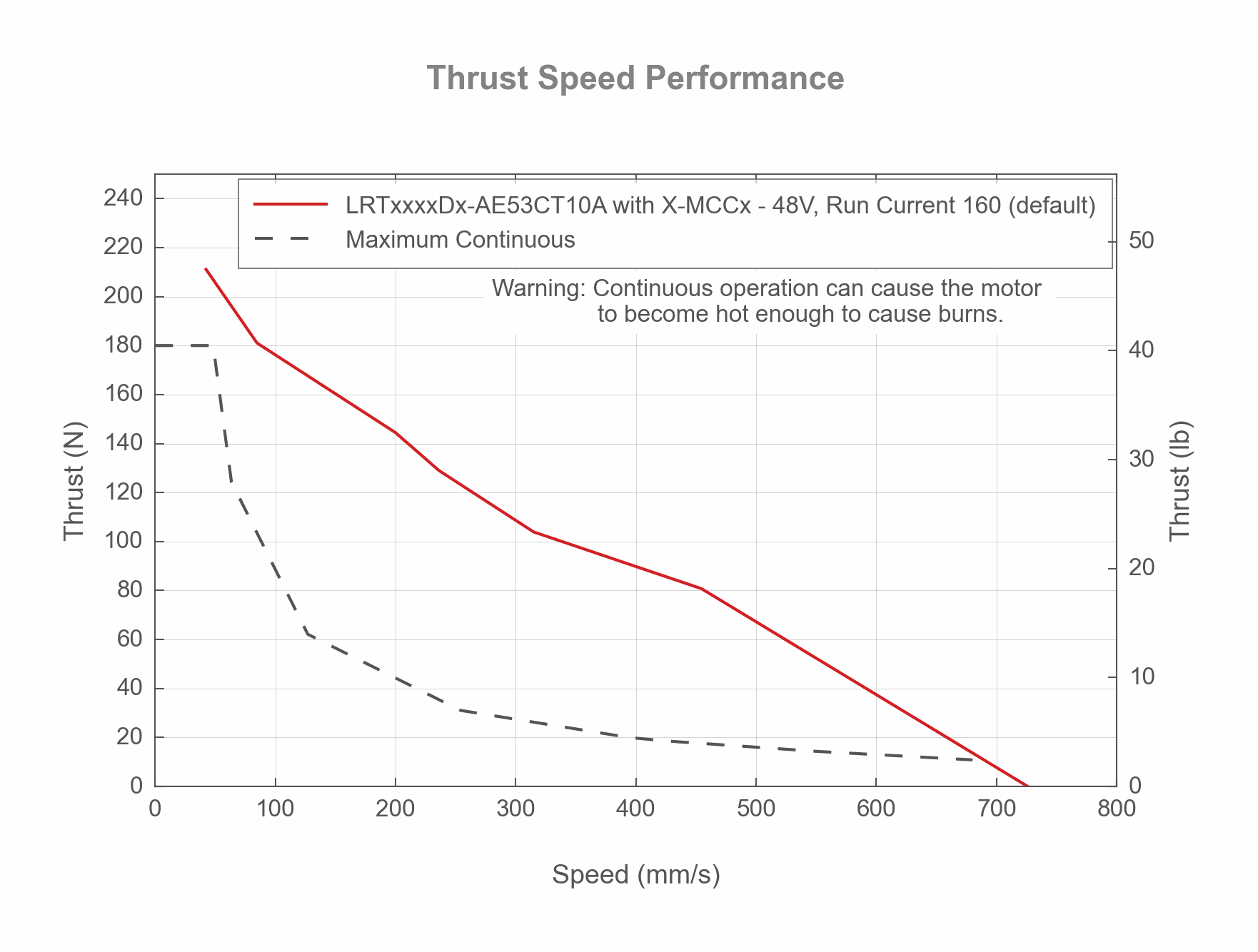

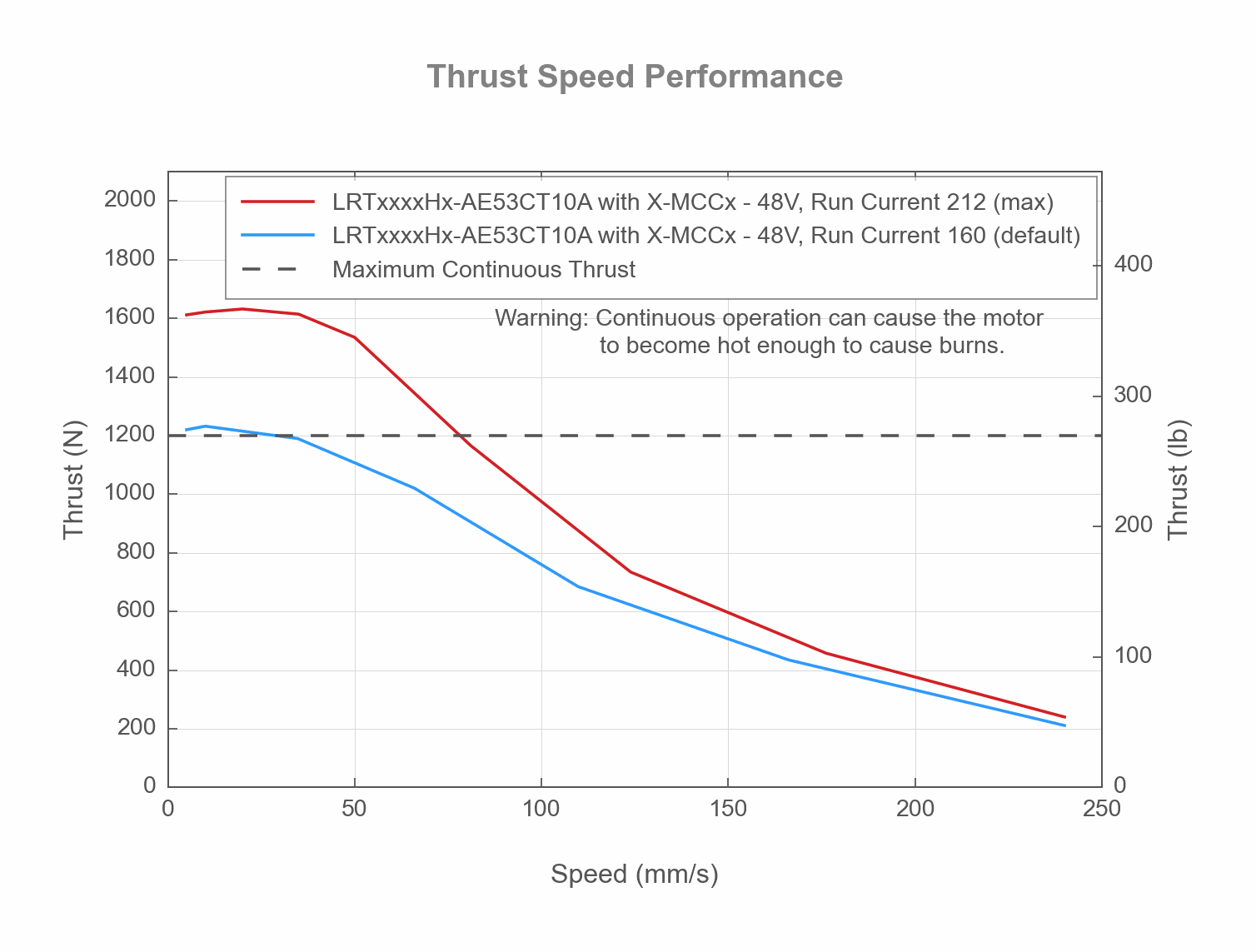

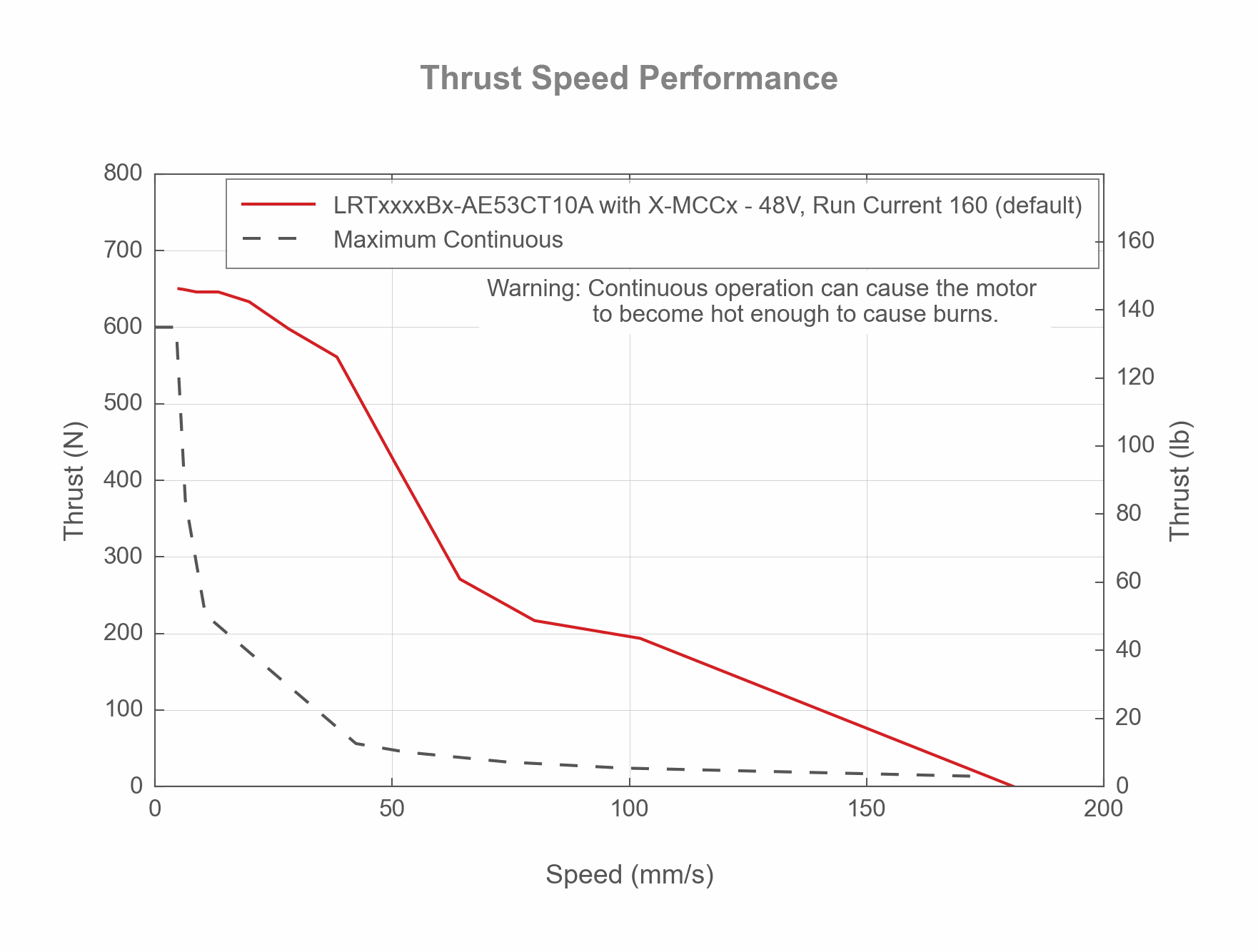

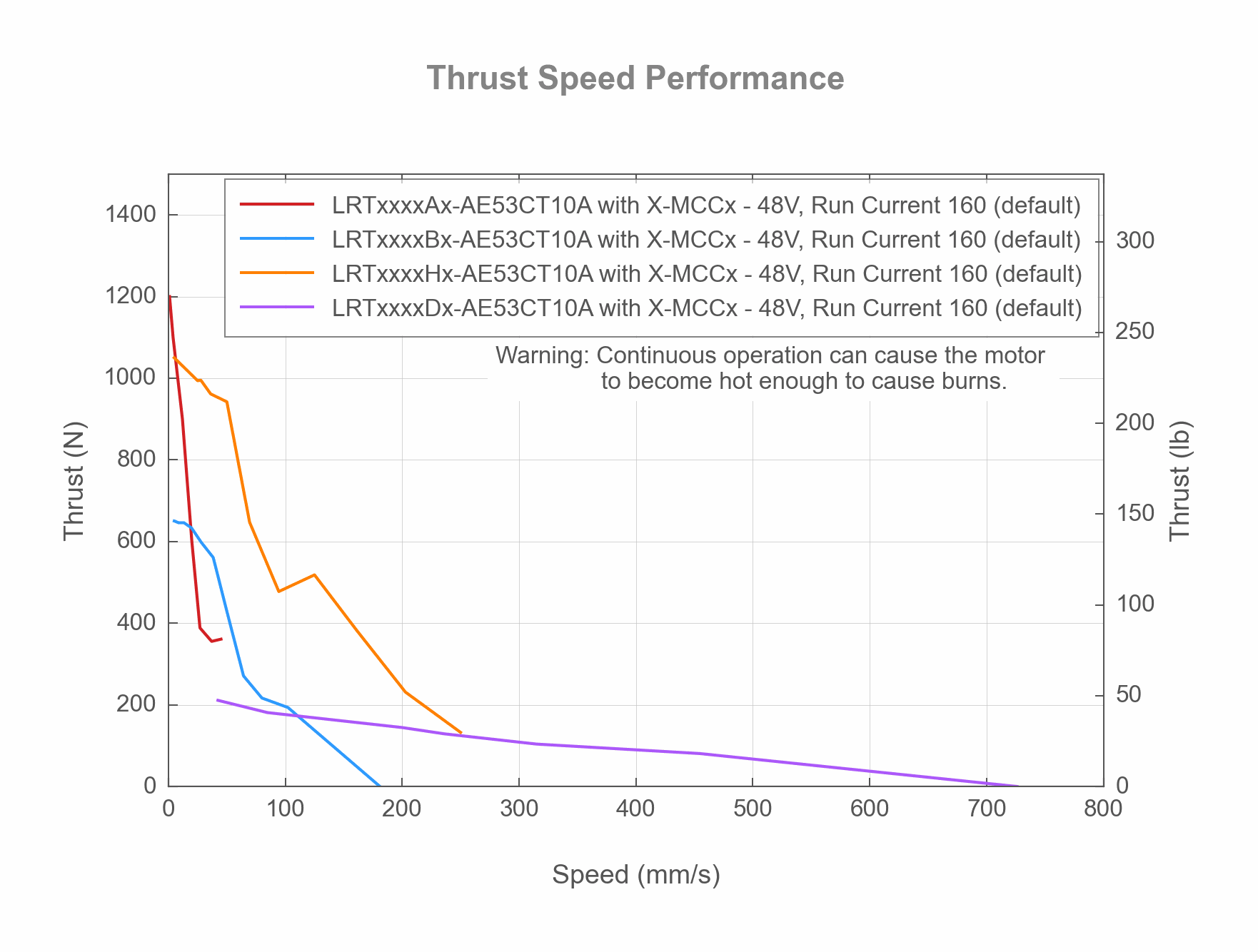

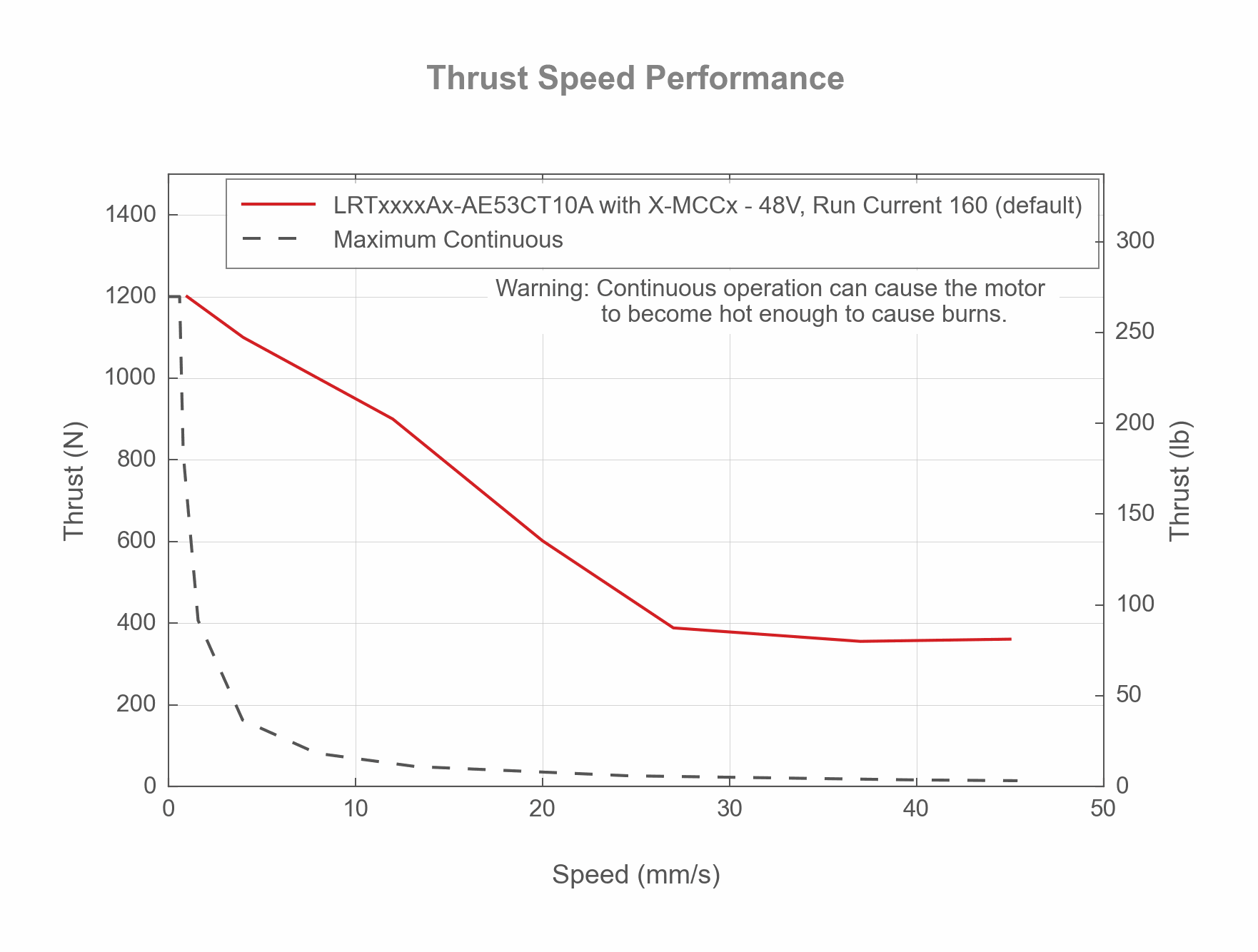

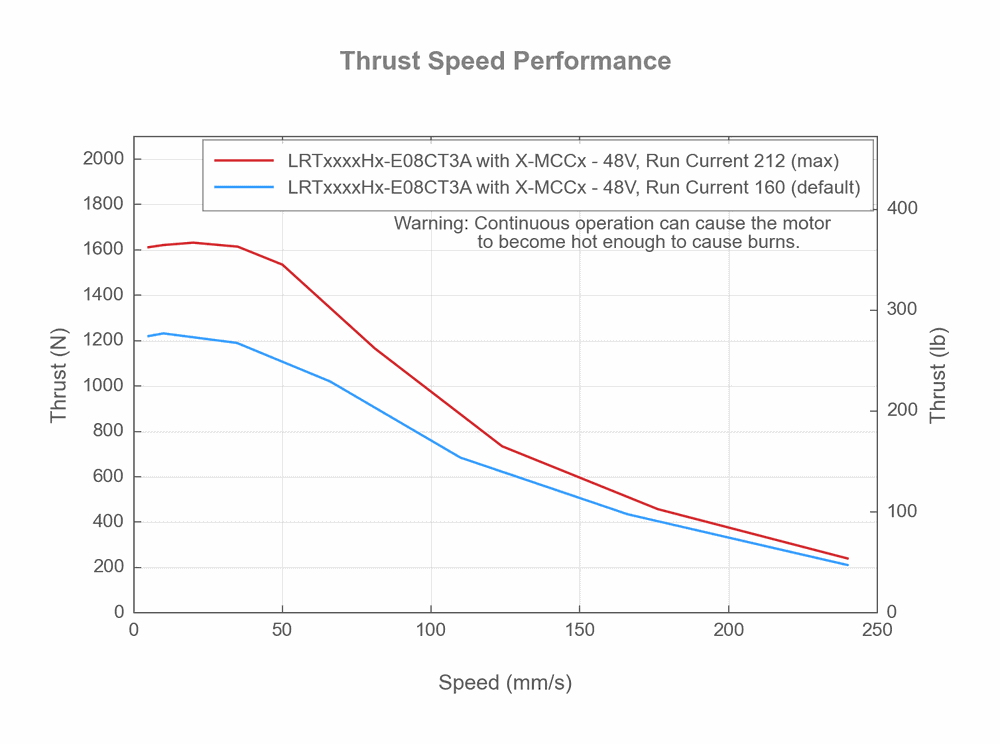

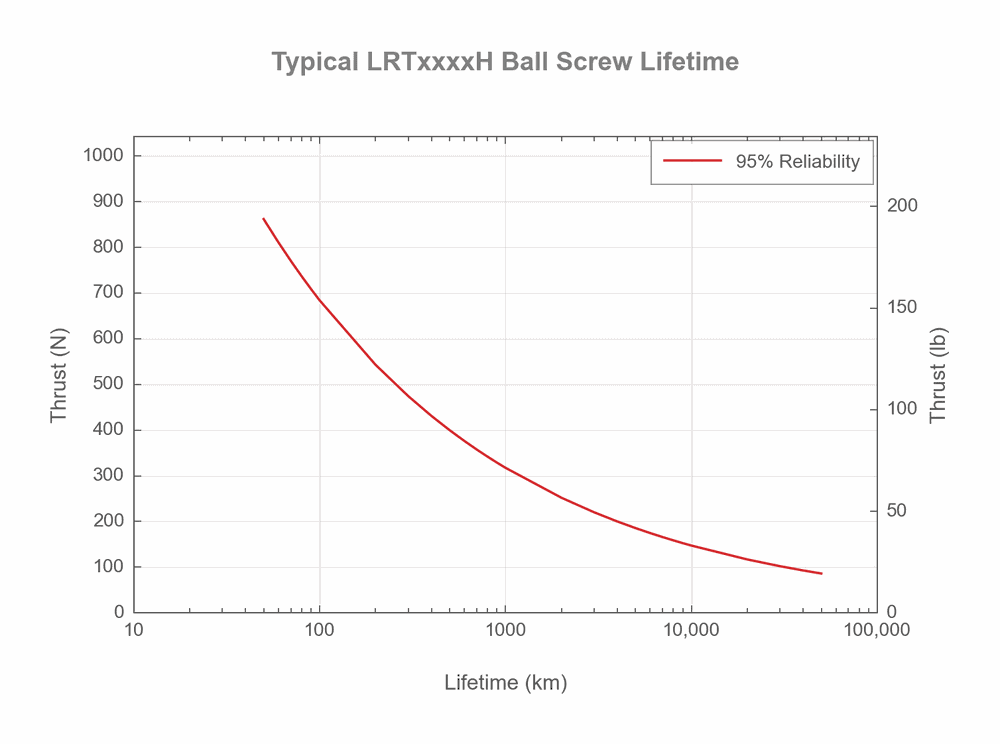

Peak Thrust	200 – 1200 N
Maximum Axial Brake Force	180 – 1200 N
Maximum Continuous Thrust	180 – 1200 N
Back-driving Force*	Varies

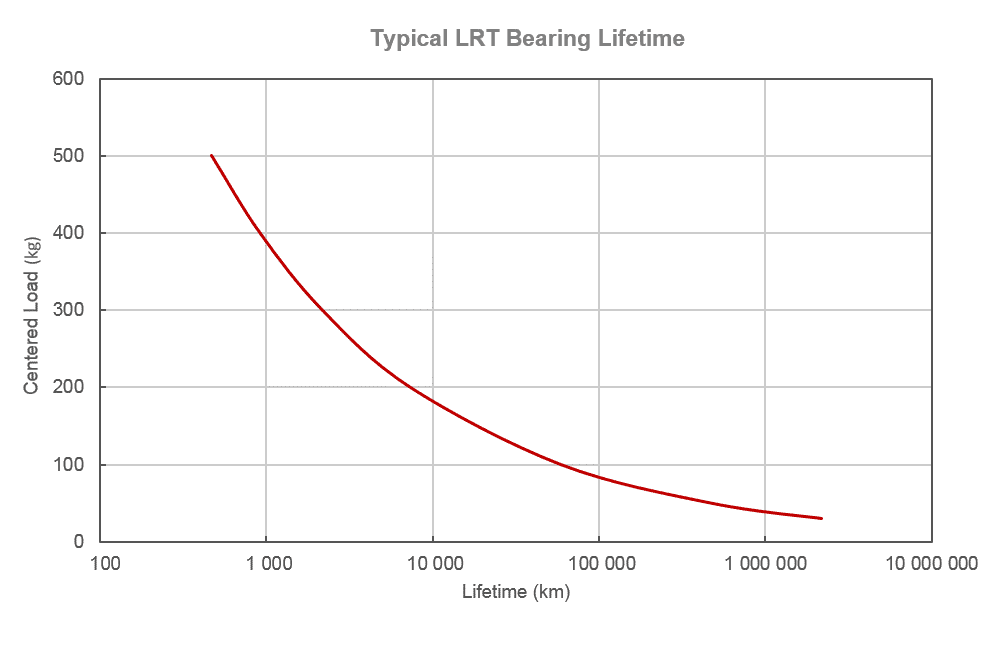

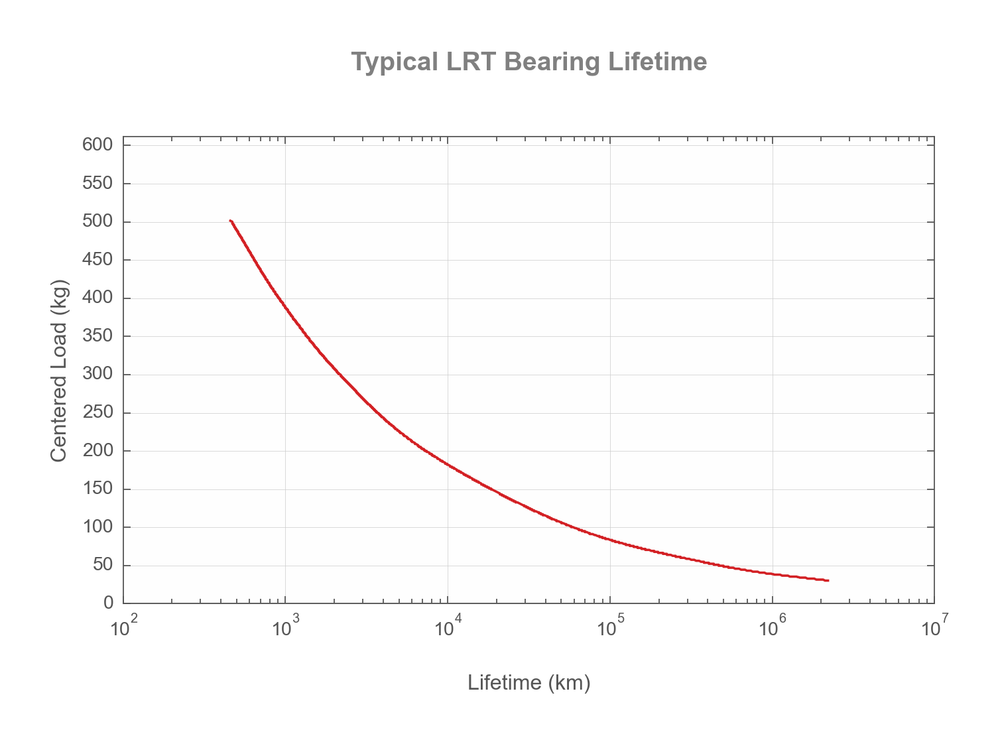

Maximum Centred Load	2940 N (659.3 lb)
Maximum Moment (Pitch)	70 N⋅m (51.7 lb⋅ft)
Maximum Moment (Roll)	80 N⋅m (59.04 lb⋅ft)
Maximum Moment (Yaw)	70 N⋅m (51.66 lb⋅ft)
Stiffness (Pitch)	1400 N⋅m/° (12 µrad/N⋅m)
Stiffness (Roll)	700 N⋅m/° (25 µrad/N⋅m)
Stiffness (Yaw)	1200 N⋅m/° (15 µrad/N⋅m)

Maximum Speed	13 – 700 mm/s
Minimum Speed	0.0000757 – 0.00121 mm/s
Speed Resolution	0.0000757 – 0.00121 mm/s

Encoder Type	Linear analog encoder
Encoder Resolution	50 nm
Limit or Home Sensing	Linear encoder index mark

Linear Motion Per Motor Rev	1.5875 – 25.4 mm
Motor Steps Per Rev	200
Motor Type	Stepper (2 phase)
Motor Rated Current	3000 mA/phase
Motor Winding Inductance	2 mH/phase
Motor Connection	D-sub 26
Motor Rotor Inertia	5e-5 kg⋅m²

Guide Type	Recirculating ball linear guide
Moving Mass	0.552 – 0.584 kg

Operating Temperature Range	0 to 50 °C
CE Compliant
Vacuum Compatible

Filter By Feature

Choose one or more options below to filter the parts table.

Travel

Drive Screw Options

Drive Configuration

L: Inline

Brake Option

Encoder Options

AE53: Analog encoder, measure down to 50 nm

Cover

C: Stainless Steel Dust Cover

Connector

T10A: D-sub 26 panel mount connector with Auto Detect

Part Specifications Comparison

Part Number	Travel Range	Weight	Repeatability	Minimum Incremental Move	Microstep Size (Default Resolution)	Peak Thrust	Maximum Axial Brake Force	Maximum Continuous Thrust	Back-driving Force*	Maximum Speed	Minimum Speed	Speed Resolution	Linear Motion Per Motor Rev	Moving Mass
LRT0100AL-AE53CT10A	100 mm (3.937")	3.65 kg (8.047 lb)	< 1 µm (< 0.000039")	500 nm	0.124023438 µm	1200 N (269.1 lb)	—	1200 N (269.1 lb)	Non-back-driving	45 mm/s (1.772"/s)	0.0000757 mm/s (0.000003"/s)	0.0000757 mm/s (0.000003"/s)	1.5875 mm (0.062")	0.552 kg (1.214 lbs)
LRT0100BL-AE53CT10A	100 mm (3.937")	3.65 kg (8.047 lb)	< 1.5 µm (< 0.000059")	2000 nm	0.49609375 µm	600 N (134.6 lb)	—	600 N (134.6 lb)	(± 30%) 420 N (94.2 lb)	175 mm/s (6.89"/s)	0.000303 mm/s (0.000012"/s)	0.000303 mm/s (0.000012"/s)	6.35 mm (0.25")	0.552 kg (1.214 lbs)
LRT0100BL-BAE53CT10A	100 mm (3.937")	4.276 kg (9.427 lb)	< 1.5 µm (< 0.000059")	2000 nm	0.49609375 µm	600 N (134.6 lb)	600 N (134.9 lb)	600 N (134.6 lb)	(± 30%) 420 N (94.2 lb)	175 mm/s (6.89"/s)	0.000303 mm/s (0.000012"/s)	0.000303 mm/s (0.000012"/s)	6.35 mm (0.25")	0.552 kg (1.214 lbs)
LRT0100DL-AE53CT10A	100 mm (3.937")	3.65 kg (8.047 lb)	< 1.5 µm (< 0.000059")	8000 nm	1.984375 µm	200 N (44.9 lb)	—	180 N (40.4 lb)	(± 30%) 40 N (9 lb)	700 mm/s (27.559"/s)	0.00121 mm/s (0.000048"/s)	0.00121 mm/s (0.000048"/s)	25.4 mm (1")	0.552 kg (1.214 lbs)
LRT0100DL-BAE53CT10A	100 mm (3.937")	4.276 kg (9.427 lb)	< 1.5 µm (< 0.000059")	8000 nm	1.984375 µm	200 N (44.9 lb)	180 N (40.5 lb)	180 N (40.4 lb)	(± 30%) 40 N (9 lb)	700 mm/s (27.559"/s)	0.00121 mm/s (0.000048"/s)	0.00121 mm/s (0.000048"/s)	25.4 mm (1")	0.552 kg (1.214 lbs)
LRT0100HL-AE53CT10A	100 mm (3.937")	3.65 kg (8.047 lb)	< 1.5 µm (< 0.000059")	1200 nm	0.390625 µm	1200 N (269.1 lb)	—	1200 N (269.1 lb)	(± 30%) 157 N (35.2 lb)	240 mm/s (9.449"/s)	0.000238583 mm/s (0.000009"/s)	0.000238583 mm/s (0.000009"/s)	5 mm (0.197")	0.583 kg (1.283 lbs)
LRT0100HL-BAE53CT10A	100 mm (3.937")	4.276 kg (9.427 lb)	< 1.5 µm (< 0.000059")	1200 nm	0.390625 µm	1200 N (269.1 lb)	1200 N (269.8 lb)	1200 N (269.1 lb)	(± 30%) 157 N (35.2 lb)	240 mm/s (9.449"/s)	0.000238583 mm/s (0.000009"/s)	0.000238583 mm/s (0.000009"/s)	5 mm (0.197")	0.583 kg (1.283 lbs)
LRT0250AL-AE53CT10A	250 mm (9.843")	4.441 kg (9.791 lb)	< 1 µm (< 0.000039")	500 nm	0.124023438 µm	1200 N (269.1 lb)	—	1200 N (269.1 lb)	Non-back-driving	45 mm/s (1.772"/s)	0.0000757 mm/s (0.000003"/s)	0.0000757 mm/s (0.000003"/s)	1.5875 mm (0.062")	0.552 kg (1.214 lbs)
LRT0250BL-AE53CT10A	250 mm (9.843")	4.441 kg (9.791 lb)	< 1.5 µm (< 0.000059")	2000 nm	0.49609375 µm	600 N (134.6 lb)	—	600 N (134.6 lb)	(± 30%) 420 N (94.2 lb)	175 mm/s (6.89"/s)	0.000303 mm/s (0.000012"/s)	0.000303 mm/s (0.000012"/s)	6.35 mm (0.25")	0.552 kg (1.214 lbs)
LRT0250BL-BAE53CT10A	250 mm (9.843")	5.067 kg (11.171 lb)	< 1.5 µm (< 0.000059")	2000 nm	0.49609375 µm	600 N (134.6 lb)	600 N (134.9 lb)	600 N (134.6 lb)	(± 30%) 420 N (94.2 lb)	175 mm/s (6.89"/s)	0.000303 mm/s (0.000012"/s)	0.000303 mm/s (0.000012"/s)	6.35 mm (0.25")	0.552 kg (1.214 lbs)
LRT0250DL-AE53CT10A	250 mm (9.843")	4.441 kg (9.791 lb)	< 1.5 µm (< 0.000059")	8000 nm	1.984375 µm	200 N (44.9 lb)	—	180 N (40.4 lb)	(± 30%) 40 N (9 lb)	700 mm/s (27.559"/s)	0.00121 mm/s (0.000048"/s)	0.00121 mm/s (0.000048"/s)	25.4 mm (1")	0.552 kg (1.214 lbs)
LRT0250DL-BAE53CT10A	250 mm (9.843")	5.067 kg (11.171 lb)	< 1.5 µm (< 0.000059")	8000 nm	1.984375 µm	200 N (44.9 lb)	180 N (40.5 lb)	180 N (40.4 lb)	(± 30%) 40 N (9 lb)	700 mm/s (27.559"/s)	0.00121 mm/s (0.000048"/s)	0.00121 mm/s (0.000048"/s)	25.4 mm (1")	0.552 kg (1.214 lbs)
LRT0250HL-AE53CT10A	250 mm (9.843")	4.441 kg (9.791 lb)	< 1.5 µm (< 0.000059")	1200 nm	0.390625 µm	1200 N (269.1 lb)	—	1200 N (269.1 lb)	(± 30%) 157 N (35.2 lb)	240 mm/s (9.449"/s)	0.000238583 mm/s (0.000009"/s)	0.000238583 mm/s (0.000009"/s)	5 mm (0.197")	0.583 kg (1.283 lbs)
LRT0250HL-BAE53CT10A	250 mm (9.843")	5.067 kg (11.171 lb)	< 1.5 µm (< 0.000059")	1200 nm	0.390625 µm	1200 N (269.1 lb)	1200 N (269.8 lb)	1200 N (269.1 lb)	(± 30%) 157 N (35.2 lb)	240 mm/s (9.449"/s)	0.000238583 mm/s (0.000009"/s)	0.000238583 mm/s (0.000009"/s)	5 mm (0.197")	0.583 kg (1.283 lbs)
LRT0500AL-AE53CT10A	500 mm (19.685")	5.758 kg (12.694 lb)	< 1 µm (< 0.000039")	500 nm	0.124023438 µm	1200 N (269.1 lb)	—	1200 N (269.1 lb)	Non-back-driving	45 mm/s (1.772"/s)	0.0000757 mm/s (0.000003"/s)	0.0000757 mm/s (0.000003"/s)	1.5875 mm (0.062")	0.552 kg (1.214 lbs)
LRT0500BL-AE53CT10A	500 mm (19.685")	5.758 kg (12.694 lb)	< 1.5 µm (< 0.000059")	2000 nm	0.49609375 µm	600 N (134.6 lb)	—	600 N (134.6 lb)	(± 30%) 420 N (94.2 lb)	175 mm/s (6.89"/s)	0.000303 mm/s (0.000012"/s)	0.000303 mm/s (0.000012"/s)	6.35 mm (0.25")	0.552 kg (1.214 lbs)
LRT0500BL-BAE53CT10A	500 mm (19.685")	6.384 kg (14.074 lb)	< 1.5 µm (< 0.000059")	2000 nm	0.49609375 µm	600 N (134.6 lb)	600 N (134.9 lb)	600 N (134.6 lb)	(± 30%) 420 N (94.2 lb)	175 mm/s (6.89"/s)	0.000303 mm/s (0.000012"/s)	0.000303 mm/s (0.000012"/s)	6.35 mm (0.25")	0.552 kg (1.214 lbs)
LRT0500DL-AE53CT10A	500 mm (19.685")	5.758 kg (12.694 lb)	< 1.5 µm (< 0.000059")	8000 nm	1.984375 µm	200 N (44.9 lb)	—	180 N (40.4 lb)	(± 30%) 40 N (9 lb)	700 mm/s (27.559"/s)	0.00121 mm/s (0.000048"/s)	0.00121 mm/s (0.000048"/s)	25.4 mm (1")	0.552 kg (1.214 lbs)
LRT0500DL-BAE53CT10A	500 mm (19.685")	6.384 kg (14.074 lb)	< 1.5 µm (< 0.000059")	8000 nm	1.984375 µm	200 N (44.9 lb)	180 N (40.5 lb)	180 N (40.4 lb)	(± 30%) 40 N (9 lb)	700 mm/s (27.559"/s)	0.00121 mm/s (0.000048"/s)	0.00121 mm/s (0.000048"/s)	25.4 mm (1")	0.552 kg (1.214 lbs)
LRT0500HL-AE53CT10A	500 mm (19.685")	5.758 kg (12.694 lb)	< 1.5 µm (< 0.000059")	1200 nm	0.390625 µm	1200 N (269.1 lb)	—	1200 N (269.1 lb)	(± 30%) 157 N (35.2 lb)	240 mm/s (9.449"/s)	0.000238583 mm/s (0.000009"/s)	0.000238583 mm/s (0.000009"/s)	5 mm (0.197")	0.583 kg (1.283 lbs)
LRT0500HL-BAE53CT10A	500 mm (19.685")	6.384 kg (14.074 lb)	< 1.5 µm (< 0.000059")	1200 nm	0.390625 µm	1200 N (269.1 lb)	1200 N (269.8 lb)	1200 N (269.1 lb)	(± 30%) 157 N (35.2 lb)	240 mm/s (9.449"/s)	0.000238583 mm/s (0.000009"/s)	0.000238583 mm/s (0.000009"/s)	5 mm (0.197")	0.583 kg (1.283 lbs)
LRT0750AL-AE53CT10A	750 mm (29.528")	7.076 kg (15.6 lb)	< 1 µm (< 0.000039")	500 nm	0.124023438 µm	1200 N (269.1 lb)	—	1200 N (269.1 lb)	Non-back-driving	45 mm/s (1.772"/s)	0.0000757 mm/s (0.000003"/s)	0.0000757 mm/s (0.000003"/s)	1.5875 mm (0.062")	0.553 kg (1.217 lbs)
LRT0750BL-AE53CT10A	750 mm (29.528")	7.076 kg (15.6 lb)	< 1.5 µm (< 0.000059")	2000 nm	0.49609375 µm	600 N (134.6 lb)	—	600 N (134.6 lb)	(± 30%) 420 N (94.2 lb)	175 mm/s (6.89"/s)	0.000303 mm/s (0.000012"/s)	0.000303 mm/s (0.000012"/s)	6.35 mm (0.25")	0.553 kg (1.217 lbs)
LRT0750BL-BAE53CT10A	750 mm (29.528")	7.702 kg (16.98 lb)	< 1.5 µm (< 0.000059")	2000 nm	0.49609375 µm	600 N (134.6 lb)	600 N (134.9 lb)	600 N (134.6 lb)	(± 30%) 420 N (94.2 lb)	175 mm/s (6.89"/s)	0.000303 mm/s (0.000012"/s)	0.000303 mm/s (0.000012"/s)	6.35 mm (0.25")	0.553 kg (1.217 lbs)
LRT0750DL-AE53CT10A	750 mm (29.528")	7.076 kg (15.6 lb)	< 1.5 µm (< 0.000059")	8000 nm	1.984375 µm	200 N (44.9 lb)	—	180 N (40.4 lb)	(± 30%) 40 N (9 lb)	700 mm/s (27.559"/s)	0.00121 mm/s (0.000048"/s)	0.00121 mm/s (0.000048"/s)	25.4 mm (1")	0.554 kg (1.219 lbs)
LRT0750DL-BAE53CT10A	750 mm (29.528")	7.702 kg (16.98 lb)	< 1.5 µm (< 0.000059")	8000 nm	1.984375 µm	200 N (44.9 lb)	180 N (40.5 lb)	180 N (40.4 lb)	(± 30%) 40 N (9 lb)	700 mm/s (27.559"/s)	0.00121 mm/s (0.000048"/s)	0.00121 mm/s (0.000048"/s)	25.4 mm (1")	0.554 kg (1.219 lbs)
LRT0750HL-AE53CT10A	750 mm (29.528")	7.076 kg (15.6 lb)	< 1.5 µm (< 0.000059")	1200 nm	0.390625 µm	1200 N (269.1 lb)	—	1200 N (269.1 lb)	(± 30%) 157 N (35.2 lb)	150 mm/s (5.905"/s)	0.000238583 mm/s (0.000009"/s)	0.000238583 mm/s (0.000009"/s)	5 mm (0.197")	0.584 kg (1.285 lbs)
LRT0750HL-BAE53CT10A	750 mm (29.528")	7.702 kg (16.98 lb)	< 1.5 µm (< 0.000059")	1200 nm	0.390625 µm	1200 N (269.1 lb)	1200 N (269.8 lb)	1200 N (269.1 lb)	(± 30%) 157 N (35.2 lb)	150 mm/s (5.905"/s)	0.000238583 mm/s (0.000009"/s)	0.000238583 mm/s (0.000009"/s)	5 mm (0.197")	0.584 kg (1.285 lbs)
LRT1000AL-AE53CT10A	1000 mm (39.37")	8.393 kg (18.503 lb)	< 1 µm (< 0.000039")	500 nm	0.124023438 µm	1200 N (269.1 lb)	—	1200 N (269.1 lb)	Non-back-driving	28 mm/s (1.102"/s)	0.0000757 mm/s (0.000003"/s)	0.0000757 mm/s (0.000003"/s)	1.5875 mm (0.062")	0.553 kg (1.217 lbs)
LRT1000BL-AE53CT10A	1000 mm (39.37")	8.393 kg (18.503 lb)	< 1.5 µm (< 0.000059")	2000 nm	0.49609375 µm	600 N (134.6 lb)	—	600 N (134.6 lb)	(± 30%) 420 N (94.2 lb)	120 mm/s (4.724"/s)	0.000303 mm/s (0.000012"/s)	0.000303 mm/s (0.000012"/s)	6.35 mm (0.25")	0.553 kg (1.217 lbs)
LRT1000BL-BAE53CT10A	1000 mm (39.37")	9.019 kg (19.883 lb)	< 1.5 µm (< 0.000059")	2000 nm	0.49609375 µm	600 N (134.6 lb)	600 N (134.9 lb)	600 N (134.6 lb)	(± 30%) 420 N (94.2 lb)	120 mm/s (4.724"/s)	0.000303 mm/s (0.000012"/s)	0.000303 mm/s (0.000012"/s)	6.35 mm (0.25")	0.553 kg (1.217 lbs)
LRT1000DL-AE53CT10A	1000 mm (39.37")	8.393 kg (18.503 lb)	< 1.5 µm (< 0.000059")	8000 nm	1.984375 µm	200 N (44.9 lb)	—	180 N (40.4 lb)	(± 30%) 40 N (9 lb)	500 mm/s (19.685"/s)	0.00121 mm/s (0.000048"/s)	0.00121 mm/s (0.000048"/s)	25.4 mm (1")	0.554 kg (1.219 lbs)
LRT1000DL-BAE53CT10A	1000 mm (39.37")	9.019 kg (19.883 lb)	< 1.5 µm (< 0.000059")	8000 nm	1.984375 µm	200 N (44.9 lb)	180 N (40.5 lb)	180 N (40.4 lb)	(± 30%) 40 N (9 lb)	500 mm/s (19.685"/s)	0.00121 mm/s (0.000048"/s)	0.00121 mm/s (0.000048"/s)	25.4 mm (1")	0.554 kg (1.219 lbs)
LRT1000HL-AE53CT10A	1000 mm (39.37")	8.393 kg (18.503 lb)	< 1.5 µm (< 0.000059")	1200 nm	0.390625 µm	1200 N (269.1 lb)	—	1200 N (269.1 lb)	(± 30%) 157 N (35.2 lb)	95 mm/s (3.74"/s)	0.000238583 mm/s (0.000009"/s)	0.000238583 mm/s (0.000009"/s)	5 mm (0.197")	0.584 kg (1.285 lbs)
LRT1000HL-BAE53CT10A	1000 mm (39.37")	9.019 kg (19.883 lb)	< 1.5 µm (< 0.000059")	1200 nm	0.390625 µm	1200 N (269.1 lb)	1200 N (269.8 lb)	1200 N (269.1 lb)	(± 30%) 157 N (35.2 lb)	95 mm/s (3.74"/s)	0.000238583 mm/s (0.000009"/s)	0.000238583 mm/s (0.000009"/s)	5 mm (0.197")	0.584 kg (1.285 lbs)
LRT1500AL-AE53CT10A	1500 mm (59.055")	11.028 kg (24.313 lb)	< 1 µm (< 0.000039")	500 nm	0.124023438 µm	1200 N (269.1 lb)	—	1200 N (269.1 lb)	Non-back-driving	13 mm/s (0.512"/s)	0.0000757 mm/s (0.000003"/s)	0.0000757 mm/s (0.000003"/s)	1.5875 mm (0.062")	0.553 kg (1.217 lbs)
LRT1500BL-AE53CT10A	1500 mm (59.055")	11.028 kg (24.313 lb)	< 1.5 µm (< 0.000059")	2000 nm	0.49609375 µm	600 N (134.6 lb)	—	600 N (134.6 lb)	(± 30%) 420 N (94.2 lb)	55 mm/s (2.165"/s)	0.000303 mm/s (0.000012"/s)	0.000303 mm/s (0.000012"/s)	6.35 mm (0.25")	0.553 kg (1.217 lbs)
LRT1500BL-BAE53CT10A	1500 mm (59.055")	11.654 kg (25.693 lb)	< 1.5 µm (< 0.000059")	2000 nm	0.49609375 µm	600 N (134.6 lb)	600 N (134.9 lb)	600 N (134.6 lb)	(± 30%) 420 N (94.2 lb)	55 mm/s (2.165"/s)	0.000303 mm/s (0.000012"/s)	0.000303 mm/s (0.000012"/s)	6.35 mm (0.25")	0.553 kg (1.217 lbs)
LRT1500DL-AE53CT10A	1500 mm (59.055")	11.028 kg (24.313 lb)	< 1.5 µm (< 0.000059")	8000 nm	1.984375 µm	200 N (44.9 lb)	—	180 N (40.4 lb)	(± 30%) 40 N (9 lb)	225 mm/s (8.858"/s)	0.00121 mm/s (0.000048"/s)	0.00121 mm/s (0.000048"/s)	25.4 mm (1")	0.554 kg (1.219 lbs)
LRT1500DL-BAE53CT10A	1500 mm (59.055")	11.654 kg (25.693 lb)	< 1.5 µm (< 0.000059")	8000 nm	1.984375 µm	200 N (44.9 lb)	180 N (40.5 lb)	180 N (40.4 lb)	(± 30%) 40 N (9 lb)	225 mm/s (8.858"/s)	0.00121 mm/s (0.000048"/s)	0.00121 mm/s (0.000048"/s)	25.4 mm (1")	0.554 kg (1.219 lbs)
